051-BB

$4.50

Mini Rocker Switch, 10A SPST Off-Momentary On

SKU: 051-BB Categories: ,

Description

Mini Rocker Switch, 10A SPST Off-Momentary On

Popular sized mini Rocker Switch. Single Pole, Single Throw, Off-Momentary On. Contacts are rated at 10 amp 125 VAC, 6 amp 250 VAC & 12 VDC. Black body and button. 3/16 inch quick connect terminals. Panel cutout is .51 x .77 inches.

Specifications

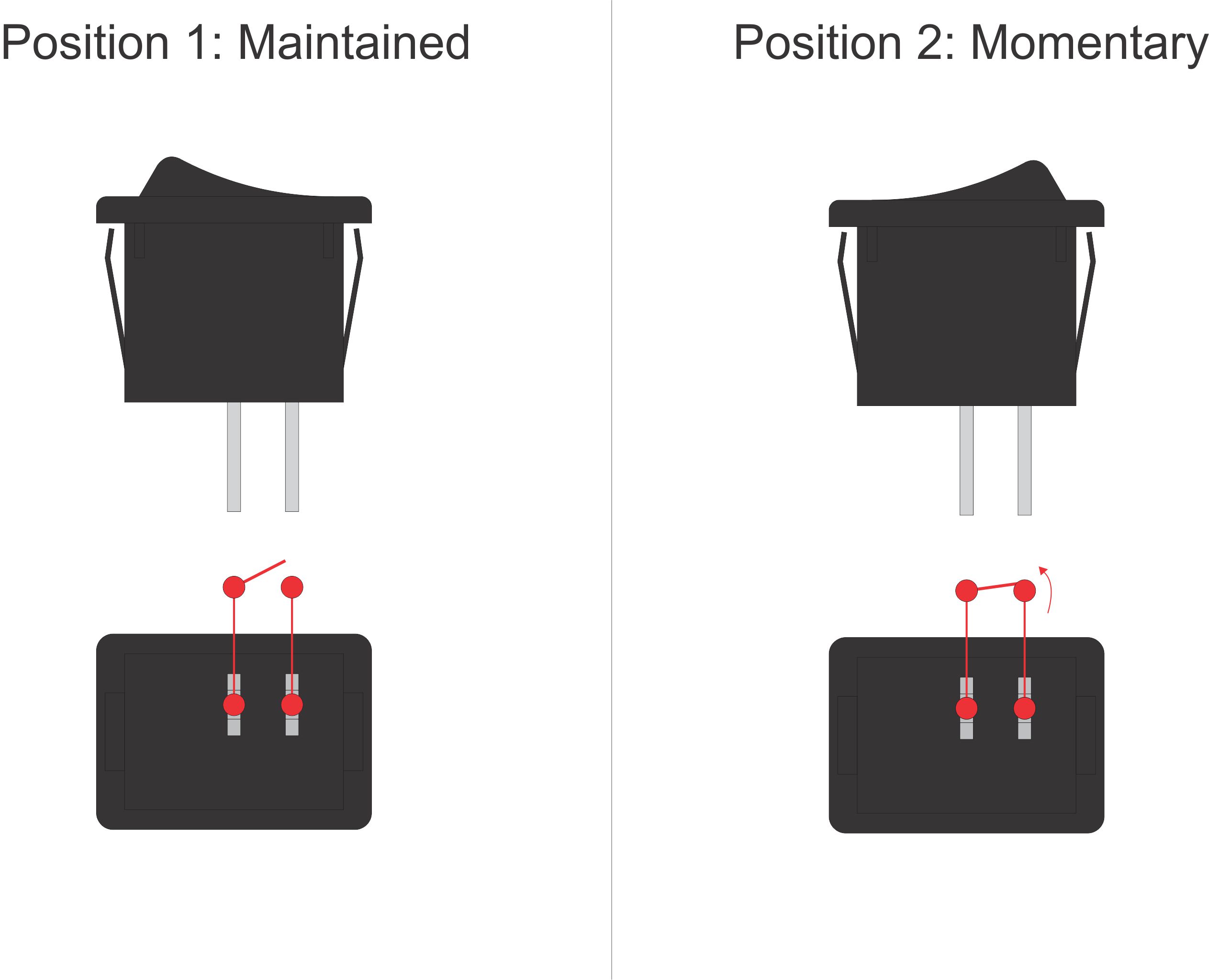

  • SPST Off-Momentary On
  • Rated at 10 amp 125 VAC, 6 amp 250 VAC & 12 VDC.
  • 3/16 inch quick connect terminals
  • Panel cutout is .51 x .77 inches.
  • UL,CSA & CE Approved

Downloads

051-B/B Drawing PDF (171 KB)
051-B/B Wiring Diagram PDF (659 KB)
