129B-BB

$9.95

Rocker Switch, 30 Amp DPDT On-On

SKU: 129B-BB Categories: ,

Description

Rocker Switch, 30 Amp DPDT On-On

Power DPDT On-On Rocker Switch is rated at 30 amp @12VDC, 16 amp @ 120VAC, 10 amp @ 250VAC. This sealed switch is ideal to use on power tools and shop equipment that are exposed to dirt and dust. The contacts are sealed by gaskets to keep out contaminants that cause premature switch failure. This heavy duty switch mounts in a .83 x 1.48 inch hole and it has 1/4 quick connect terminals. Black body and button.

Specifications

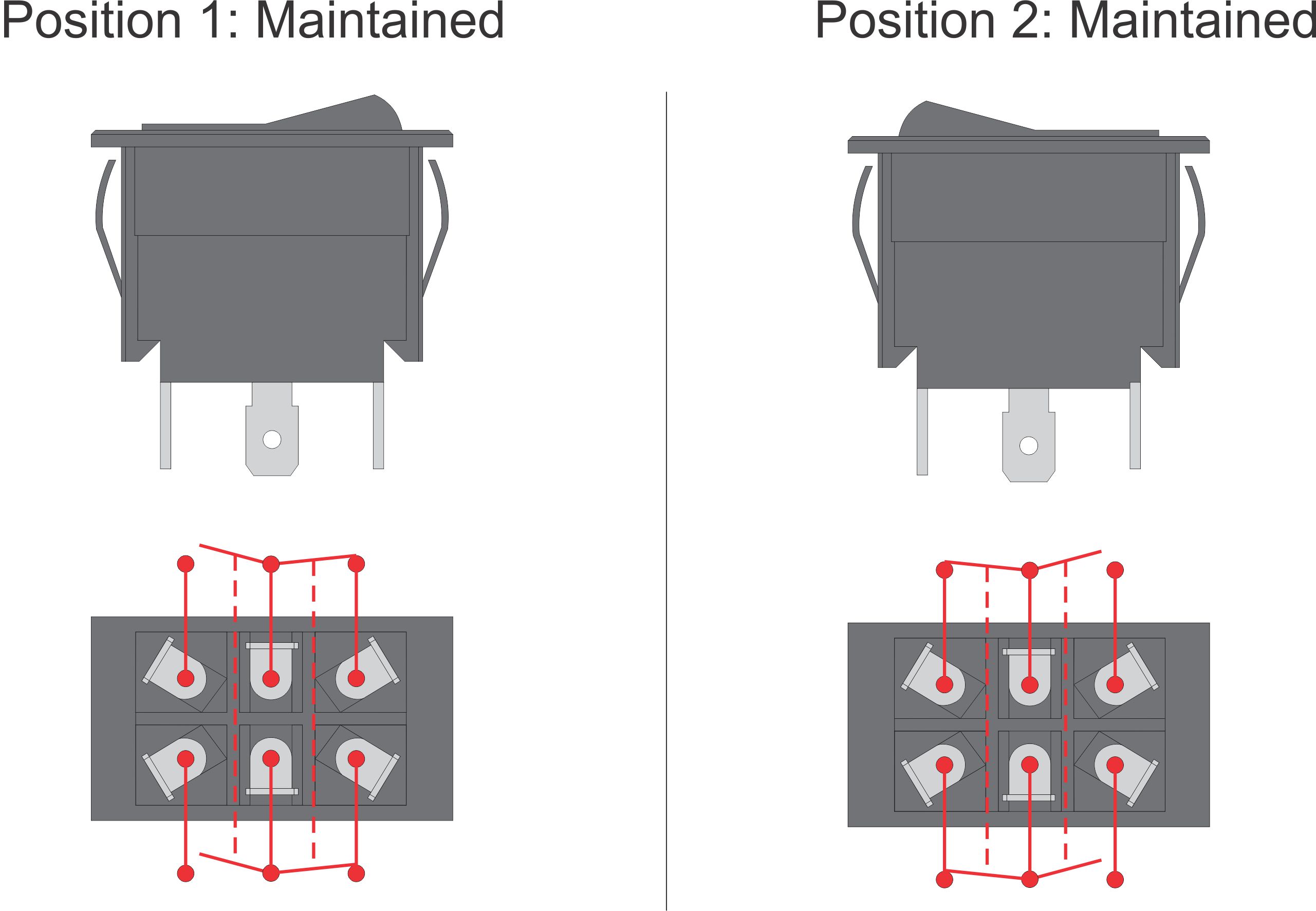

  • DPDT On-On
  • Rated at 30 amp @12VDC, 16 amp @ 120VAC, 10 amp @ 250VAC.
  • Internal gasket keeps water & dust out of contacts
  • .83 x 1.48 inch mounting hole.
  • 1/4″ quick connect terminals.

Downloads

129B-B/B Drawing PDF (174 KB)
