238D-BB

$4.95

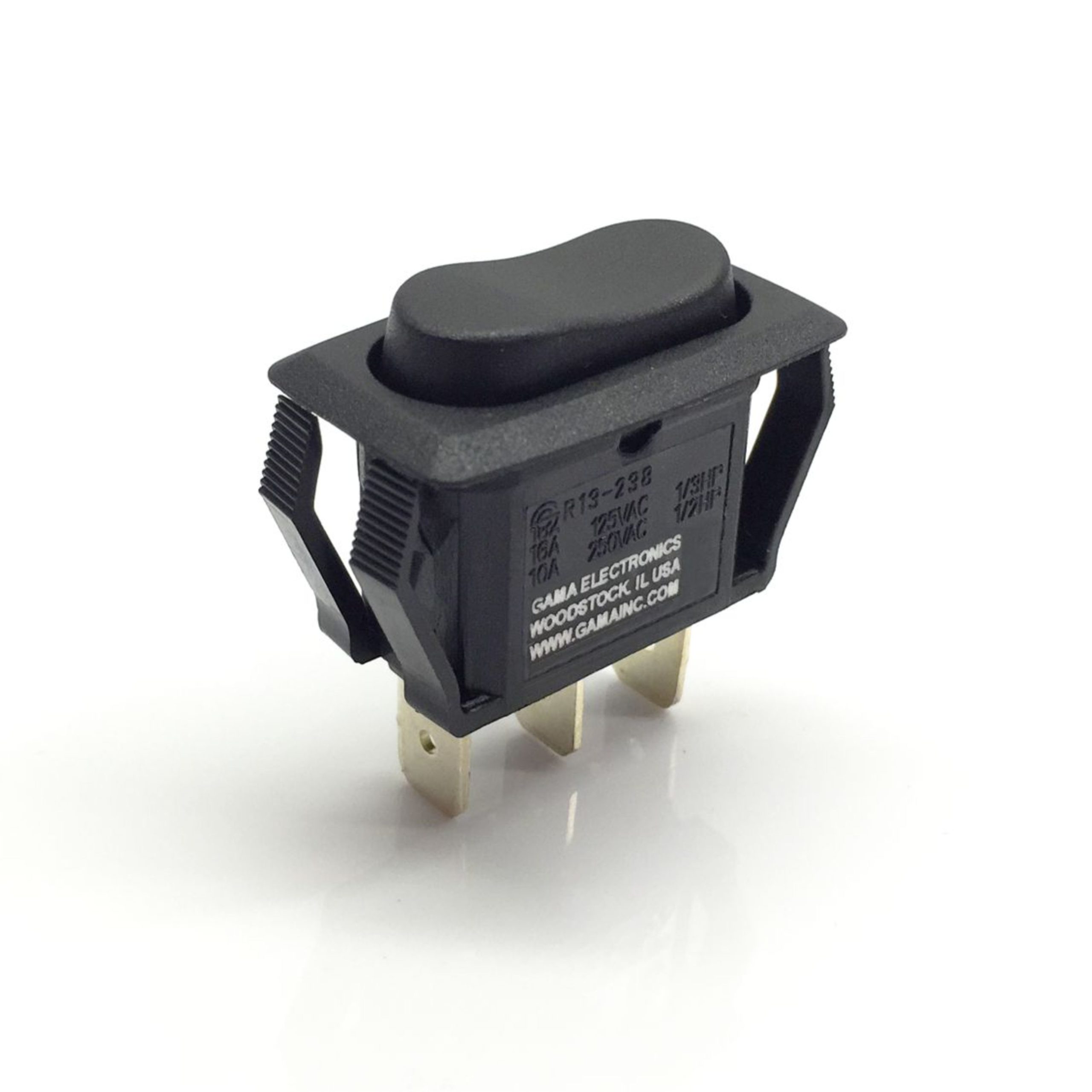

Rocker Switch, SPDT On-Off-On

SKU: 238D-BB Categories: ,

Description

Rocker Switch, SPDT On-Off-On

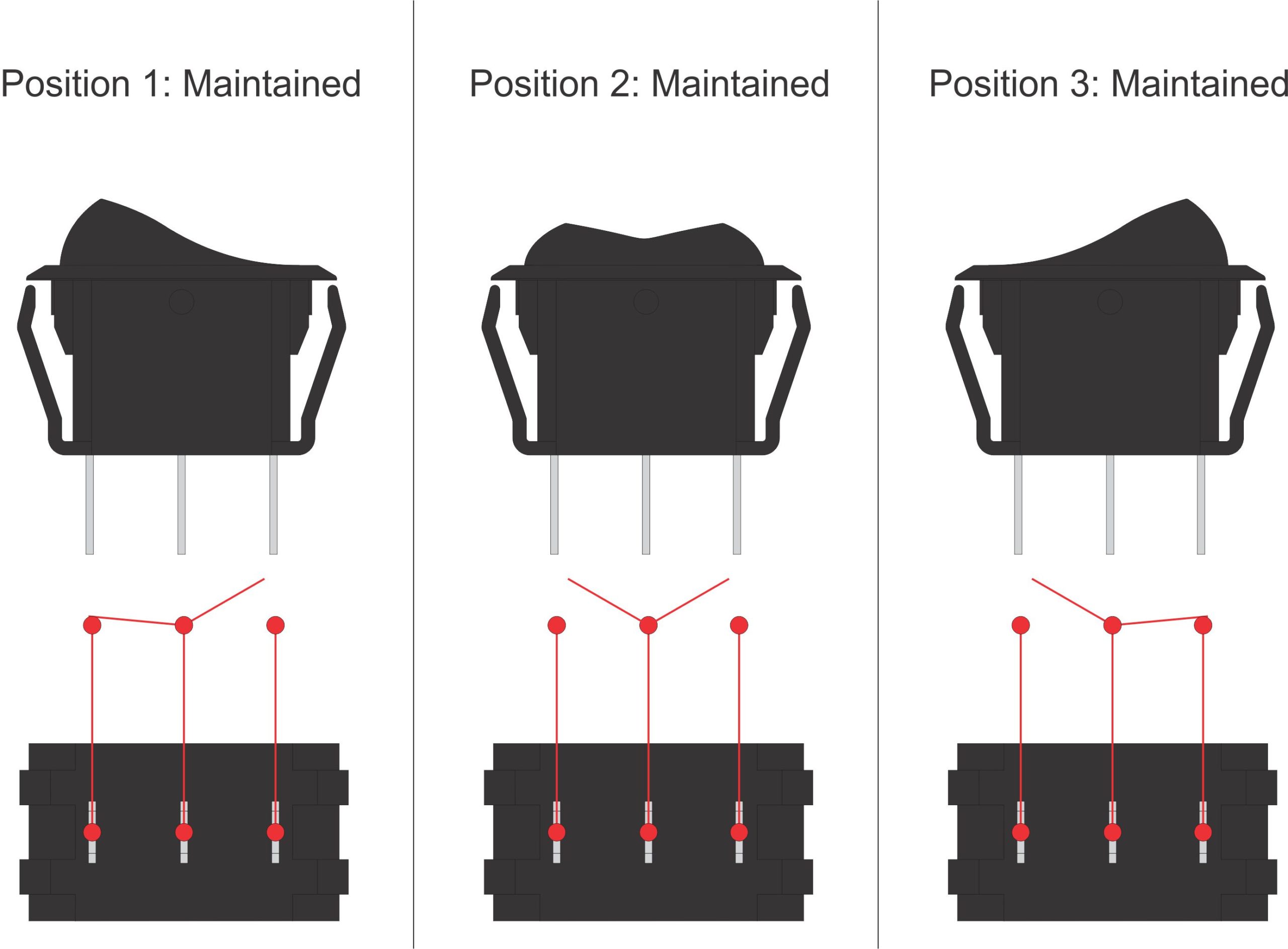

Popular sized Rocker Switch. Single Pole, Double Throw, On-Off-On. This 3 position switch is maintained or locking so it stays in position when the button is released. Contacts are rated at 16 amp 125 VAC, 10 amp 250 VAC & 12VDC. Black body and button. 1/4 inch quick connect terminals. Panel cutout is .55 x 1.125 inches.

A full series of illuminated and non-illuminated switches of this size are available in our store.

Specifications

  • SPDT On-Off-On
  • Rated at 16 amp 125 VAC, 10 amp 250 VAC & 12VDC.
  • Panel cutout is .55 x 1.125
  • 1/4″ Quick Connect Terminals
  • UL,CSA & CE Approved

Downloads

238D-B/B Drawing PDF (144 KB)
