23F-BB

$4.50

Mini Rocker Switch, 10A SPDT 3-Position On-Off-Momentary On

SKU: 23F-BB Categories: ,

Description

Mini Rocker Switch, 10A SPDT 3-Position On-Off-Momentary On

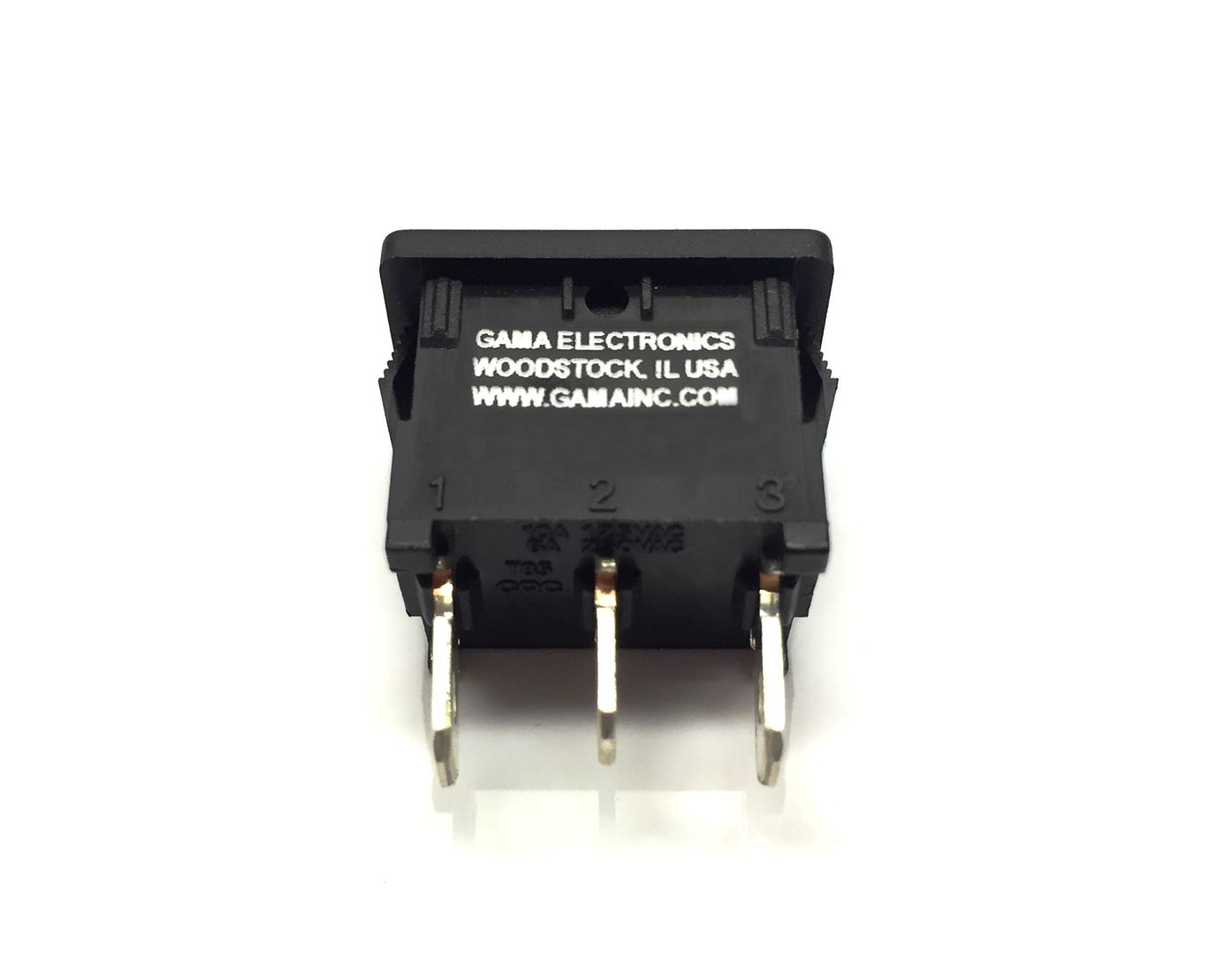

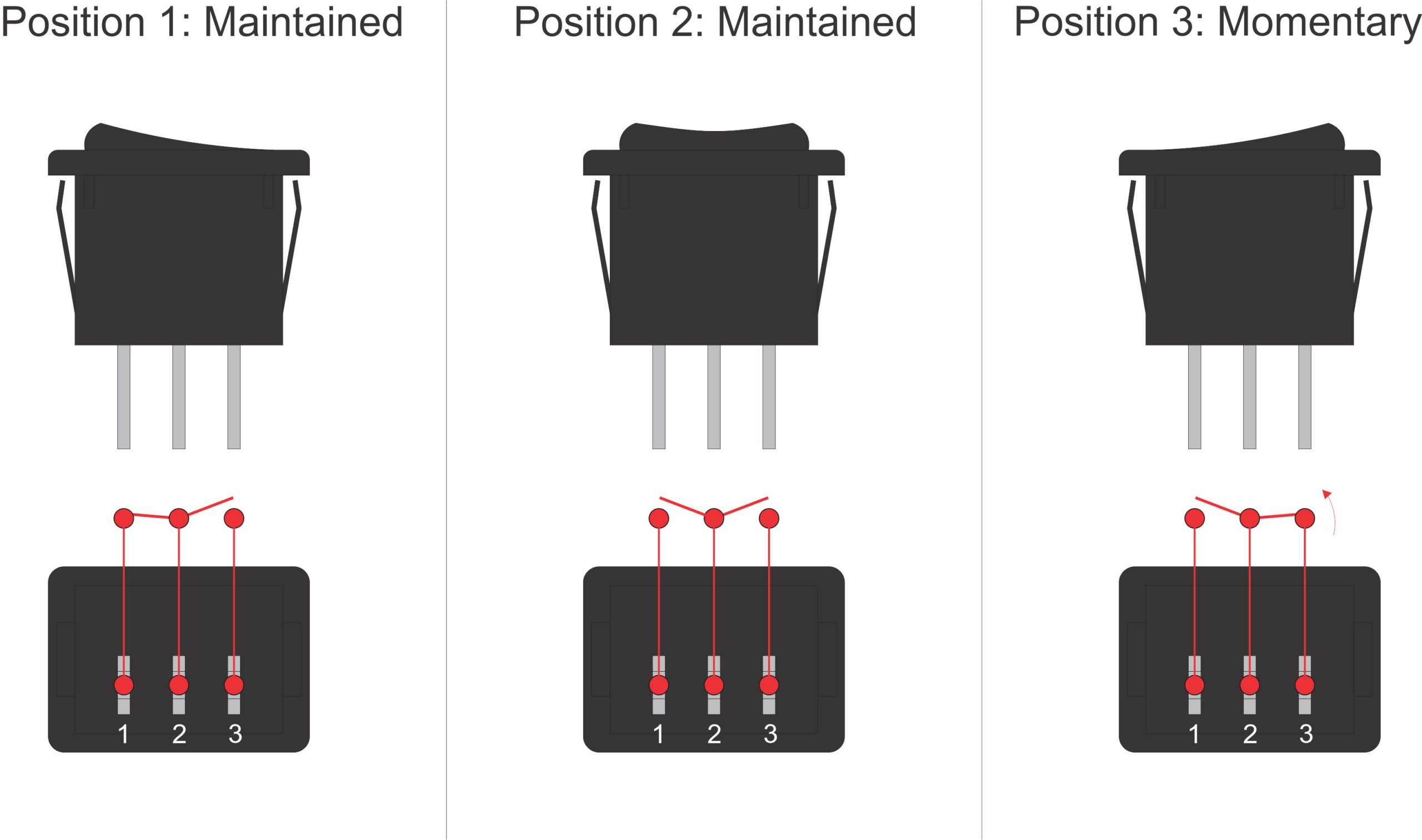

Popular sized mini Rocker Switch. Single Pole, Double Throw, On-Off-Momentary On. This switch is maintained or locking in one direction and is momentary or spring return to center in the other direction. Contacts are rated at 10 amp 125 VAC, 6 amp 250 VAC & 12 VDC. Black body and button. 3/16 inch quick connect terminals. Panel cutout is .51 x .77 inches.

Specifications

  • SPDT On-Off-Momentary On
  • Rated at 10 amp 125 VAC, 6 amp 250 VAC & 12 VDC.
  • 3/16 inch quick connect terminals
  • Panel cutout is .51 x .77 inches.
  • Ul,CSA & CE Approved

Downloads

23F-BB Drawing PDF (171 KB)
23F-B/B Wiring Diagram PDF (661 KB)
