23G-BR-12V

$5.95

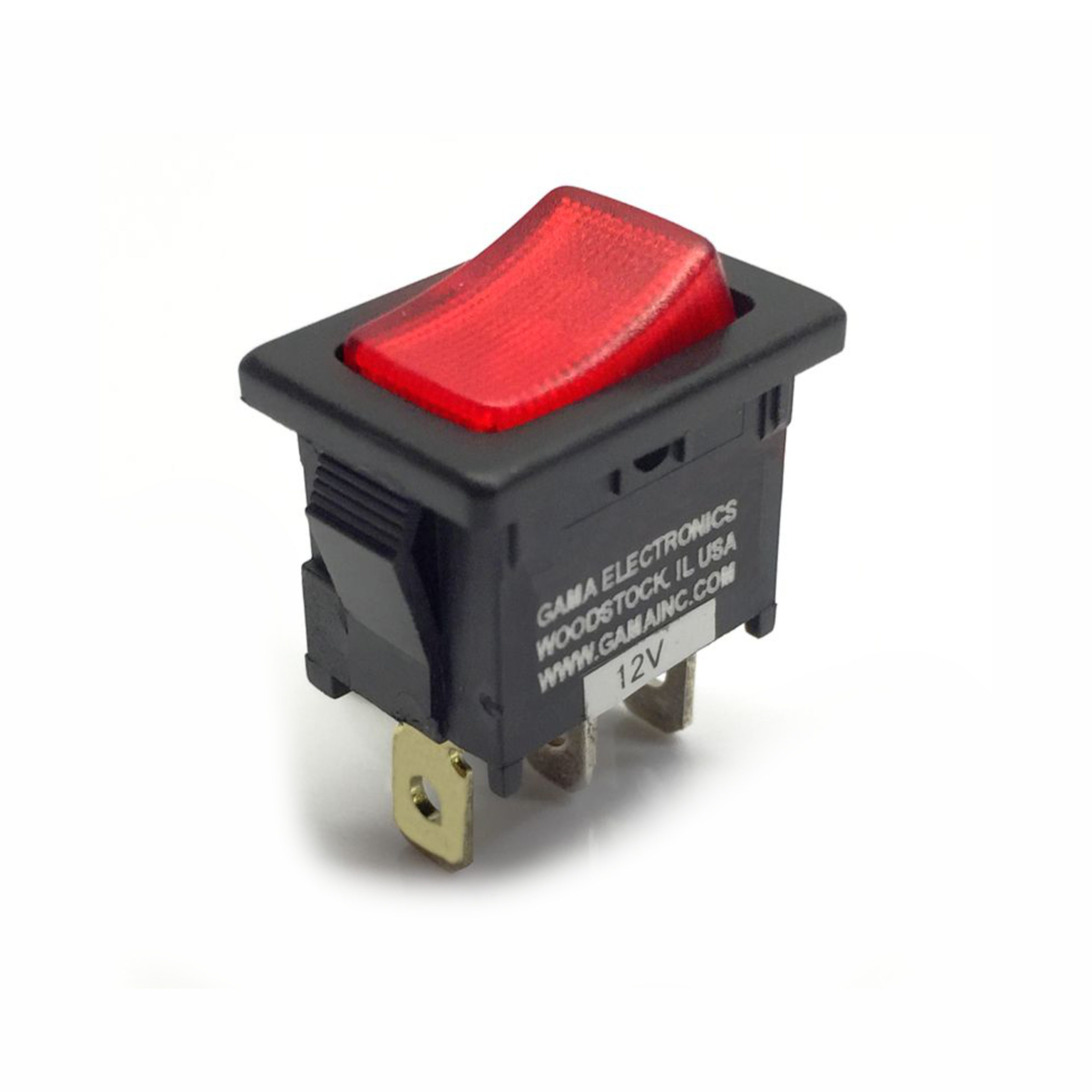

Mini Rocker Switch, Illuminated Off-On 12VDC – Red

SKU: 23G-BR-12V Categories: , Tag:

Description

Mini Rocker Switch, Illuminated Off-On 12VDC – Red

Popular sized illuminated mini Rocker Switch. Single Pole, Single Throw, Off-On. Contacts are rated for 16A at 12 VDC. Black body and red button. Lamp will operate at 12VDC. 3/16 inch quick connect terminals. Panel cutout is .51 x .77 inches.

Specifications

  • SPST Off-On Illuminated
  • Rated at 16A 12VDC
  • LED Illumination operates at 12VDC
  • 3/16 inch quick connect terminals.
  • Panel cutout is .51 x .77 inches
  • UL,CSA & CE Approved

Downloads

23G-BR-12V Drawing PDF (172 KB)
23G-B/R-12V Wiring Diagram PDF (660 KB)
