23LED-BLUE

$5.95

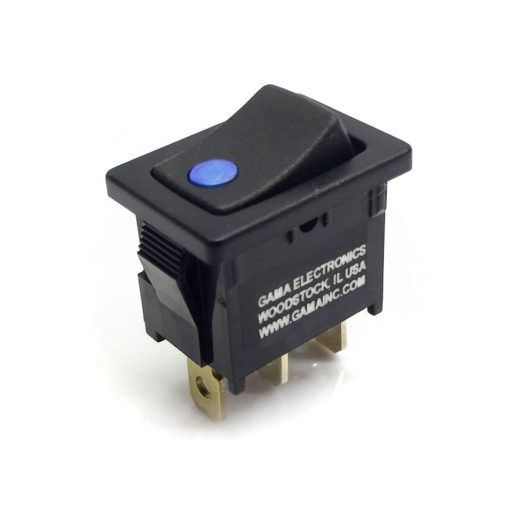

Mini Rocker Switch, 10A Illuminated SPST Off-On with 12V Blue LED

SKU: 23LED-BLUE Categories: ,

Description

Mini Rocker Switch, 10A Illuminated SPST Off-On with 12V Blue LED

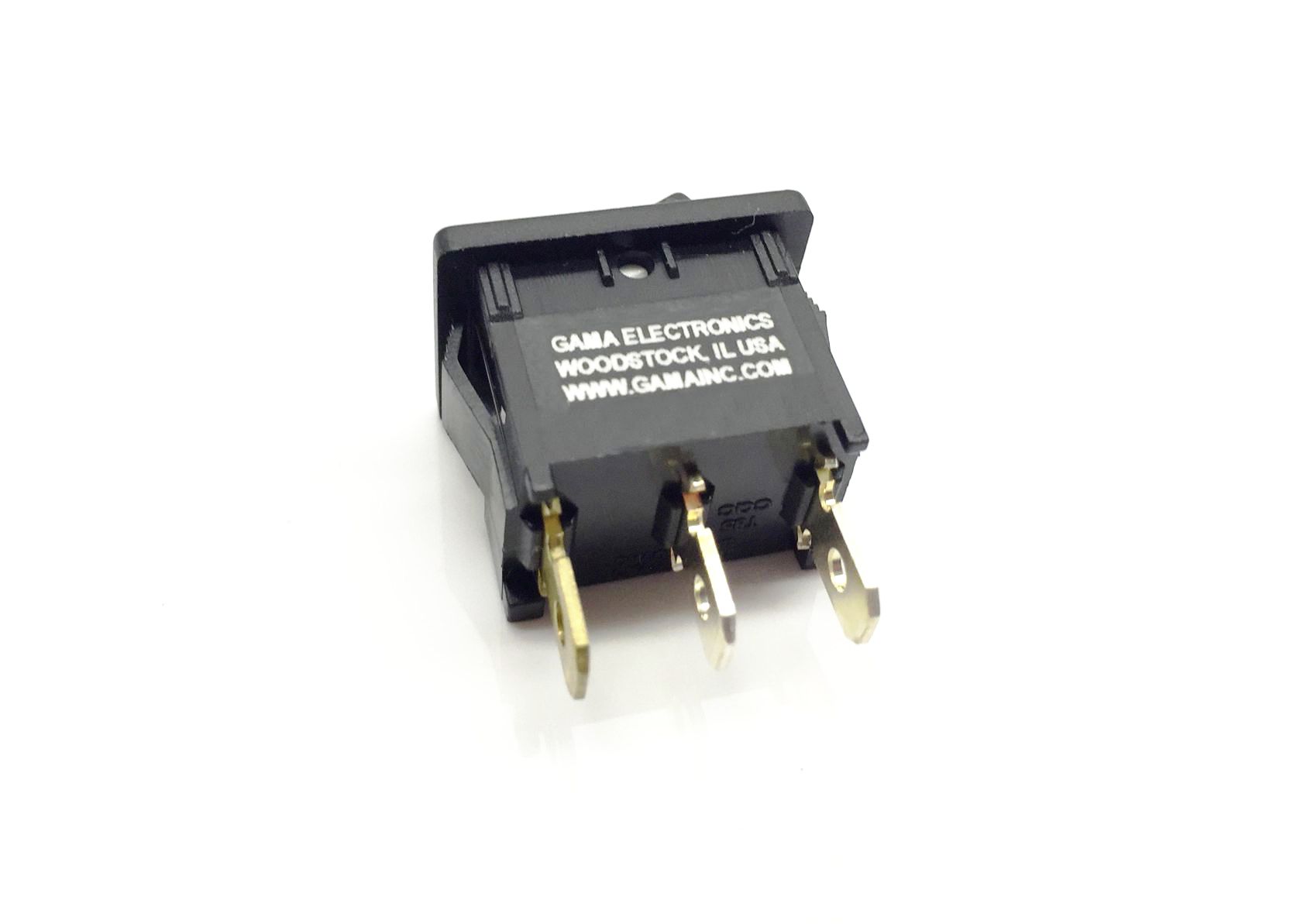

Popular sized mini Rocker Switch. Single Pole, Single Throw, Off-On. The switch has blue 12 volt point illumination in the button. Contacts are rated at 6 amp @ 12 VDC. Black body and button. 3/16 inch quick connect terminals. Panel cutout is .51 x .77 inches.

Similar switches with red, amber and green LED illumination are also available.

Downloads

23LED-Blue Drawing PDF (169 KB)

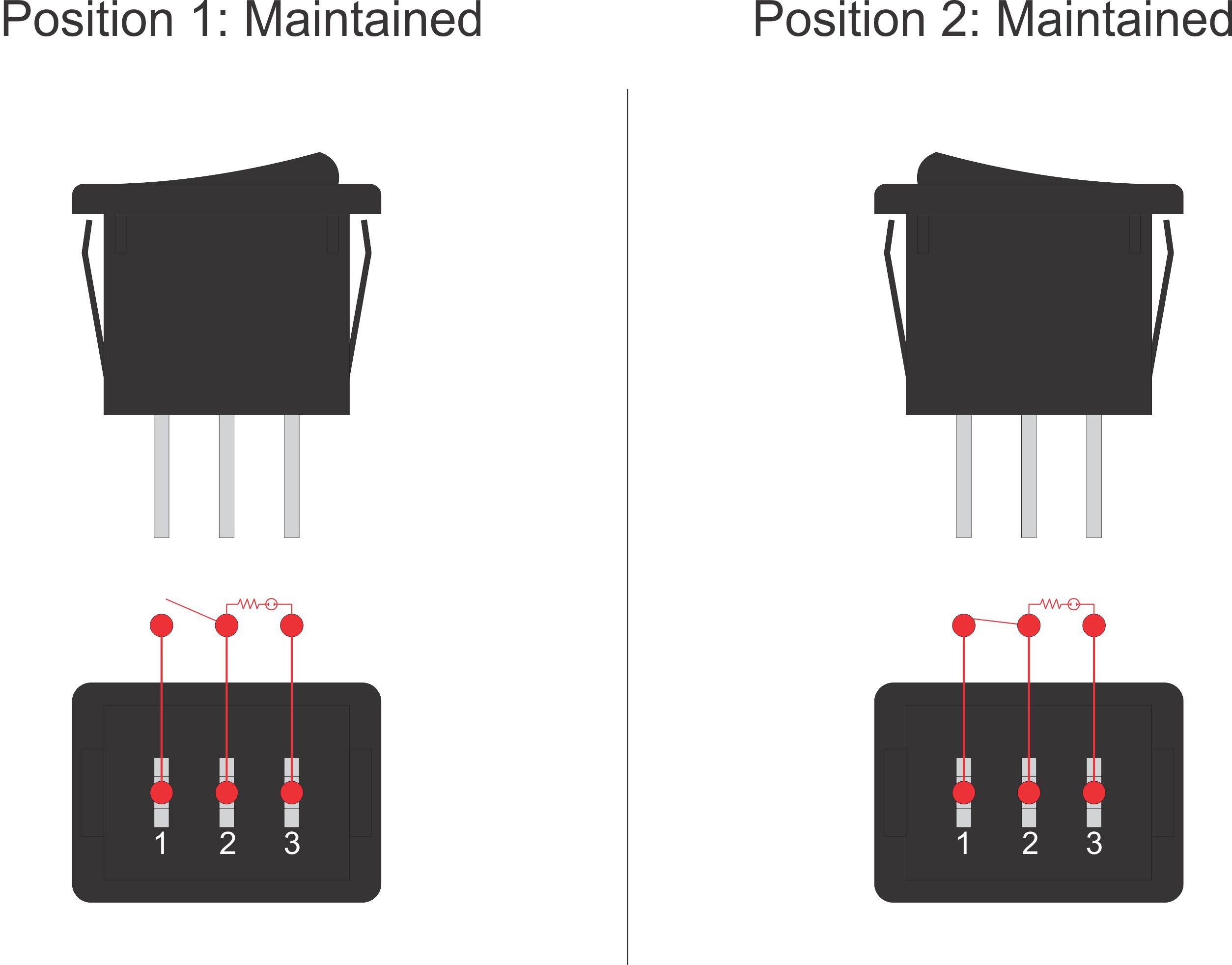

23LED-Blue Wiring Diagram PDF (660 KB)
