23LED-GREEN

$5.95

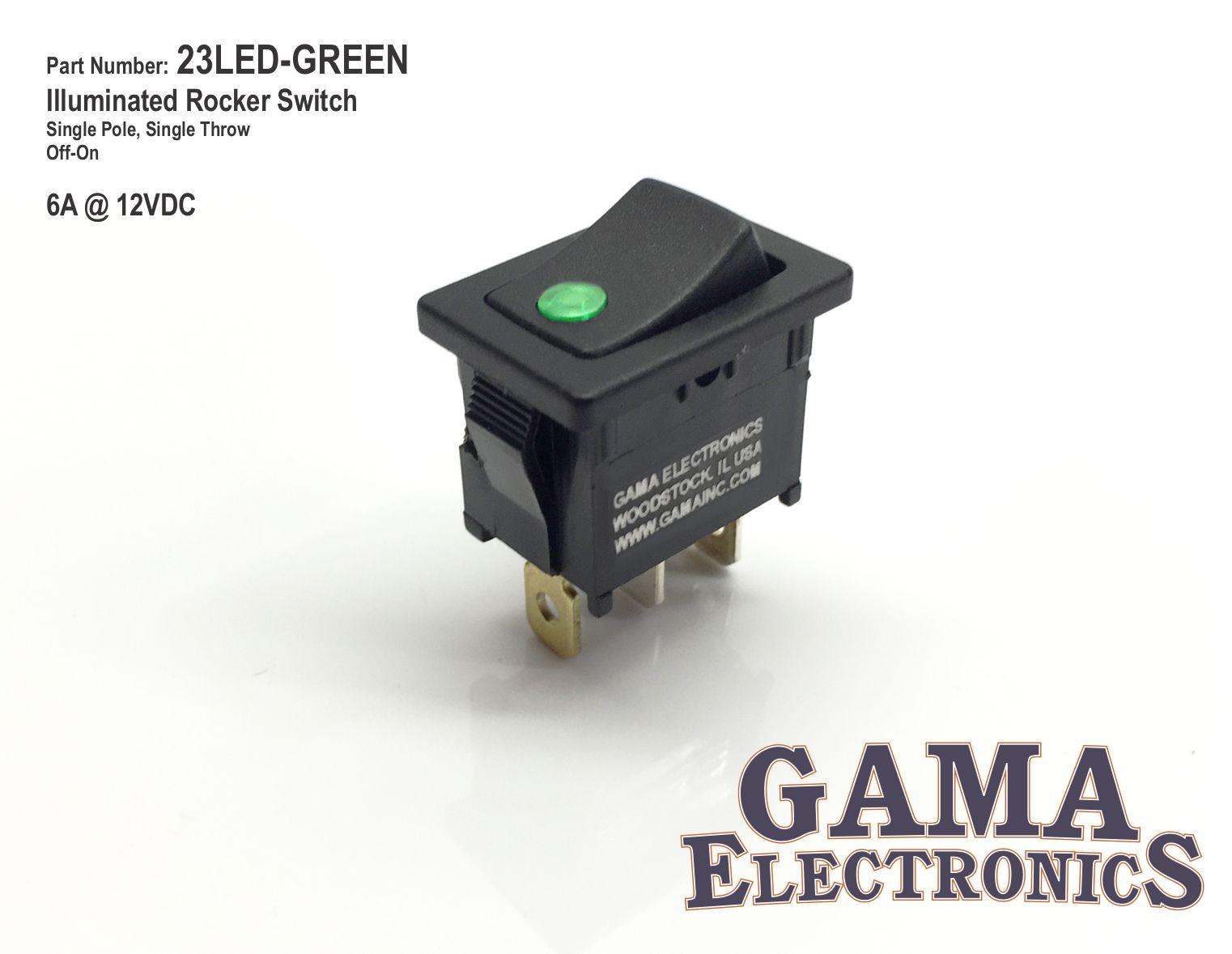

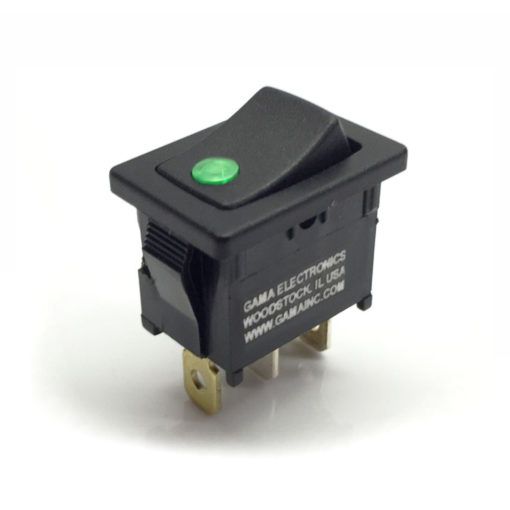

Mini Rocker Switch, 10A Illuminated SPST Off-On with 12V Green LED

SKU: 23LED-GREEN Categories: ,

Description

Mini Rocker Switch, 10A Illuminated SPST Off-On with 12V Green LED

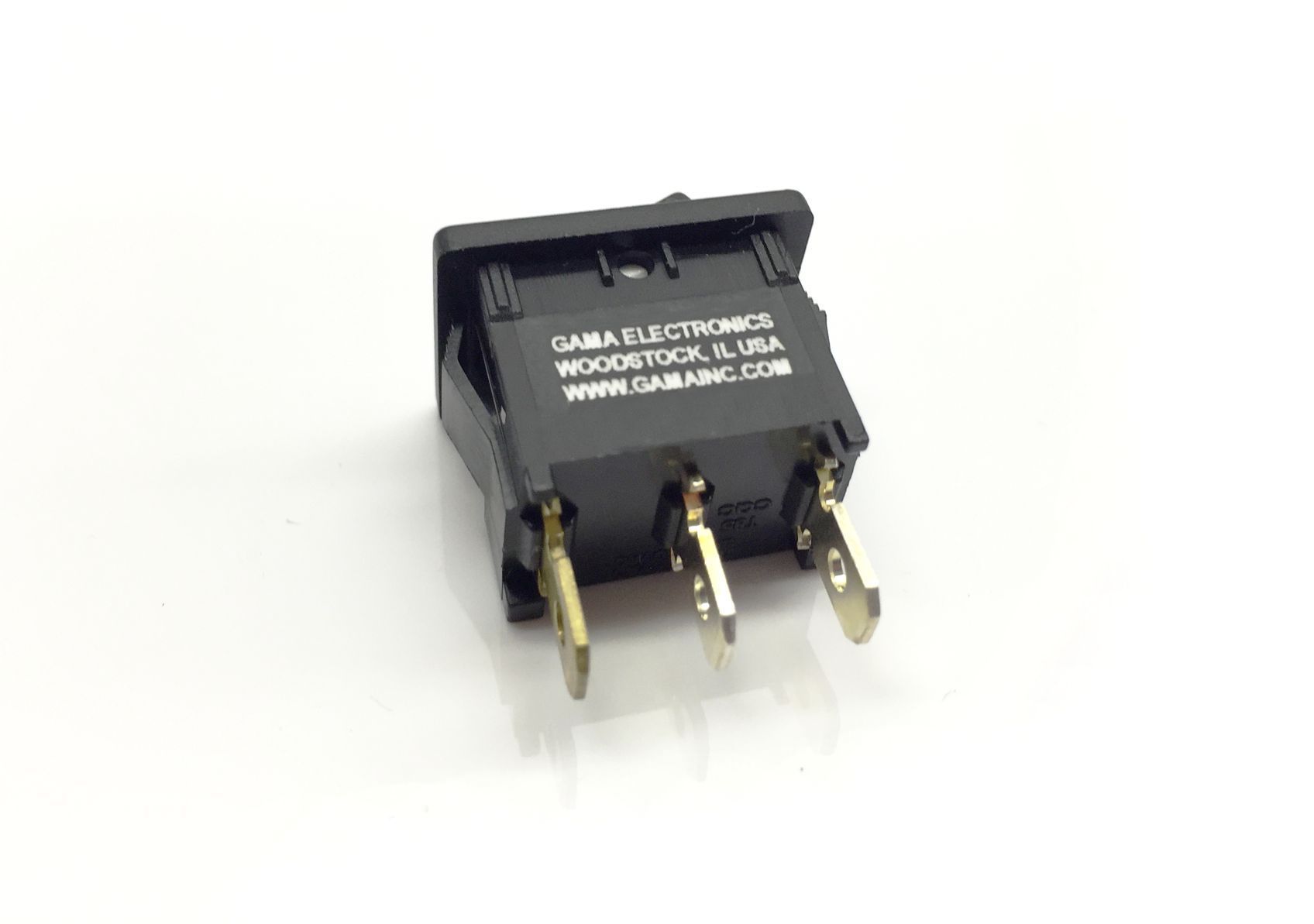

Popular sized mini Rocker Switch. Single Pole, Single Throw, Off-On. The switch has a green 12 volt LED in the button. Contacts are rated at 6 amp @ 12 VDC. Black body and button. 3/16 inch quick connect terminals. Panel cutout is .51 x .77 inches.

Similar switches with red, amber and blue illumination are also available.

Downloads

23LED-Green Drawing PDF (170 KB)

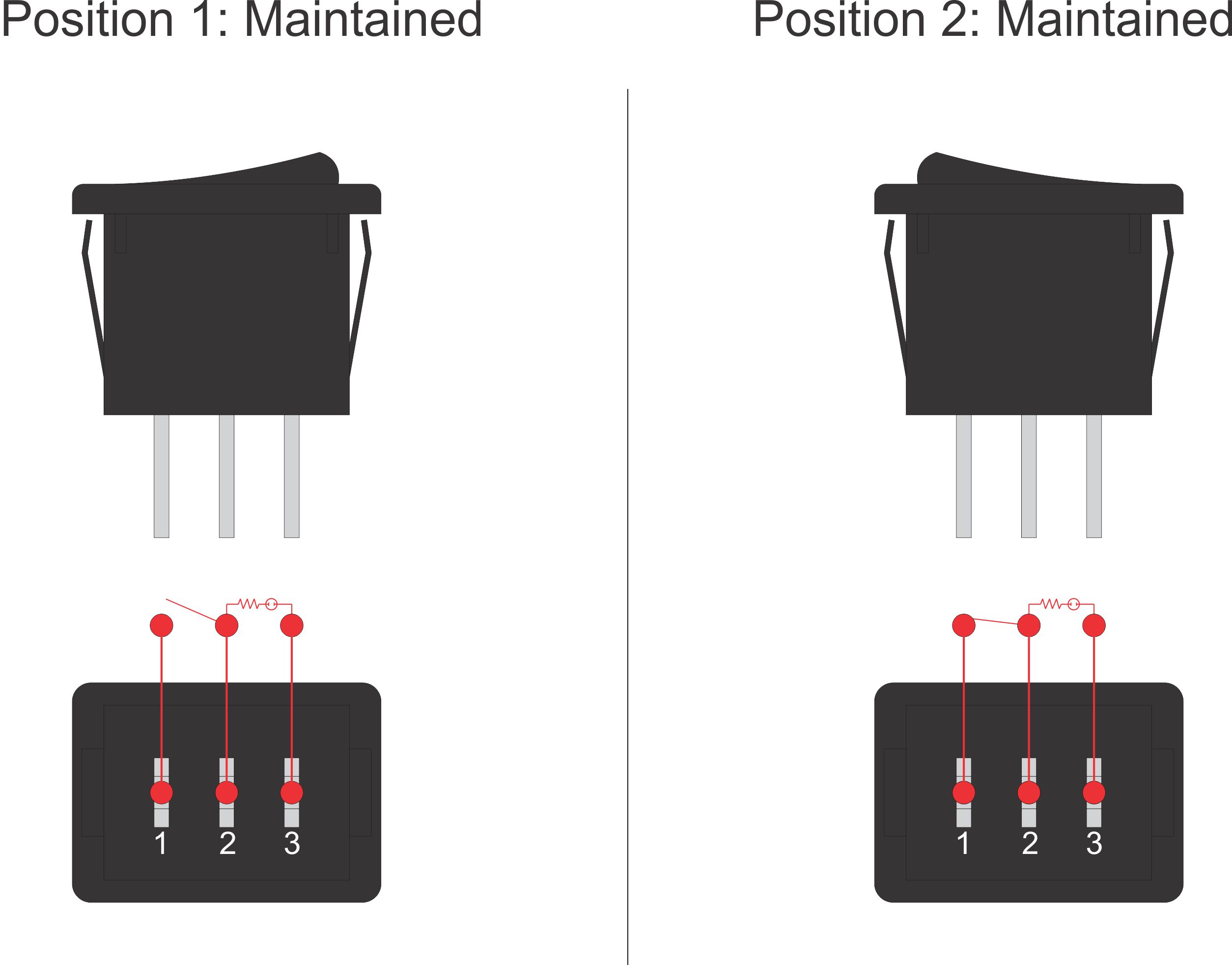

23LED-Green Wiring Diagram PDF (660 KB)
