23LED-RED

$5.95

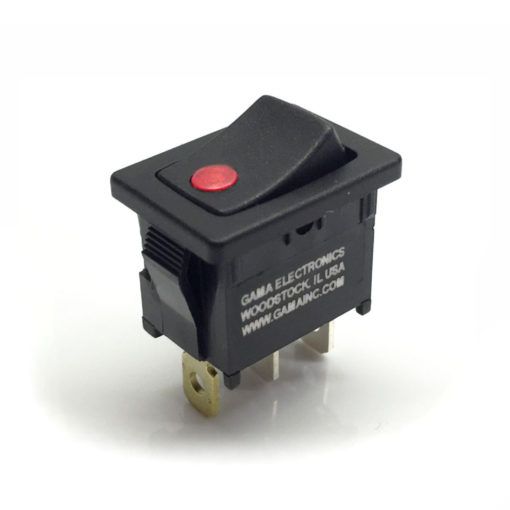

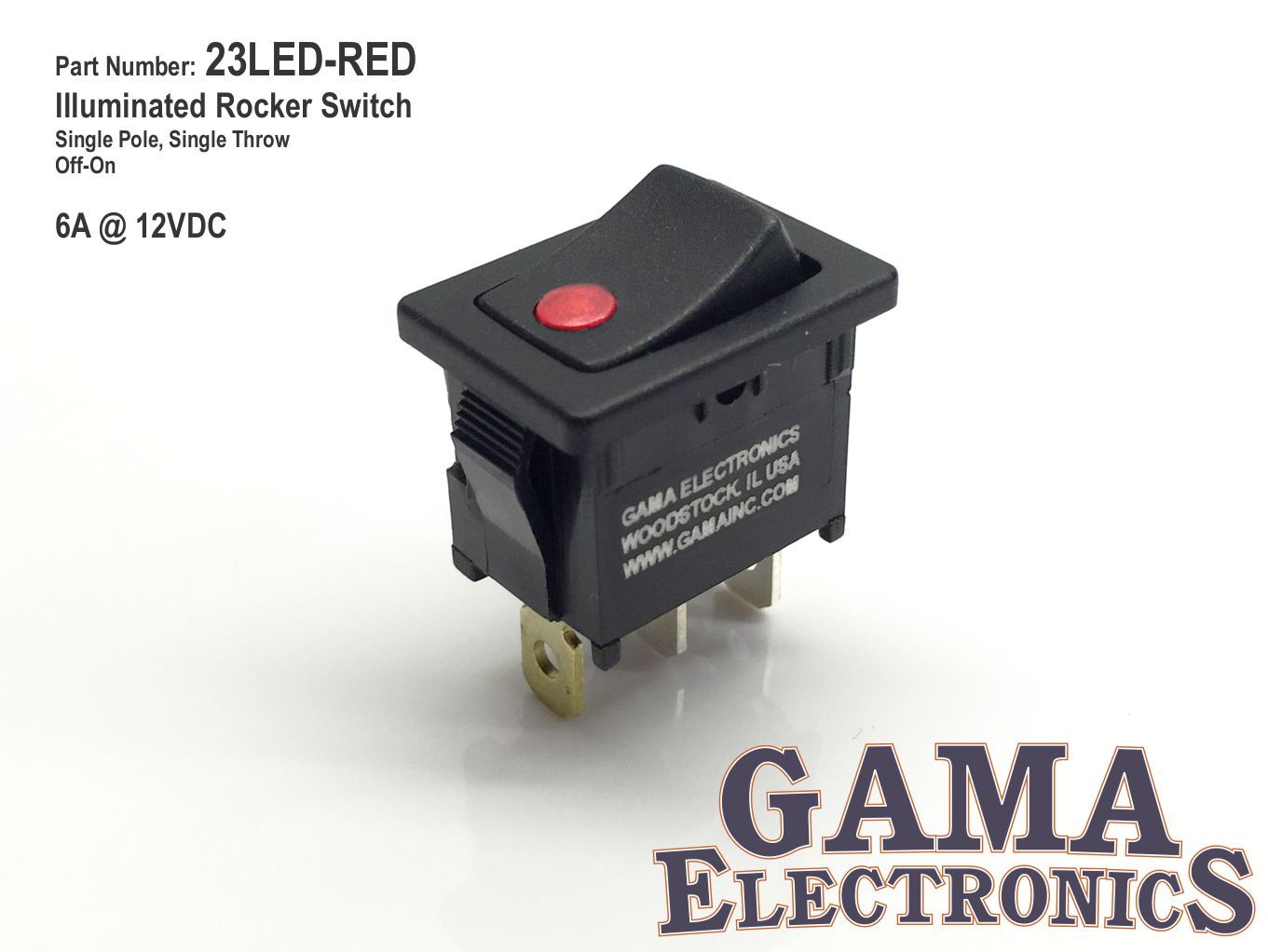

Mini Rocker Switch, 10A Illuminated SPST Off-On with 12V Red LED

SKU: 23LED-RED Categories: ,

Description

Mini Rocker Switch, 10A Illuminated SPST Off-On with 12V Red LED

Popular sized mini Rocker Switch. Single Pole, Single Throw, Off-On. The switch has a red 12 volt LED in the button. Contacts are rated at 6 amp @ 12 VDC. Black body and button. 3/16 inch quick connect terminals. Panel cutout is .51 x .77 inches.

Similar switches with green and blue illumination are also available.

Downloads

23LED-Red Drawing PDF (169 KB)

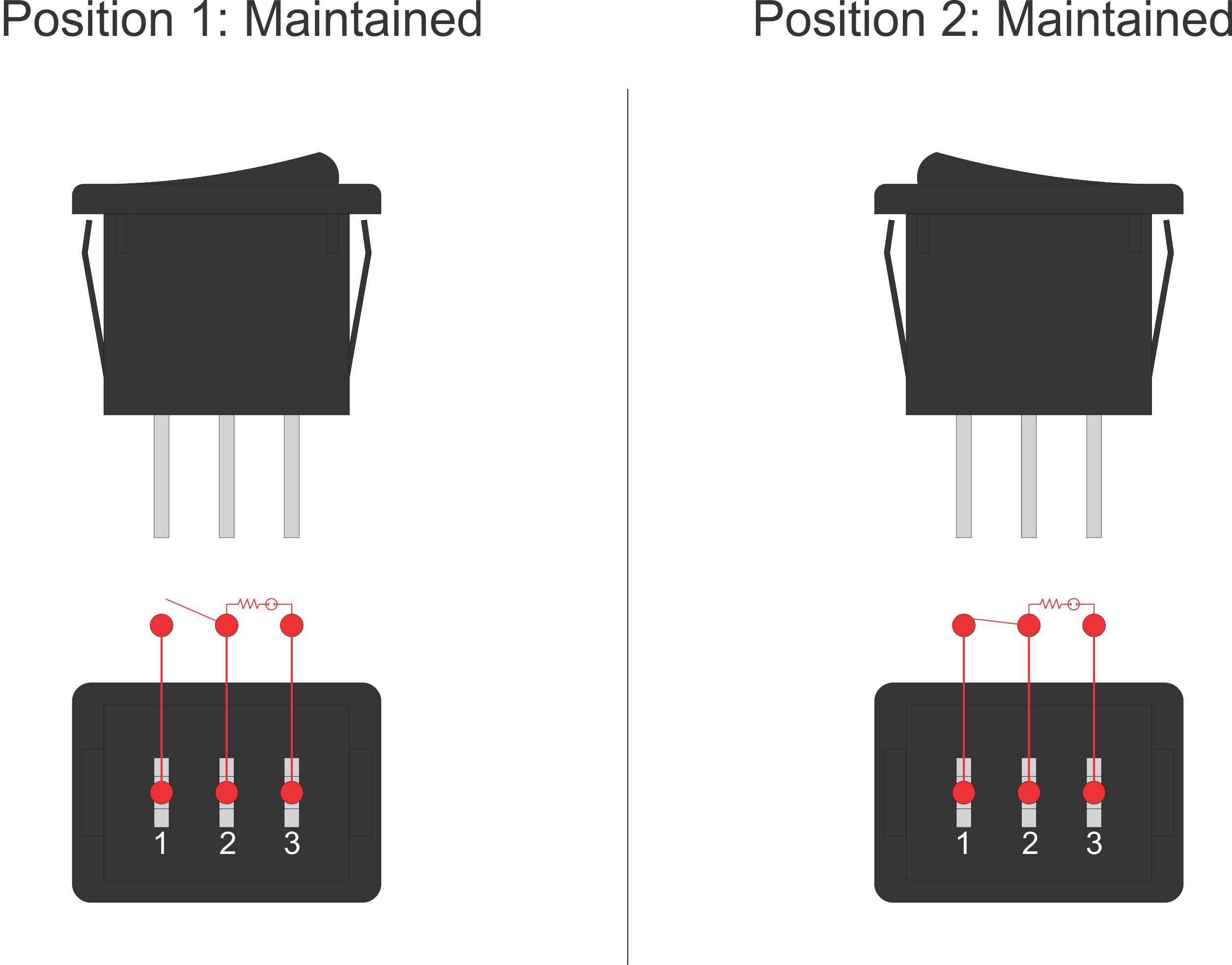

23LED-RED Wiring Diagram PDF (661 KB)
