232E3-BB

$14.95

Waterproof Rocker Switch, 30 Amp Illuminated DPDT 3-Position On-Off-On

Description

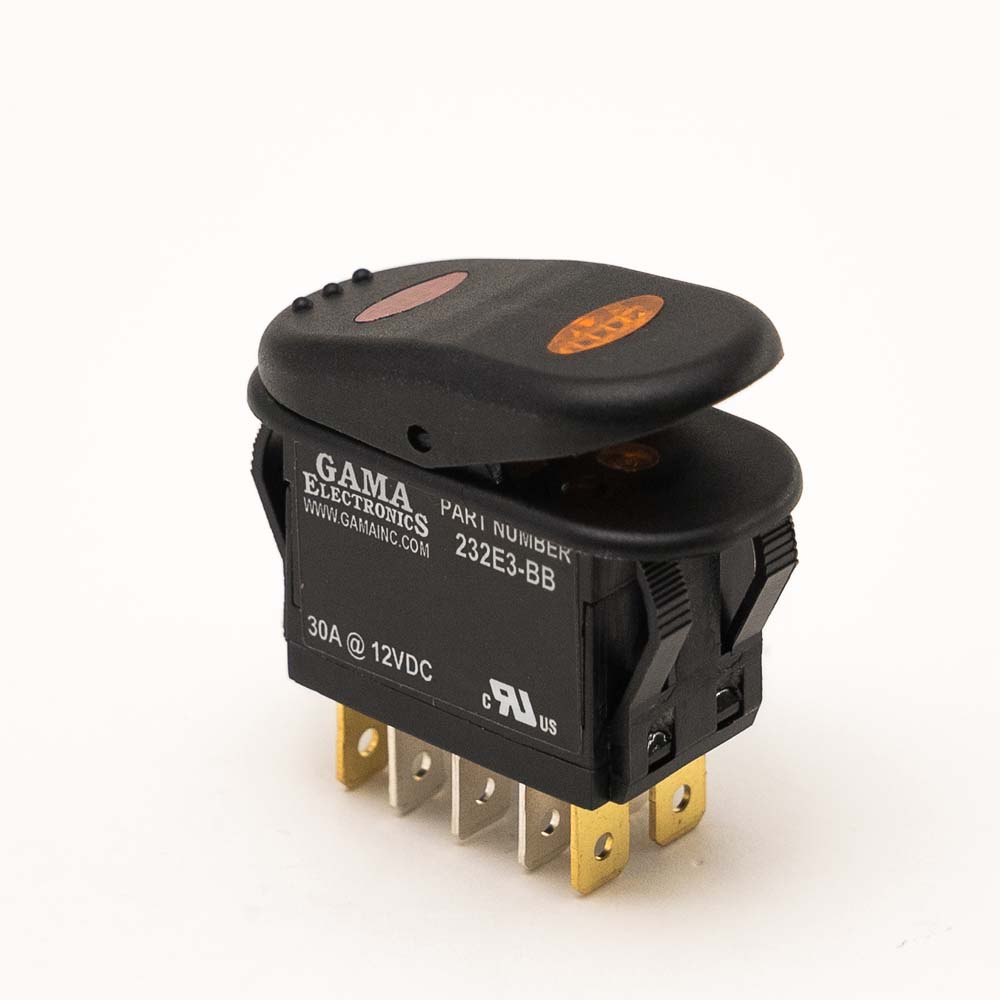

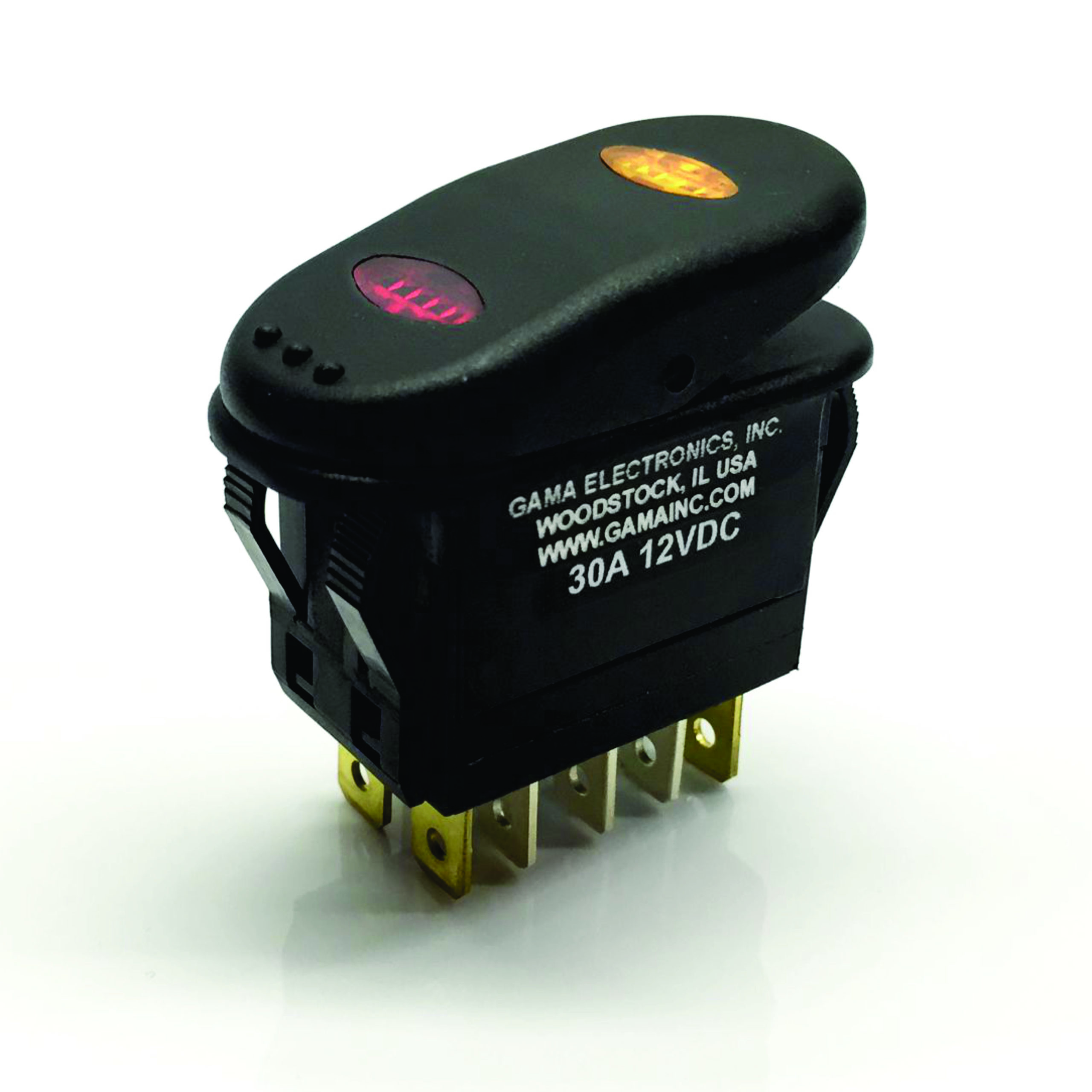

Waterproof Rocker Switch, 30 Amp Illuminated DPDT 3-Position On-Off-On

Double pole, double throw 3 Position On-Off-On Rocker Switch. This waterproof, 10 terminal switch has two illuminated windows and provides 12 volt independent illumination. We have extensively tested this switch under harsh outdoor conditions and it performs very well. This heavy duty switch mounts in a .82 x 1.44 inch hole and it has 1/4 quick connect terminals. Internal gaskets and o-rings keep water & dust out of the contacts. Black body and button with one red and one amber lens. Rated at 30A @ 12VDC, 18A @ 125VAC, 10A @ 250VAC.

Specifications

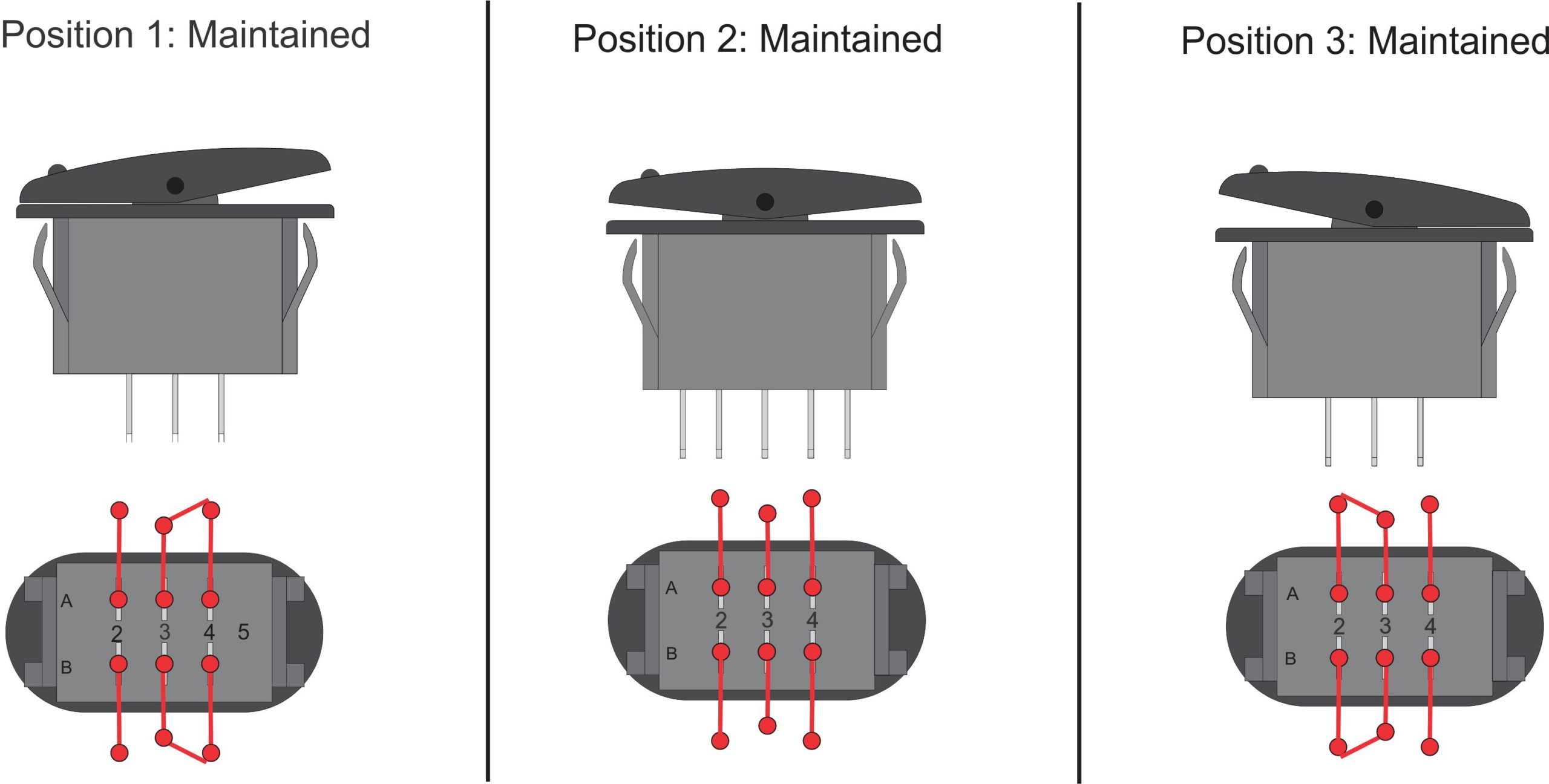

  • DPDT On-Off-On
  • Rated at 30A @ 12VDC, 18A @ 125VAC, 10A @ 250VAC.
  • Panel Cutout: .82″ x 1.44″
  • Waterproof to IP66
  • UL,CSA & CE Approved

Downloads

232E3-B/B Drawing PDF (184 KB)
232E3-B/B Wiring Detail PDF (17 KB)
