232M1-BB

Waterproof Rocker Switch, 30 Amp DPDT 3-Position On-Off-Momentary On

Waterproof Rocker Switch, 30 Amp DPDT 3-Position On-Off-Momentary On

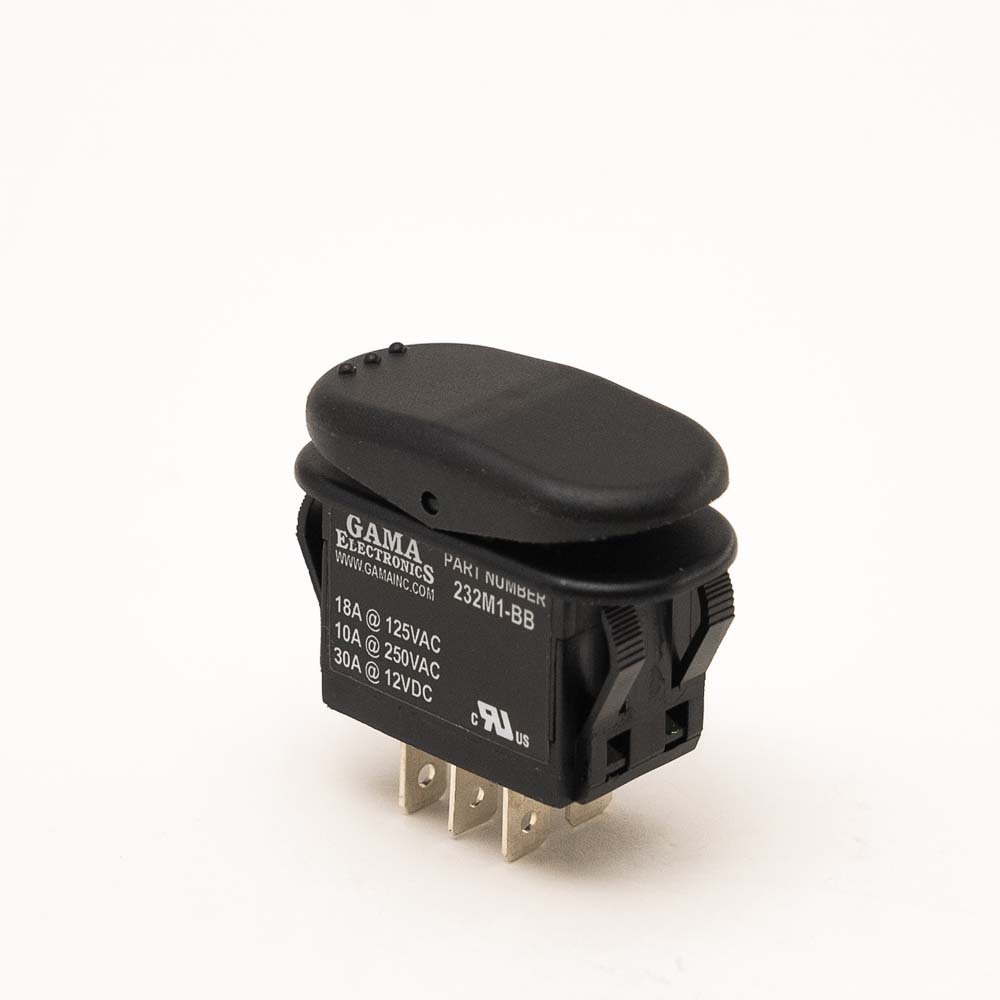

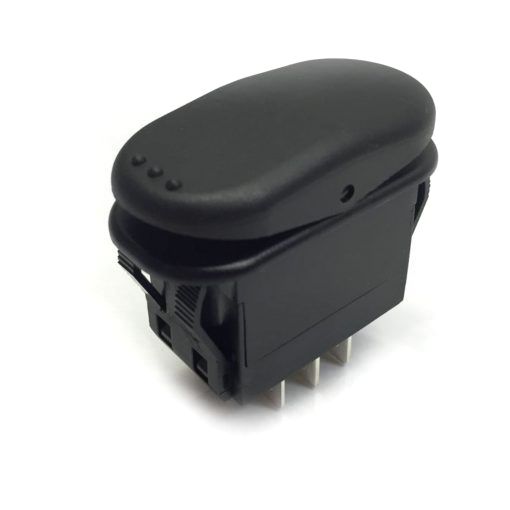

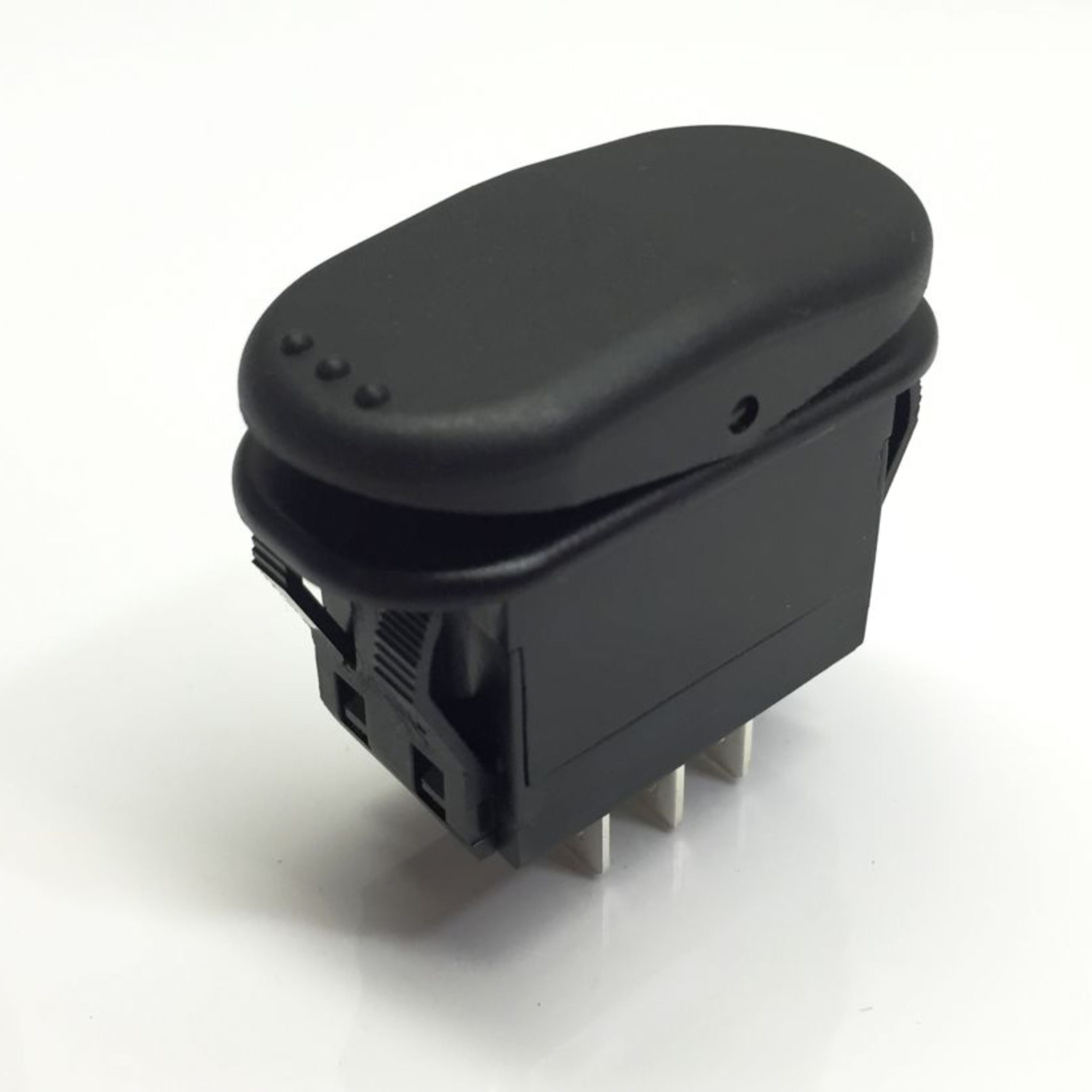

Double pole, double throw 3 Position On-Off-Momentary On Rocker Switch. This switch is maintained or locking in one direction, center off and momentary in the other direction. We have extensively tested this switch under harsh outdoor conditions and it performs very well. This heavy duty switch mounts in a .82 x 1.44 inch hole and it has 1/4 quick connect terminals. Internal gaskets and o-rings keep water & dust out of the contacts. Black body and button. Rated at 30A @ 12VDC, 18A @ 125VAC, 10A @ 250VAC.

Specifications

  • DPDT On-Off-Momentary On
  • Rated at 30A @ 12VDC, 18A @ 125VAC, 10A @ 250VAC.
  • Panel Cutout: .82″ x 1.44″
  • Waterproof to IP66
  • UL,CSA & CE Approved
Weight 1 oz
Switch Type

,

Downloads

232M1-BB (Standard Model) Drawing PDF (702 KB)
P12001-3-M1 (Sealed Enclosure Model) Drawing PDF (657 KB)

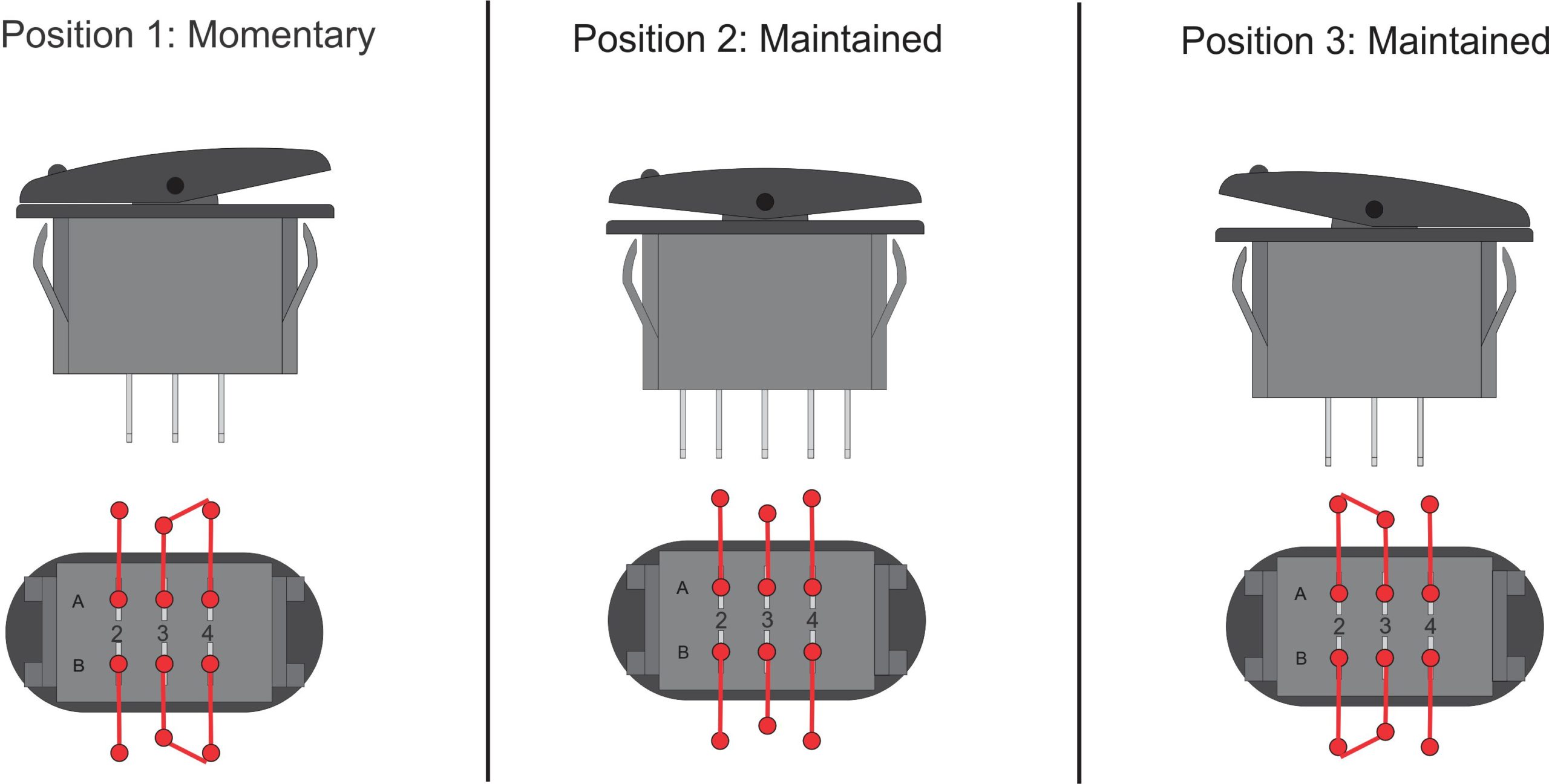

232M1-BB Wiring Diagram PDF (658 KB)
