66B8W

$7.95$19.95

Waterproof Mini Rocker Switch, Red Illuminated SPST Off-On

Clear

Description

Waterproof Mini Rocker Switch, Red Illuminated SPST Off-On

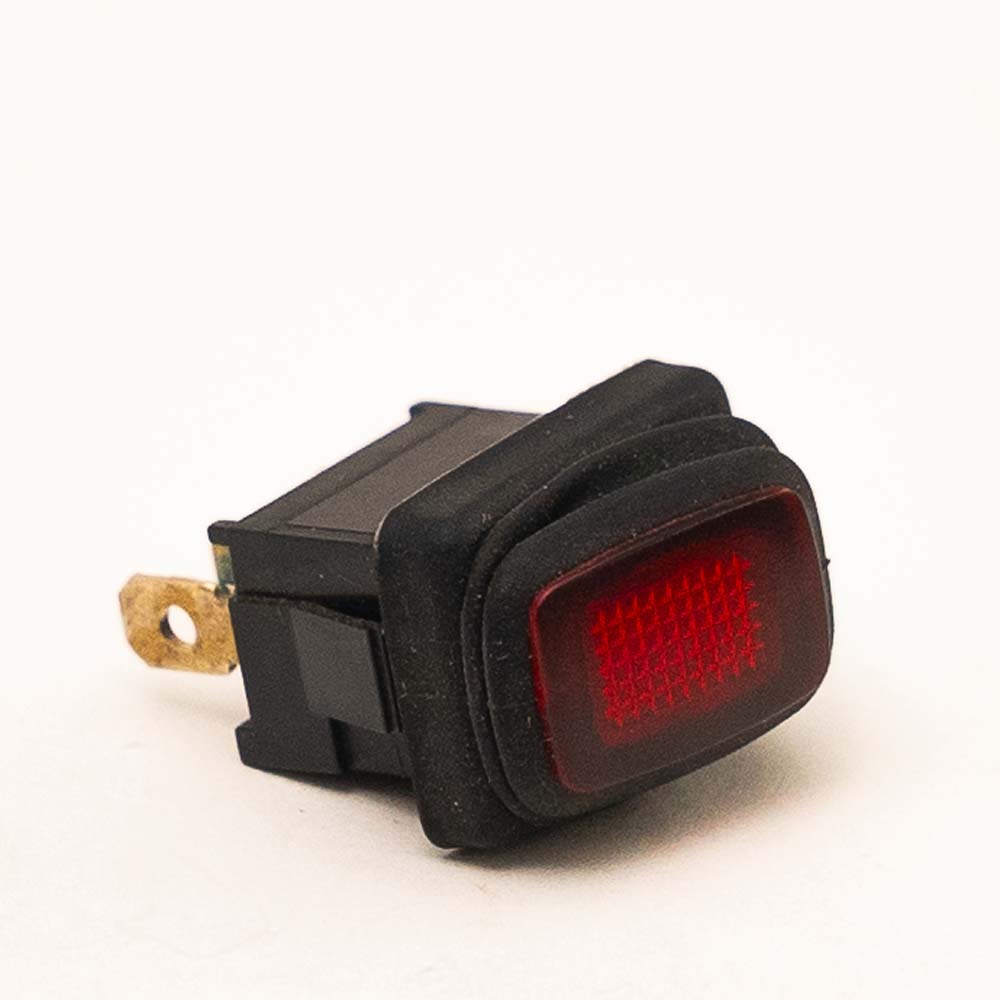

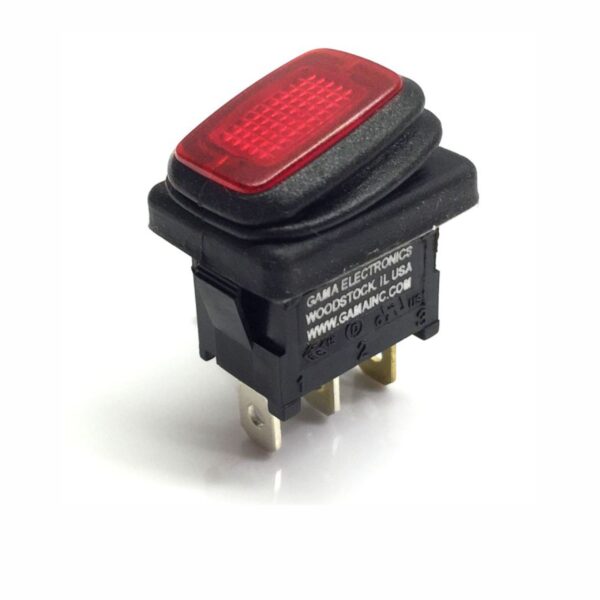

A unique, patented integral boot makes this popular sized illuminated mini Rocker Switch waterproof to IP 65. Single Pole, Single Throw, Off-On Illuminated. Contacts are rated at 10 amp 12 VDC. The illumination operates at 12 VDC. Black body and red button. 3/16 inch quick connect terminals. Panel cutout is .51 x .77 inches.

Specifications

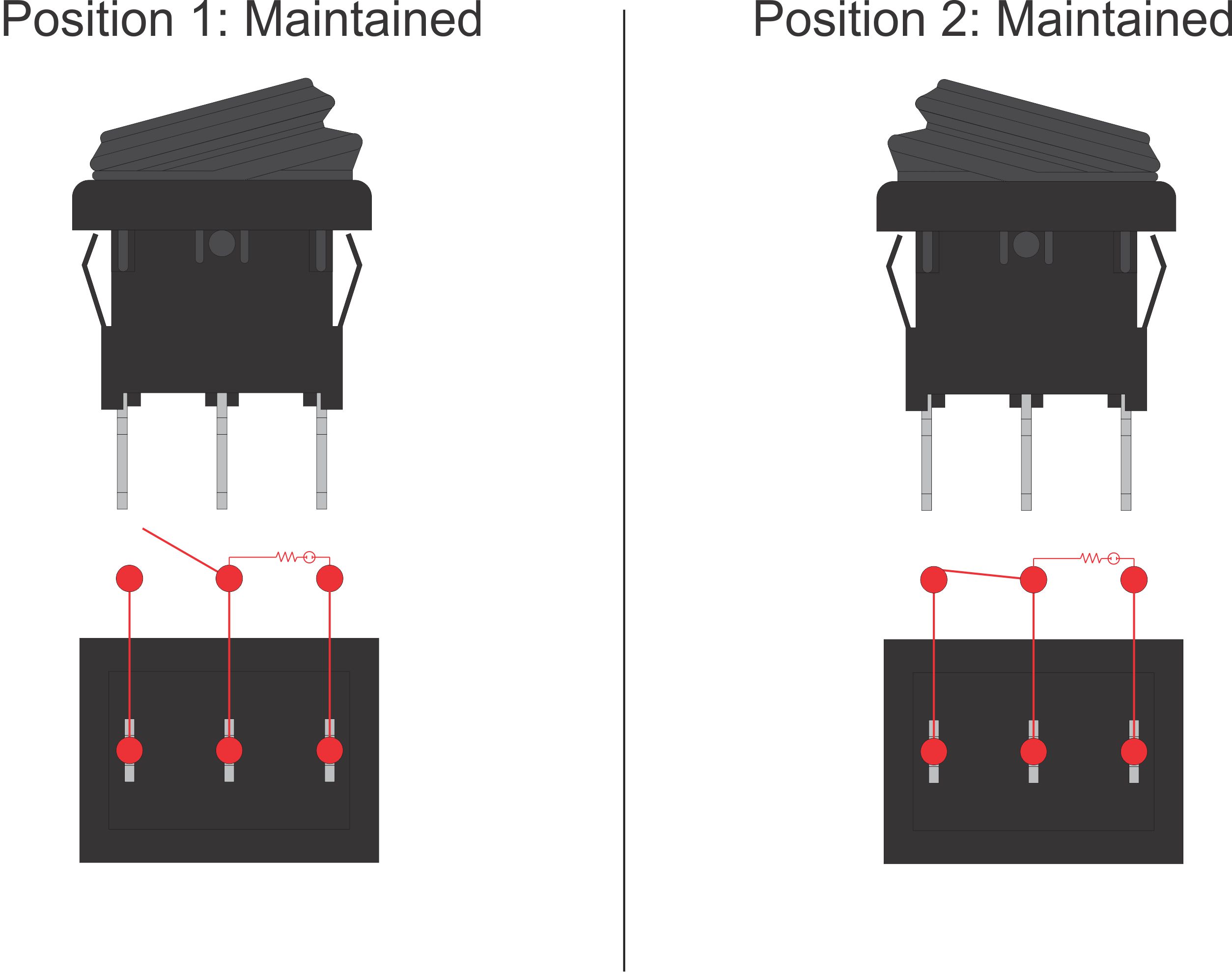

  • SPST Off-On Illuminated
  • 12 VDC Illumination
  • Rated at 10 amp 12VDC.
  • Waterproof to IP65

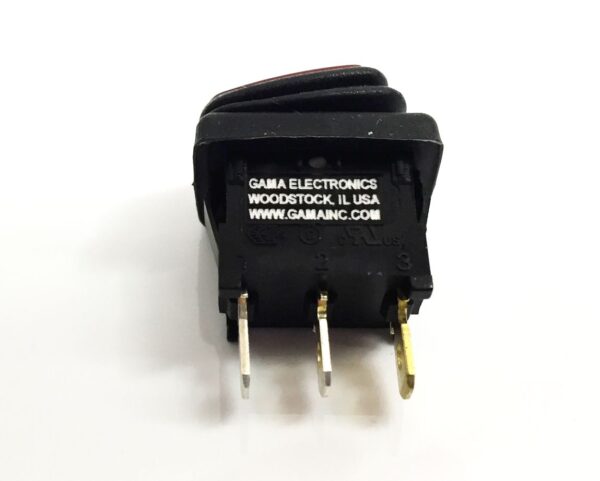

  • 3/16 inch quick connect terminals.
  • Panel cutout is .51 x .77 inches.
  • UL,CSA & CE Approved

Additional information

Switch Type

Standard, Waterproof Enclosure With Wire Leads

Downloads

66B8W Drawing PDF (169 KB)
66B8W Wiring Diagram PDF (662 KB)
