P12001-3-MTD

$29.95

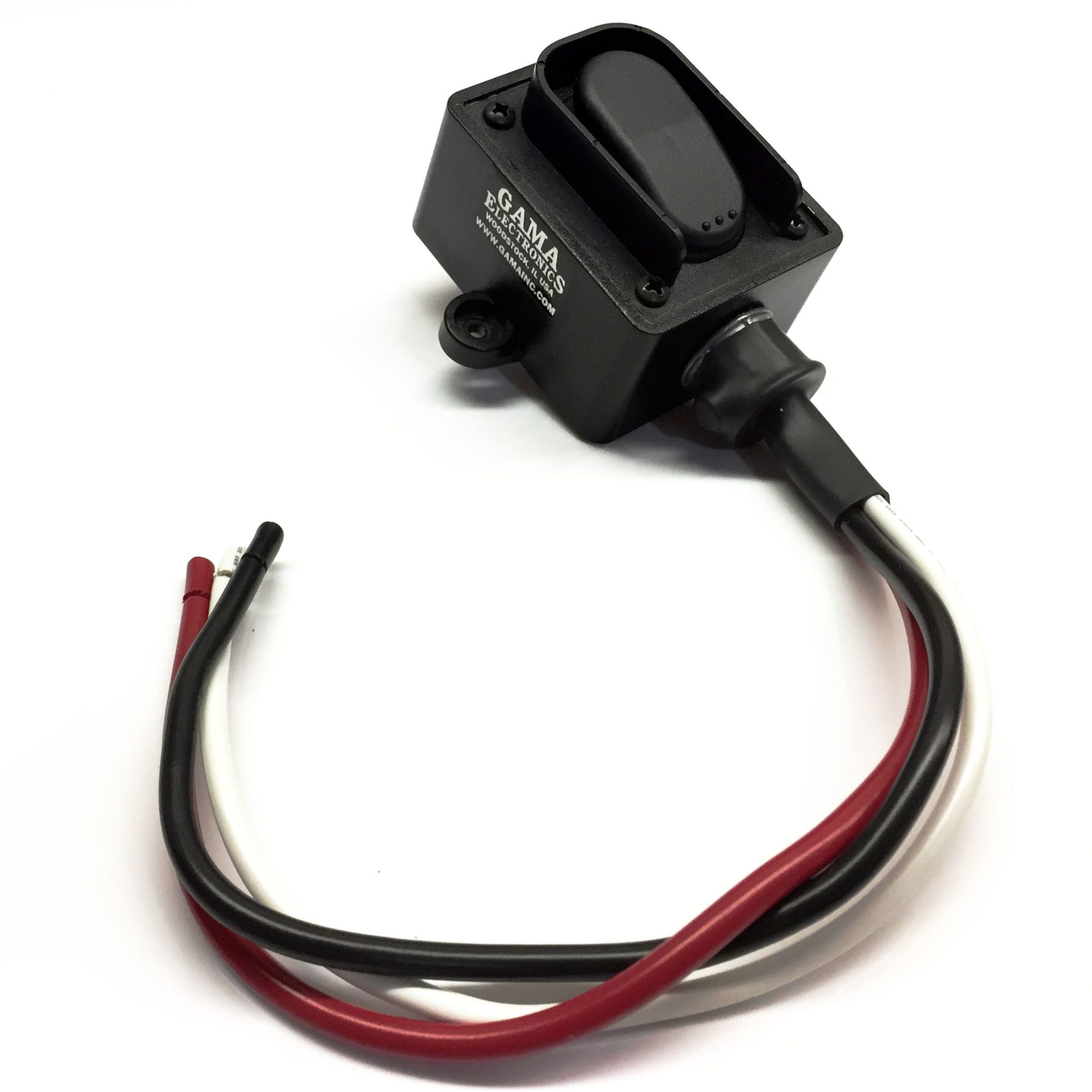

Waterproof Rocker Switch, 30A 3-Position On-Off-On with Wire Leads

Description

Waterproof Rocker Switch, 30A 3-Position On-Off-On with Wire Leads

Rugged SPDT On-Off-On power rocker switch is environmentally sealed. This is a maintained switch meaning it stays locked in the selected position. The actuator is sealed by means of gaskets and o-rings. The switch body and connections are encapsulated in urethane inside a robust ABS enclosure. The enclosure has a built-in guard that shields the switch button from accidental actuation. There are two mounting tabs which allow the switch to be secured to a convenient mounting surface. The dimensions of the enclosure are 2 ¾” long x 2 3/8” wide x 2” high (including the switch button guard). 10 AWG switch leads are 12” long. The switch is rated at 30A @ 12VDC, 25A @ 125VAC, 15A @ 250VAC.

It is ideal for marine applications, construction equipment, automotive accessories or other applications in harsh environments.

Specifications

  • Waterproof to IP-66
  • Rated at 30A @ 12VDC, 25A @ 125VAC, 15A @ 250VAC.
  • Dimensions: 2 ¾” L x 2 3/8” W x 2” H (including the switch button guard).

Downloads

P12001-3-MTD Drawing PDF (69 KB)
