P12001-PR-MTD

$29.95

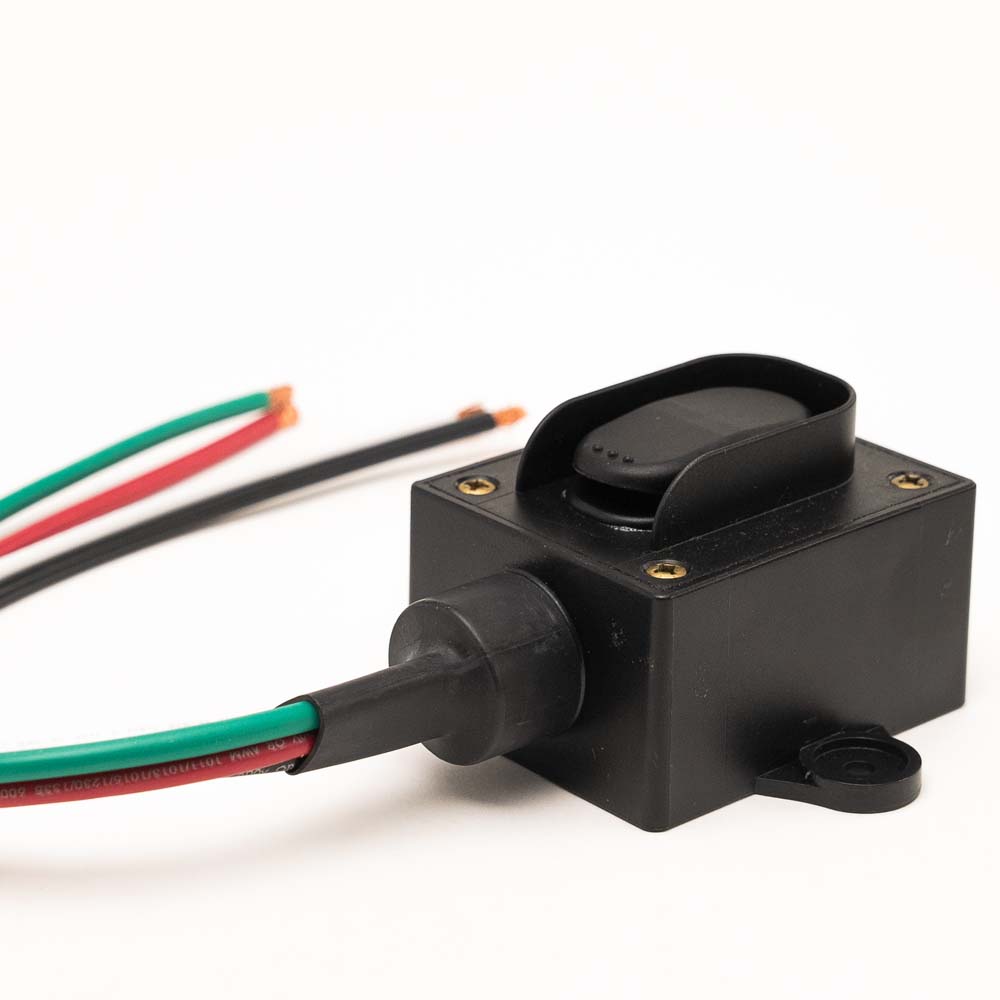

Waterproof Rocker Switch, 30A 3-Position Reverse Polarity On-Off-On

Description

Waterproof Rocker Switch, 30A 3-Position Reverse Polarity On-Off-On

Rugged Polarity Reversing On-Off-On power rocker switch is environmentally sealed. This is a maintained switch meaning it stays locked in the selected position. The actuator is sealed by means of gaskets and o-rings. The switch body and connections are encapsulated in urethane inside a robust ABS enclosure. The enclosure has a built-in guard that shields the switch button from accidental actuation. There are two mounting tabs which allow the switch to be secured to a convenient mounting surface. The dimensions of the enclosure are 2 ¾” long x 2 3/8” wide x 2” high (including the switch button guard). 10 AWG switch leads are 12” long. The switch is rated at 30 Amps @ 12VDC. This double pole, double throw switch has 4 leads and is used to reverse the direction of DC motors. It is ideal for marine applications, construction equipment, automotive accessories or other applications in harsh environments.

Specifications

  • Waterproof to IP-66
  • Rated 30 Amp@ 12VDC
  • Dimensions: 2 ¾” L x 2 3/8” W x 2” H (including the switch button guard).

Downloads

P12001-PR-MTD Drawing PDF (71 KB)
