RF Remote Control System, 120VAC On-Off Or AC Motor Reversing

Clear

Description

RF Remote Control System, 120VAC On-Off Or AC Motor Reversing

The RF120V-2WP remote control is designed to provide two normally-open 120 Volt outputs. It can be used as an On-Off control or as a reversing control for 3-wire AC motors. Dip switches allow the outputs to be momentary or latching. The receiver operates from a 120 VAC power source. The outputs are controlled via a 2-button key fob transmitter. The output relays are rated at 25-amps and 1 HP @ 120VAC.

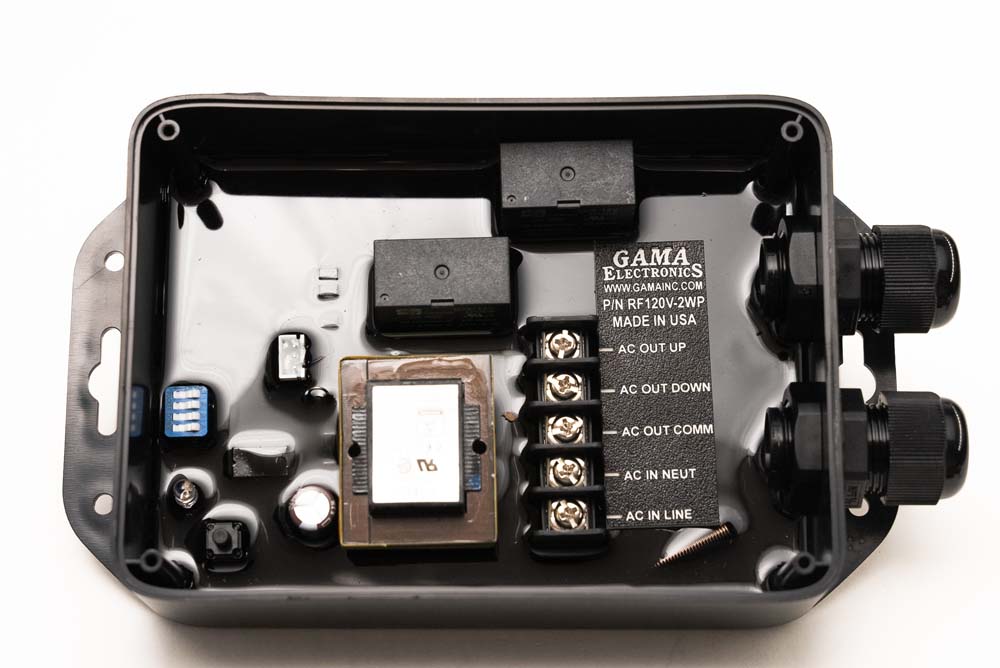

The receiver electronics are encapsulated for waterproofing and it is suitable for use in harsh environments. Operating temperature range – 0°F to 160°F. Receiver dimensions are approximately 6″ L x 4″ W x 2.25″ H.
There is a terminal block for the connections.
Transmit range is greater than 100 feet under normal operating conditions. FCC Approved. Proudly made in the U.S.A.

Please note: This control will not reverse a 4 or 6 wire motor. For those applications, our LRF120VPR1L control should be used.

This item is now available with our rechargeable transmitter. This transmitter lasts 12 times longer than our standard transmitter with a single charge. When the battery gets low it can be recharged with a USB connector. It is an ideal option for applications that utilize momentary operation.

Specifications

  • Frequency: 340 MHz.
  • Input voltage: 120 VAC .
  • The output relays are rated at 25A @120 VAC, 1HP 120 VAC.
  • Operating temperature range: 0°F to 160°F.
  • Receiver dimensions are approximately 6″ L x 4″ W x 2.25″ H.
  • Transmit range is greater than 100 feet under normal operating conditions.
  • Up to 12 keyfob transmitters can be used with each receiver.

Additional information

Communication Range

Long Range, Standard

Transmitter Type

Extended Battery Life, Rechargeable (2-Button), Standard, Waterproof

Downloads

RF120V-2WP Wiring Diagram PDF (275 KB)
RF120V-2WP Instruction Manual (1 MB)
RF120V-2WP Drawing PDF (478 KB)
