RF24V-2-ASL

$84.95$174.95

RF Remote Control System, (2) 24VDC Outputs with auxiliary switch leads

SKU: N/A Categories: ,

Description

RF Remote Control System, (2) 24VDC Outputs with auxiliary switch leads

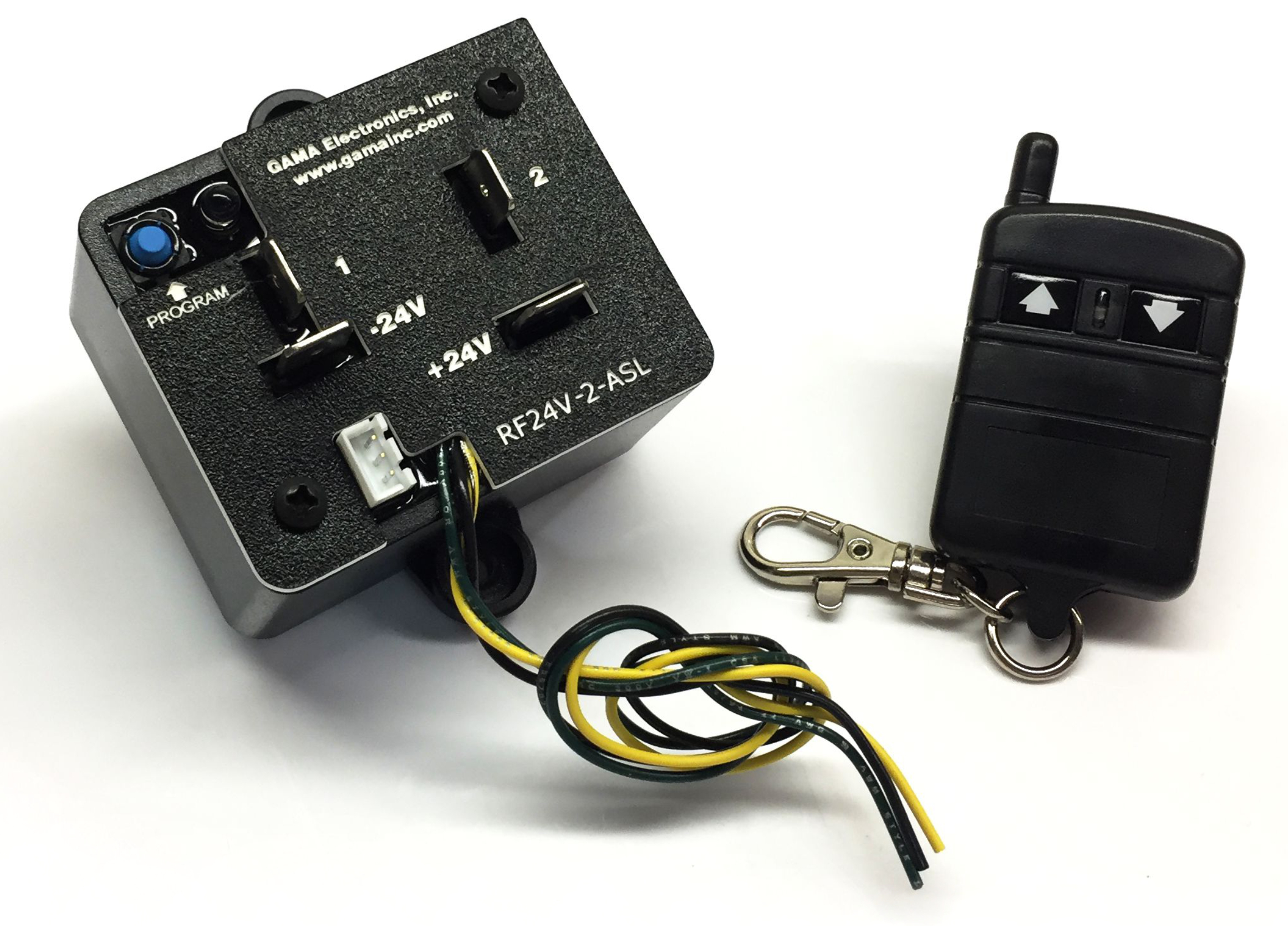

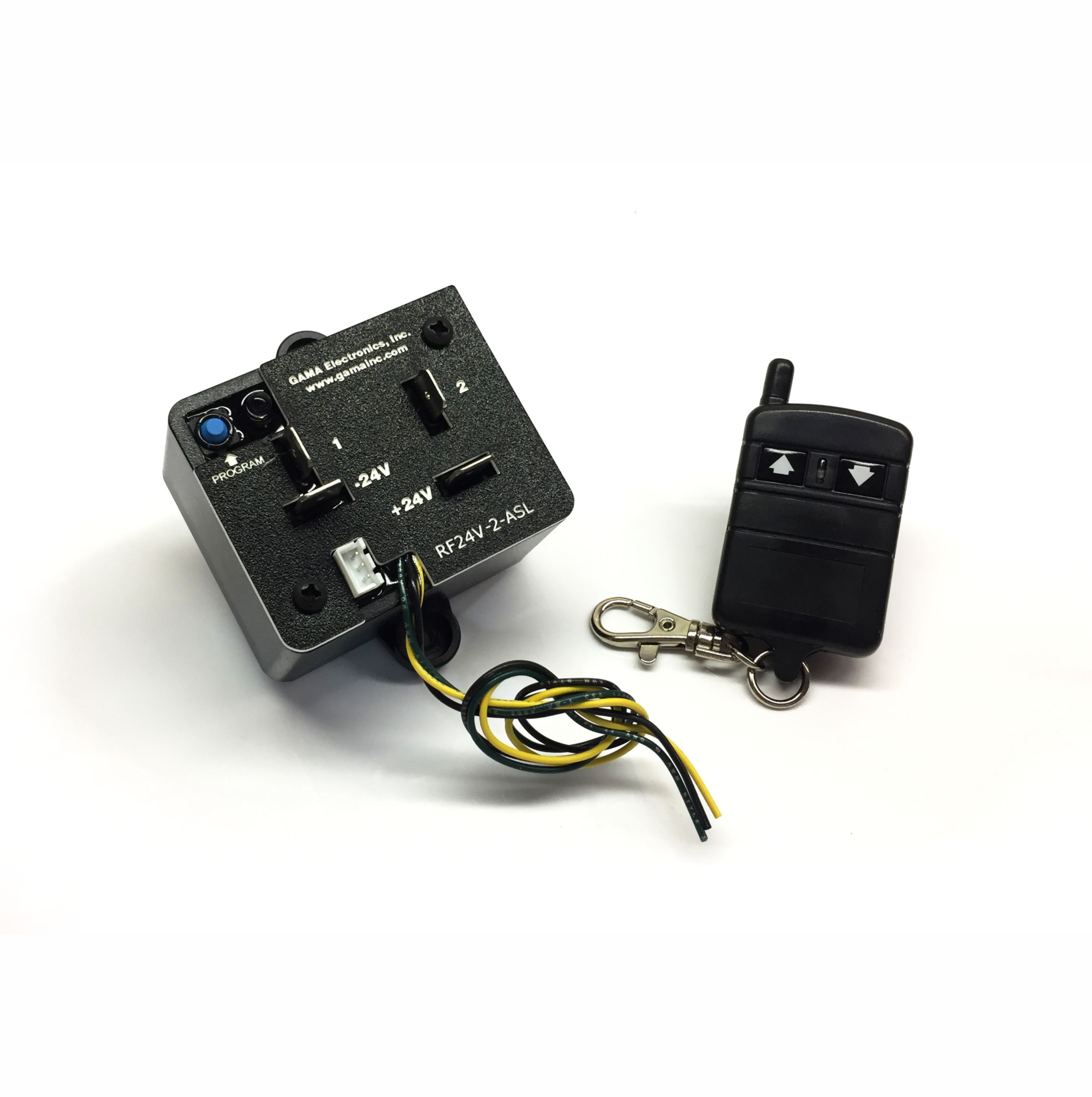

Compact 24VDC R.F. Remote Control transmitter & receiver. Provides two 24VDC outputs. The output relays are rated at 30A @ 24VDC.

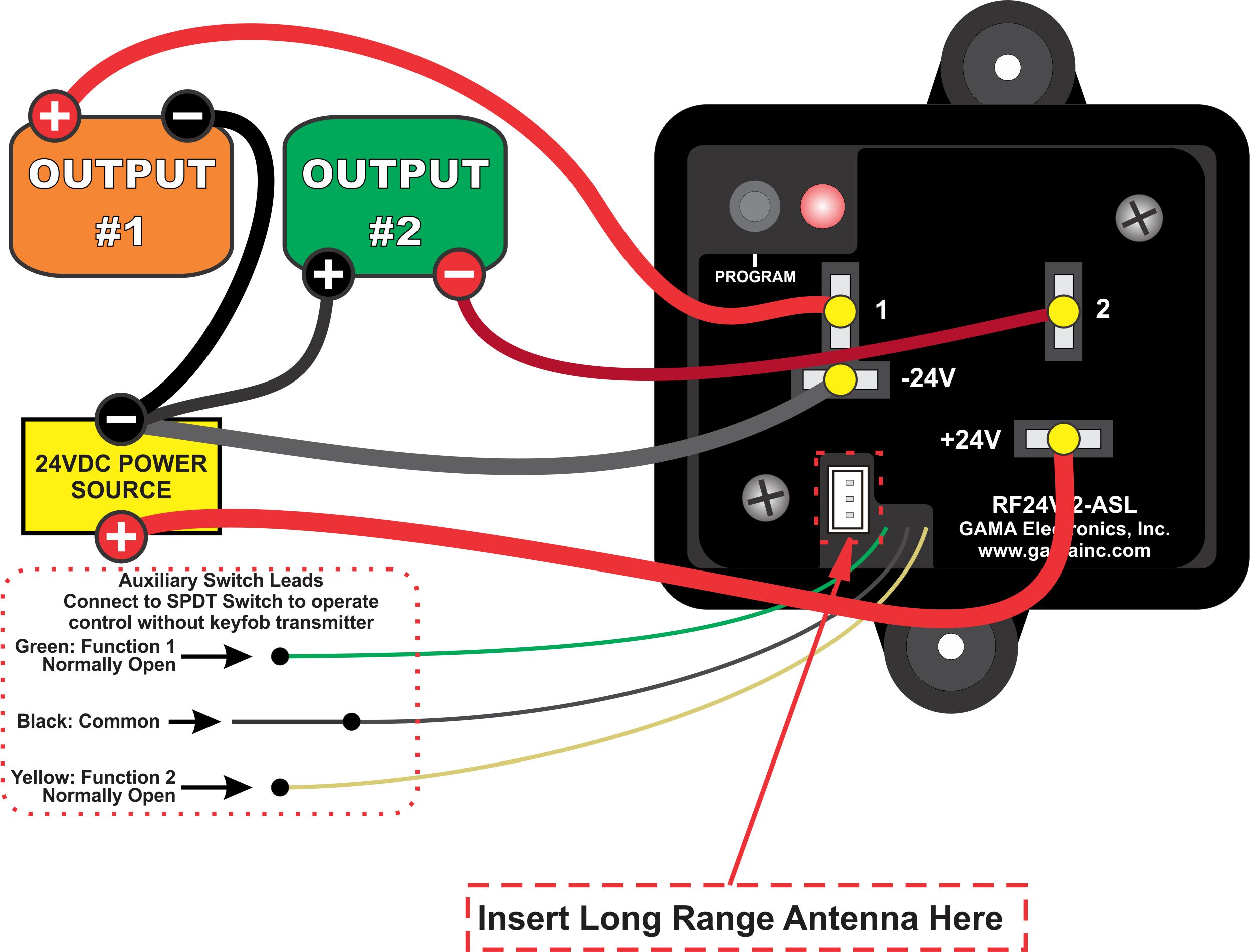

This system is commonly used for controlling DC motors (3 wire motors) that have separate windings for controlling the direction of travel. The keyfob transmitter has two buttons. The left button controls output 1 and the right button controls output 2. There are also three lead wires that allow for an auxiliary On-Off-On switch to be connected. This permits operation of the control without using a transmitter.

The control can be configured for either momentary or latching operation. In the momentary mode, either one of the two outputs will operate as long as the buttons are held down. In the latching mode, pressing either button will latch the corresponding relay & provide a 24 volt output. Both outputs can be energized simultaneously in the latching mode.

The receiver electronics are encapsulated for waterproofing and it is suitable for use in harsh environments. Operating temperature range – 0° F to 160° F. The robust ABS enclosure dimensions are approximately 2.75″ L x 2.25″ W x 1.5″ H. The receiver has two mounting tabs.

There are four 1/4″ terminals for the connections.

Transmit range is greater than 100 feet under normal operating conditions. An optional long range antenna is available for purchase that will increase the range to 500 feet under normal operating conditions.

FCC Approved.

Proudly made in the U.S.A.

This item is now available with our rechargeable transmitter. This transmitter lasts 12 times longer than our standard transmitter with a single charge. When the battery gets low it can be recharged with a USB connector. It is an ideal option for applications that utilize momentary operation.

Specifications

  • Frequency: 340 MHz.
  • Input voltage: 24VDC with reverse polarity protection.
  • The output relays are rated at 30A @ 24VDC.
  • Operating temperature range: 0° F to 160° F.
  • Receiver dimensions are approximately 2.75″ L x 2.25″ W x 1.5″ H.
  • Transmit range is greater than 100 feet under normal operating conditions.
  • Up to 30 keyfob transmitters can be used with each receiver.

Additional information

Communication Range

Long Range, Standard

Enclosure & Switch Type

Standard, Waterproof

Transmitter Type

Rechargeable (2-Button), Standard, Waterproof

Downloads

RF24V-2-ASL Drawing PDF (2 MB)
RF24V-2-ASL Wiring Diagram (667 KB)
RF24V-2-ASL Instruction Manual PDF (2 MB)
