RF Remote Control System, 100A Reverse Polarity 12VDC Motor Control

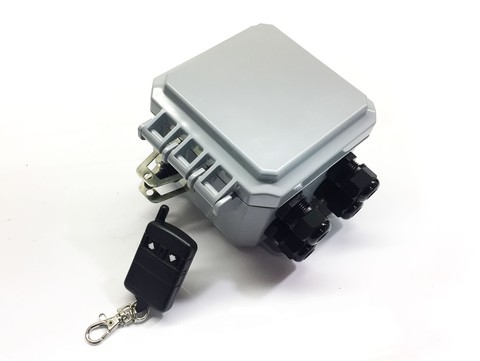

Heavy Duty 12VDC Polarity Reversing R.F. Remote Control transmitter & receiver are designed for bi-directional control of DC motors. The output is rated for up to a 100 amp load.
This system is ideal for controlling lifts, jacks, winches, slide-outs, awnings and agricultural applications where 12 VDC polarity reversing DC motors are used. The keyfob transmitter has two buttons. The left button runs the motor in one direction and right button runs the motor in the opposite direction. There is also an auxiliary On-Off-On switch that permits operation of the control without using a transmitter.
The control can be configured for either momentary or latching operation. In the momentary mode, the motor will operate as long as the buttons are held down. In the latching mode, pressing either button will start the motor and pressing the button a second time will stop the motor. The auxiliary switch leads only provide momentary operation.
The receiver electronics are encapsulated for waterproofing and housed in a NEMA-4 enclosure. It is suitable for use in harsh environments. Operating temperature range – 0° F to 160° F. The robust enclosure
dimensions are approximately 6″ L x 6″ W x 3″ H.
There are four terminals for the connections.
Transmit range is greater than 100 feet under normal operating conditions. FCC Approved.
Proudly made in the U.S.A.
This item is now available with our rechargeable transmitter. This transmitter lasts 12 times longer than our standard transmitter with a single charge. When the battery gets low it can be recharged with a USB connector. It is an ideal option for applications that utilize momentary operation.
- Frequency: 340 MHz.
- Input voltage: 12VDC with reverse polarity protection.
- The output is rated for up to a 100 amp load.
- Operating temperature range: 0° F to 160° F.
- Transmit range is greater than 100 feet under normal operating conditions.
- Up to 12 keyfob transmitters can be used with each receiver.
