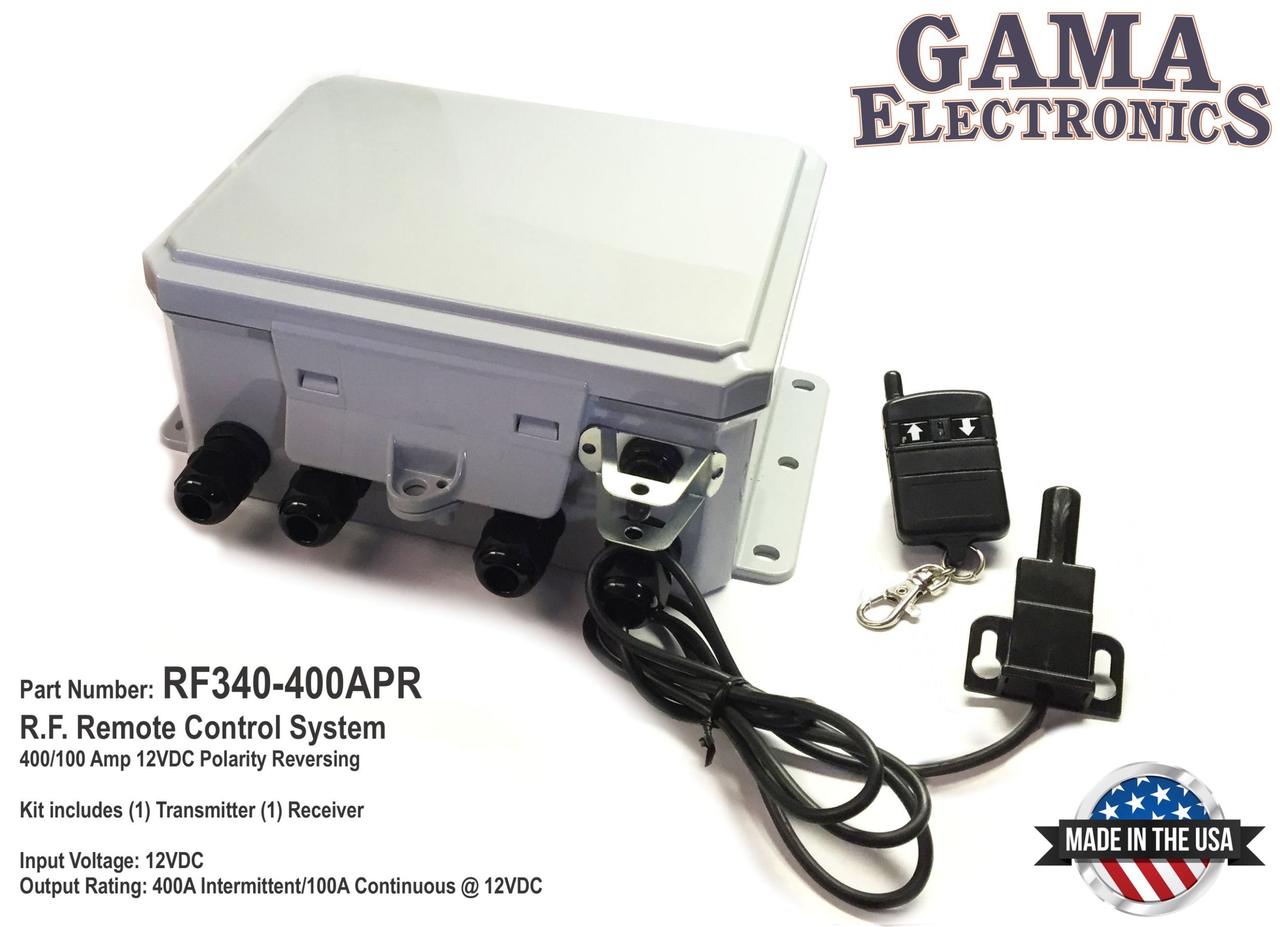

RF Remote Control System, 400/100 Amp Polarity Reversing 12VDC Motor Control
Heavy Duty, Long Range Polarity Reversing R.F. Remote Control is designed for bi-directional control of DC motors. This control is intended for high current applications. The output is rated for a 100 amp continuous load and up to a 400 amp intermittent load (10% duty cycle).
This system is ideal for controlling lifts, jacks, winches, and agricultural applications where large capacity 12 VDC polarity reversing DC motors are used. The keyfob transmitter has two buttons. The left button runs the motor in one direction and right button runs the motor in the opposite direction. There are also auxiliary waterproof pushbutton switches mounted on the receiver. This permits operation of the control without using a transmitter.
The control can be configured for either momentary or latching operation. In the momentary mode, the motor will operate as long as the buttons are held down. In the latching mode, pressing either button will start the motor and pressing the button a second time will stop the motor. The auxiliary switches on the receiver only provide momentary operation.

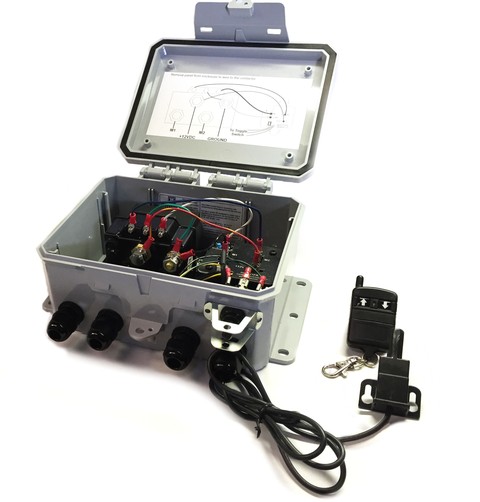

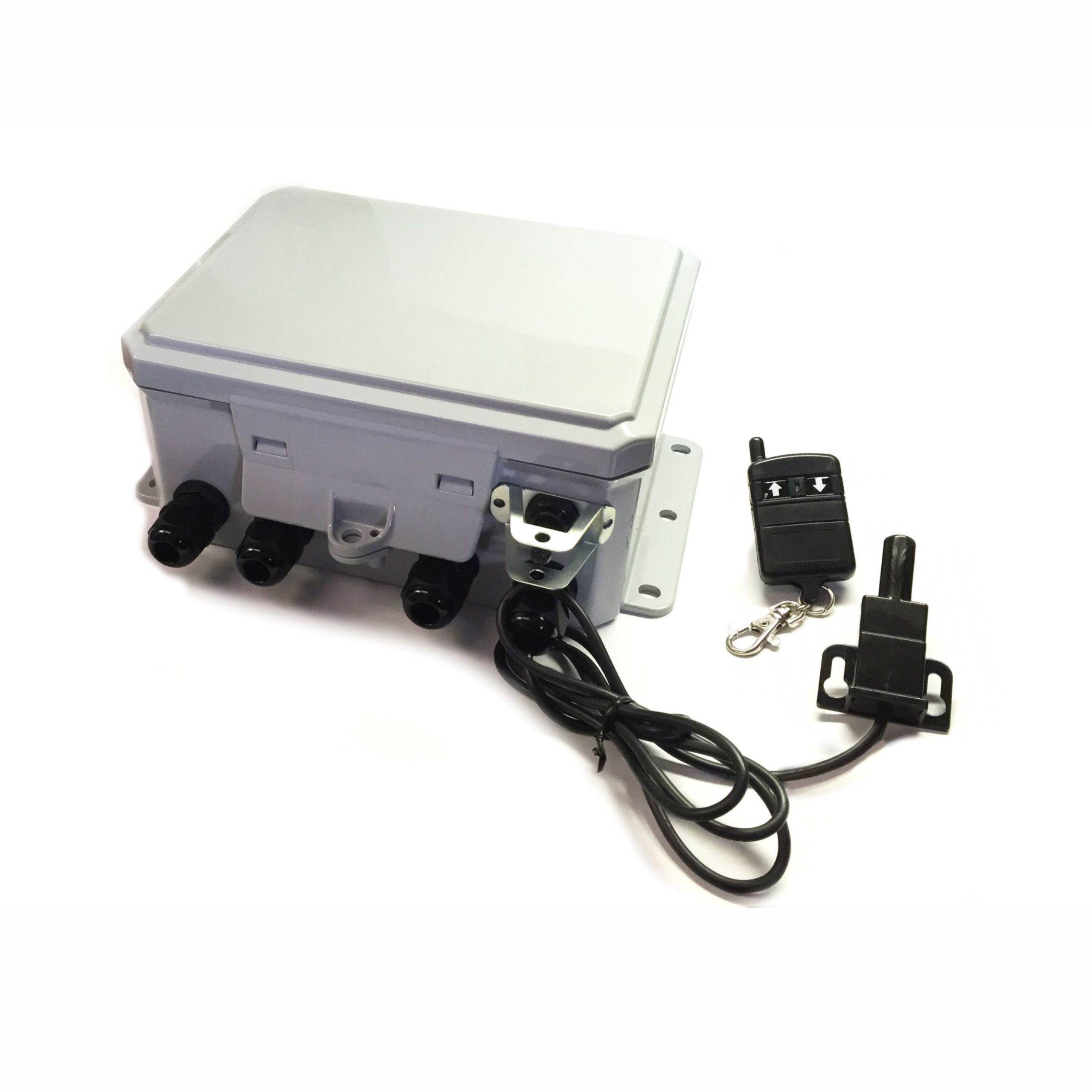

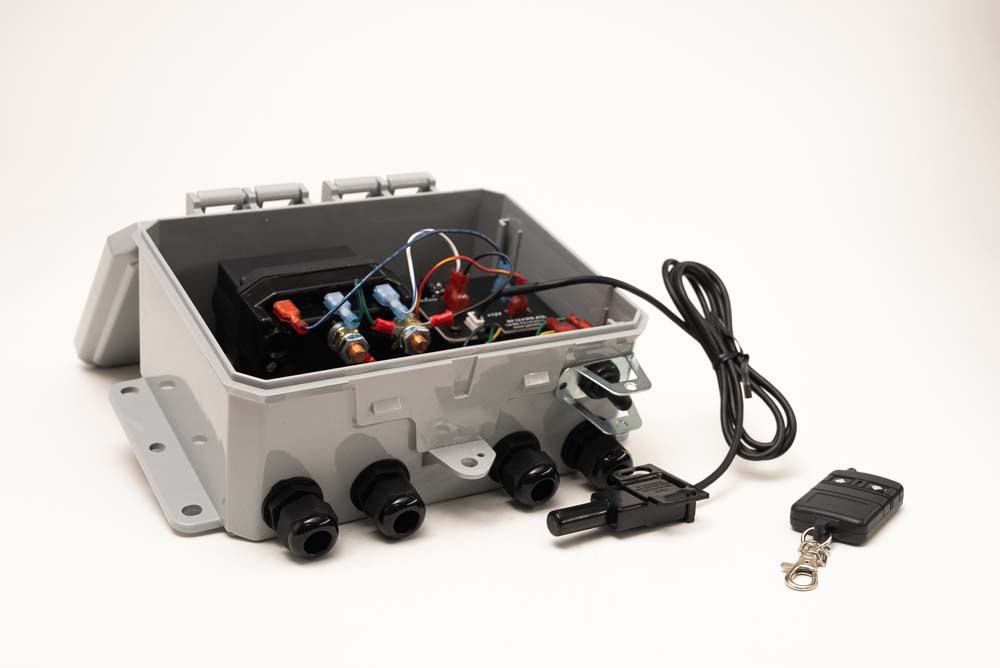

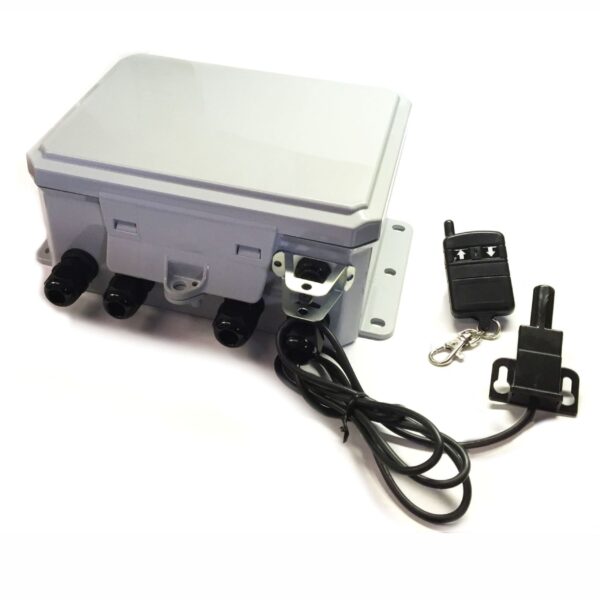

The control is housed in a IP-68 waterproof enclosure and is suitable for use in harsh environments. The enclosure dimensions are approximately 9″ L x 6″ W x 4″ H. The long range antenna is housed in a separate housing and connects to the receiver with a 5 foot cable.

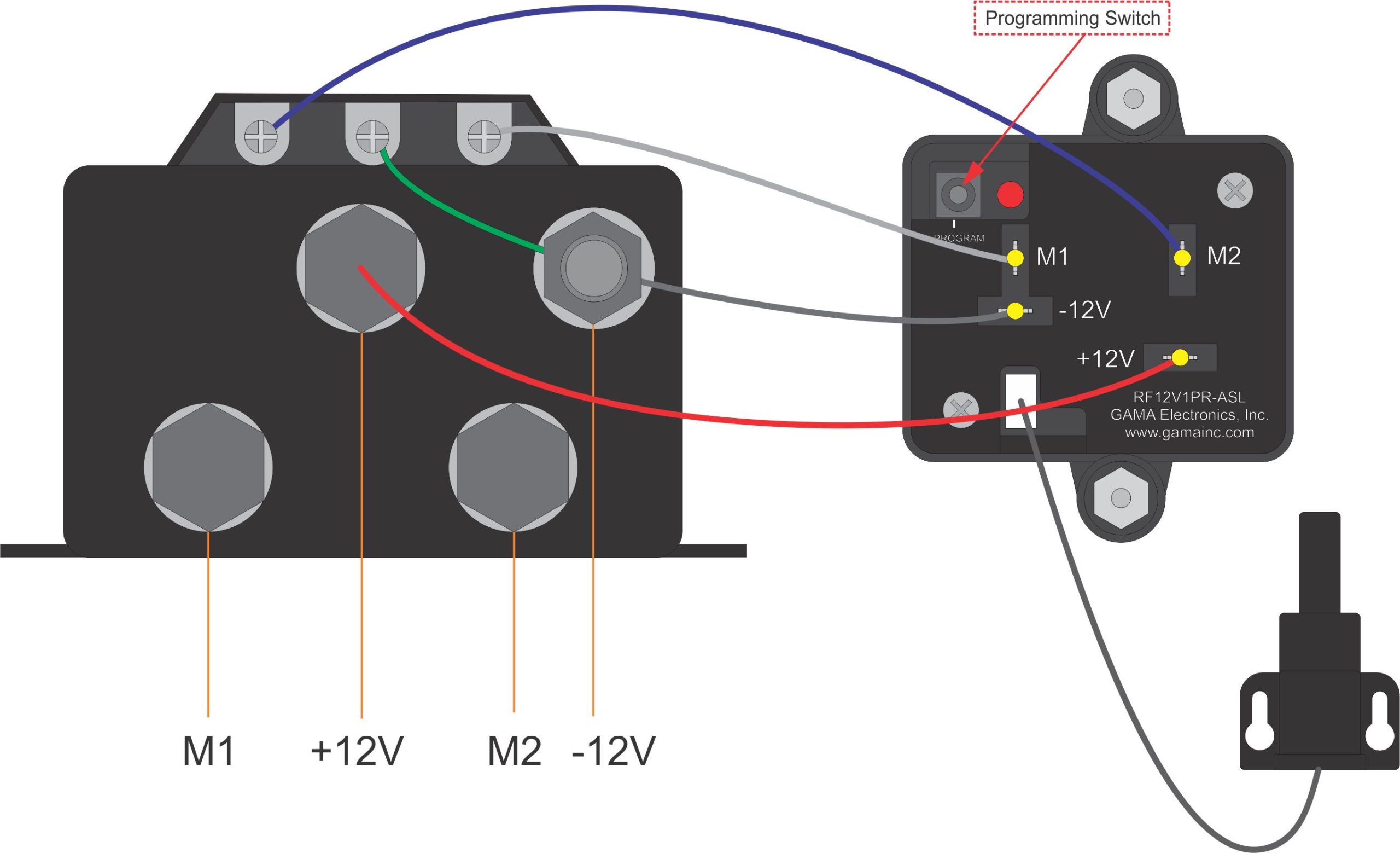

There are four screw terminals for the connections. Two connect 12 volts and Ground and the other two connect to the DC motor.
Transmit range is greater than 500 feet under normal operating conditions and can go as far as 900 feet under ideal conditions. FCC Approved. Proudly made in the U.S.A.
- Frequency: 340 MHz
- Input voltage: 12VDC.
- The output is rated for 100 amp continuous load and up to a 400 amp intermittent load (10% duty cycle).
- Operating temperature range: 0° F to 160°F.
- Receiver dimensions are approximately 9″ L x 6″ W x 4″ H.
- Transmit range is greater than 500 feet under normal operating conditions and can go to 900 feet under ideal conditions.
- Up to 12 keyfob transmitters can be used with each receiver.
