WP28PR-MTD

$19.95

Waterproof Toggle Switch, 30A Reverse Polarity DC Motor Control – Maintained

Description

Waterproof Toggle Switch, 30A Reverse Polarity DC Motor Control – Maintained

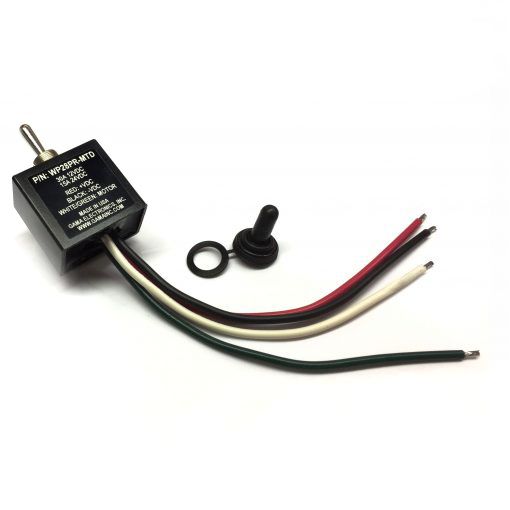

Waterproof, On-Off-On Toggle Switch. This is a 3 position, maintained switch meaning it stays locked in the selected position. It comes configured for polarity reversing. Simply connect power and ground and two DC motor leads and the switch will reverse the motor direction. The switch body and contacts are imbedded in urethane to make them waterproof. There are wire leads for the connections. A rubber boot protects the toggle and front surface of the switch from dirt and moisture. This heavy duty switch mounts in a .48” diameter hole and has 6 inch long wire leads. Note: When installing the switch, we recommend a bead of silicone around the base of the boot to ensure a watertight seal between the switch boot and your mounting surface.

Specifications

  • DPDT On-Off-On, Polarity Reversing
  • 30A 12VDC
  • 15A 24VDC
  • Mounts in a .48” diameter hole and has 6 inch long wire leads
  • Dimensions are 1.5” L x 1” W x 1.5” D
  • UL & CSA Approved

Downloads

WP28PR-MTD Drawing PDF (152 KB)
