Description

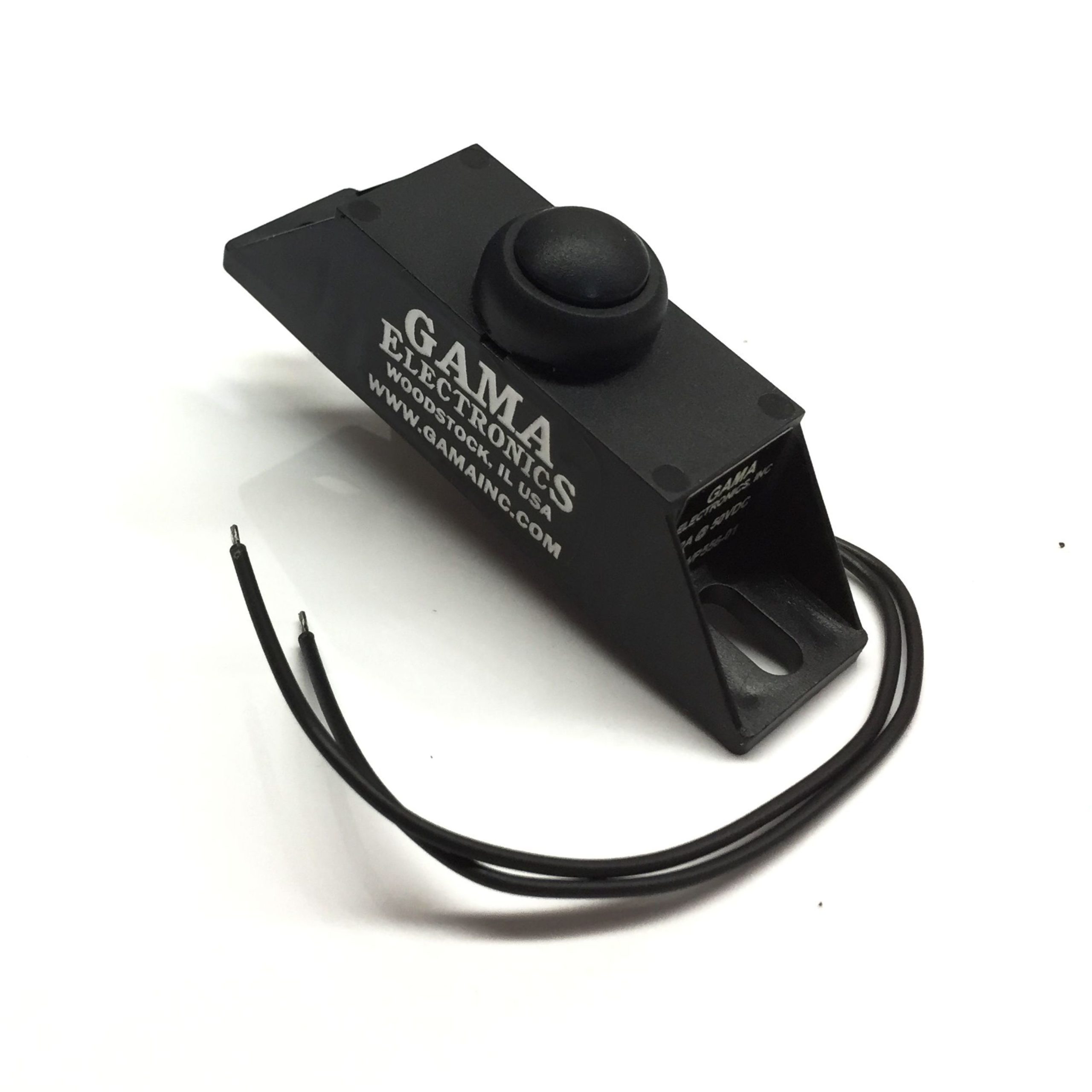

Waterproof Pushbutton Switch, SPST Normally Open – Momentary with wire leads
This waterproof switch assembly is perfect for outdoor applications or in any wet and harsh environment. It is rated IP67 meaning it is protected from dirt and dust and can withstand immersion in up to 1 meter of water for 30 minutes.
The rugged SPST Off-Momentary On pushbutton switch has a positive snap-action tactile feel and is environmentally sealed. The button is sealed by means of a unique, internal seal. The switch body and connections are encapsulated in urethane inside a robust ABS enclosure. There are two mounting tabs on the enclosure which allow the switch to be secured to any convenient mounting surface. The dimensions of the enclosure are 3” long x 3/4” wide x 1” high (including the switch button). Wire switch leads are 6” long. The switch is rated at .2A @ 50VDC.
Note: This switch is momentary meaning it is On as long as the button is held depressed. When the button is released, the switch spring returns to the Off position.
It is ideal for marine applications, construction equipment, automotive accessories or other applications in harsh environments.
Proudly made in the USA.
Specifications
- SPST Off-Momentary On
- Positive snap-action tactile feel
- Rated at .2A @ 50VDC
- Waterproof to IP67
- 6 inch wire leads
- Enclosure is 3” long x 3/4” wide x 1” high (including the switch button).
