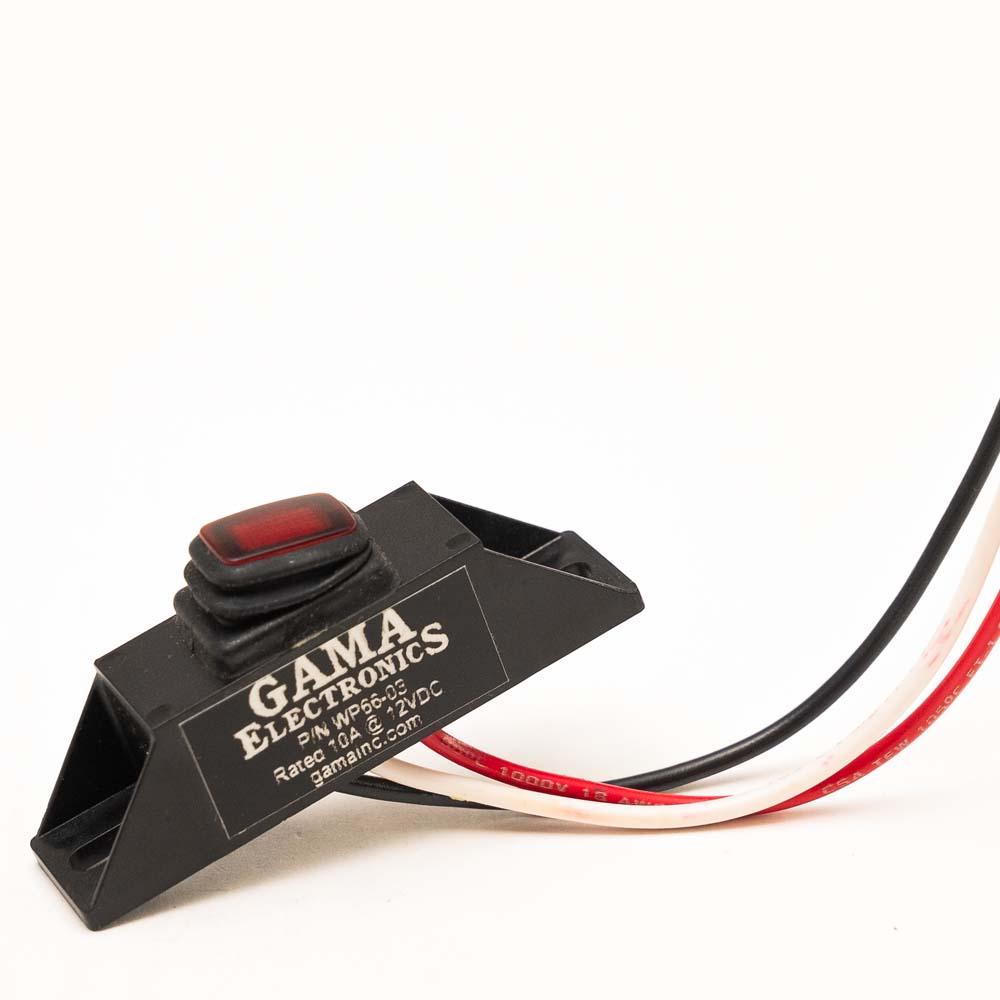

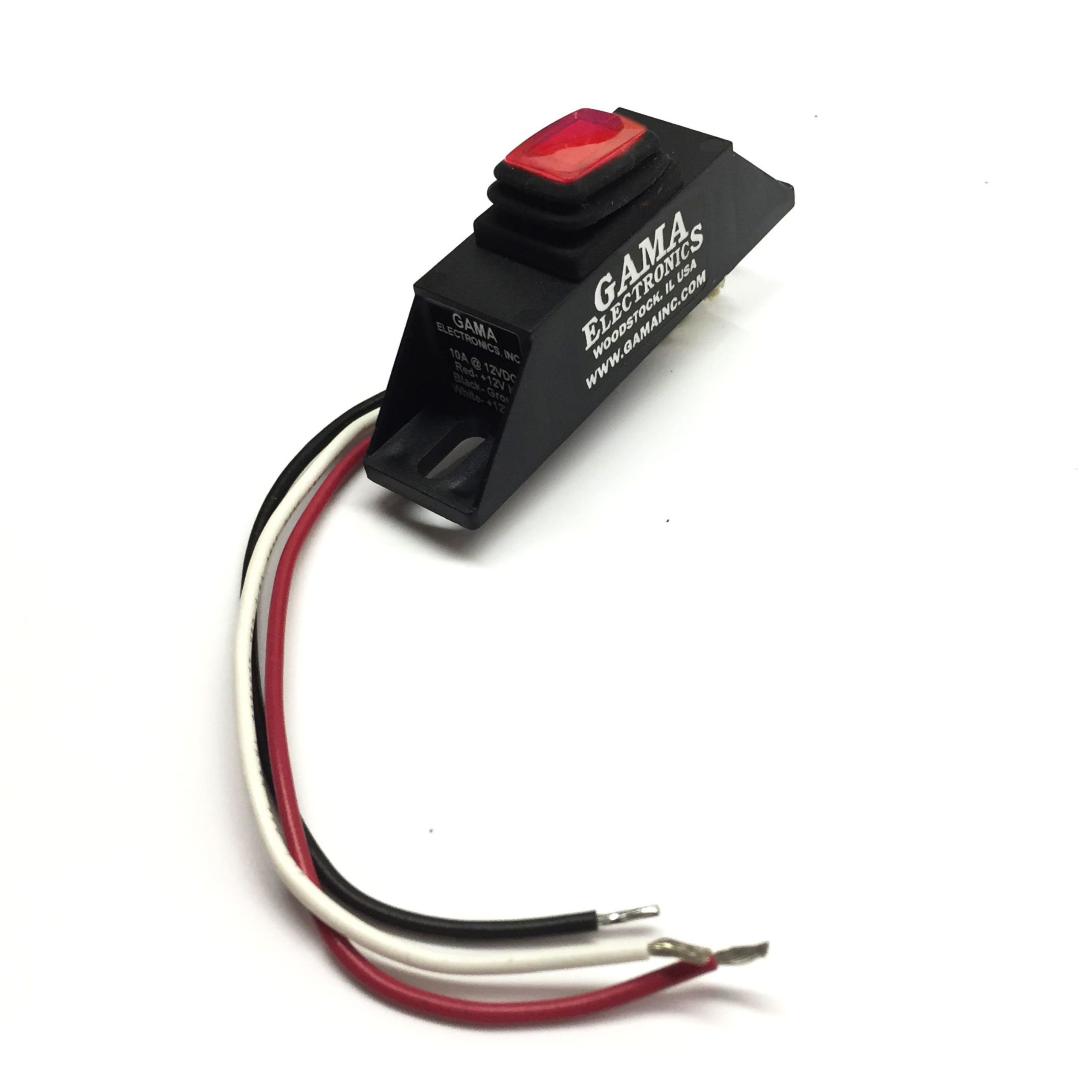

Waterproof Mini Rocker Swicth, 10A Red Illuminated On-Off 12VDC
This waterproof switch assembly is perfect for outdoor applications or in any wet and harsh environment. It is rated IP67 meaning it is protected from dirt and dust and can withstand immersion in up to 1 meter of water for 30 minutes.
The rugged SPST On-Off power rocker switch is environmentally sealed. The actuator is sealed by means of a unique, patented integral boot. The switch body and connections are encapsulated in urethane inside a robust ABS enclosure. There are two mounting tabs on the enclosure which allow the switch to be secured to any convenient mounting surface. The dimensions of the enclosure are 3” long x 3/4” wide x 1” high (including the switch button). Wire switch leads are 6” long. The switch has a black housing and a red 12 volt LED illuminated button. It is rated at 10A @ 12VDC.
It is ideal for marine applications, construction equipment, automotive accessories or other applications in harsh environments.
Proudly made in the USA.
- SPST Off-On Illuminated 12 volt.
- Rated at 10 amp 12VDC.
- Waterproof to IP67
- 6 inch wire leads
- Enclosure is 3” long x 3/4” wide x 1” high (including the switch button).
- UL,CSA & CE Approved
