232B2-BB

$14.95

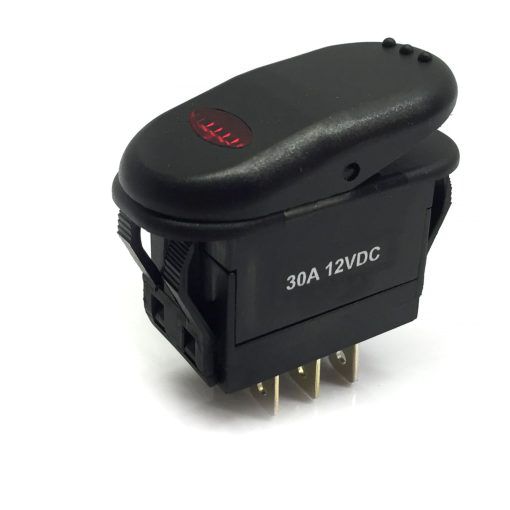

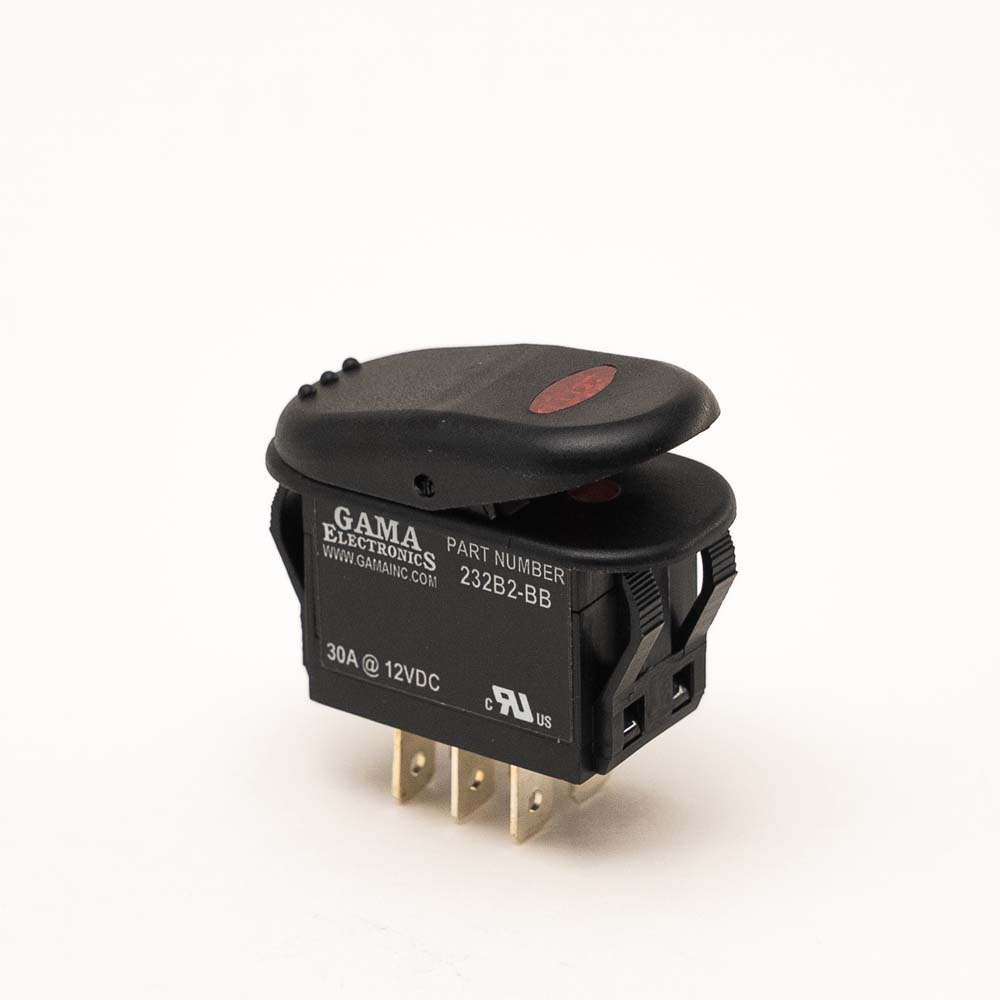

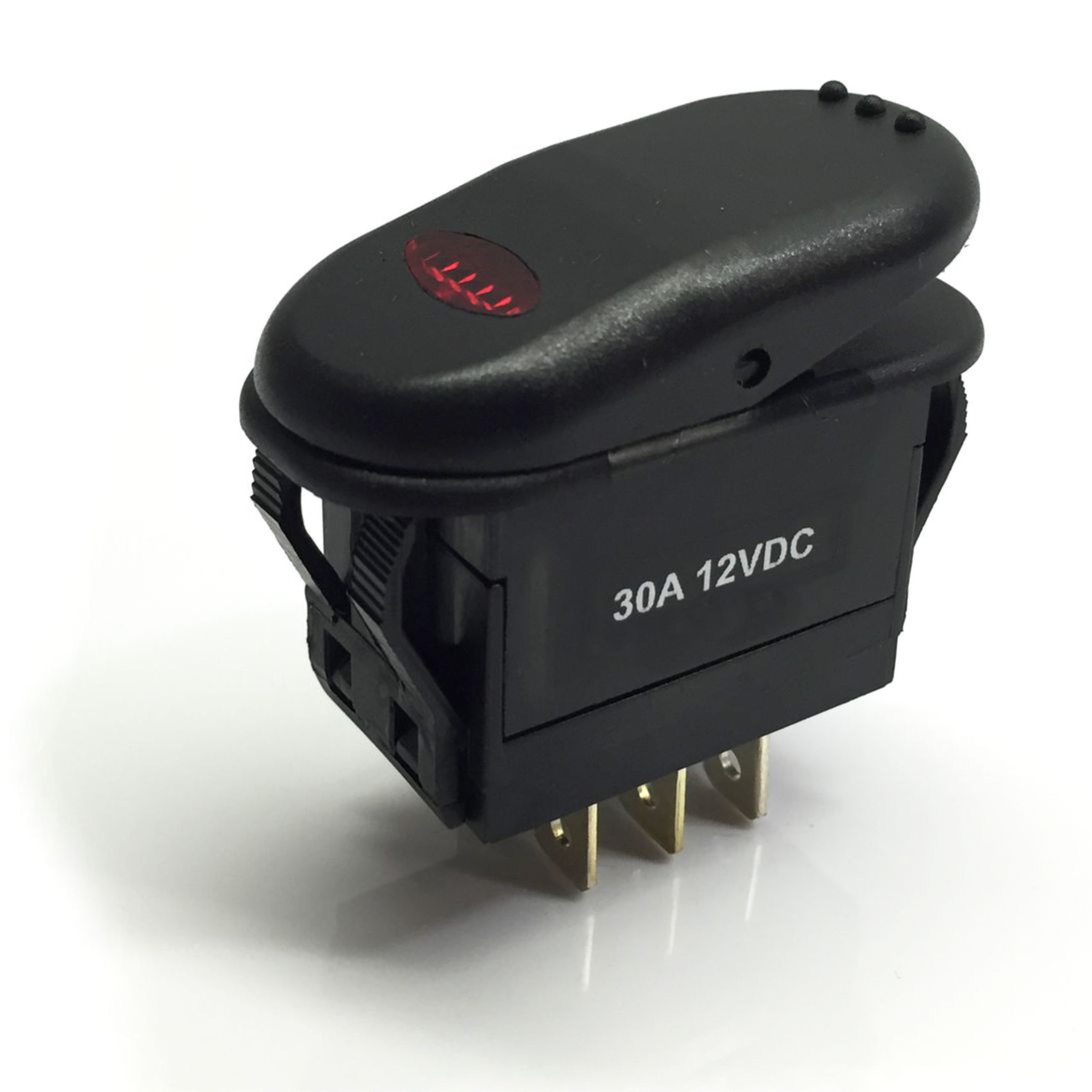

Waterproof Rocker Switch, 30 Amp Illuminated DPDT On-On

Description

Waterproof Rocker Switch, 30 Amp Illuminated DPDT On-On

Double pole, double throw 2 Position On-On Rocker Switch. This waterproof switch has a red illuminated window and provides 12 volt illumination. We have extensively tested this switch under harsh outdoor conditions and it performs very well. This heavy duty switch mounts in a .82 x 1.44 inch hole and it has 1/4 quick connect terminals. Internal gaskets and o-rings keep water & dust out of the contacts. Black body and button with one red lens. Rated at 30A @ 12VDC.

Specifications

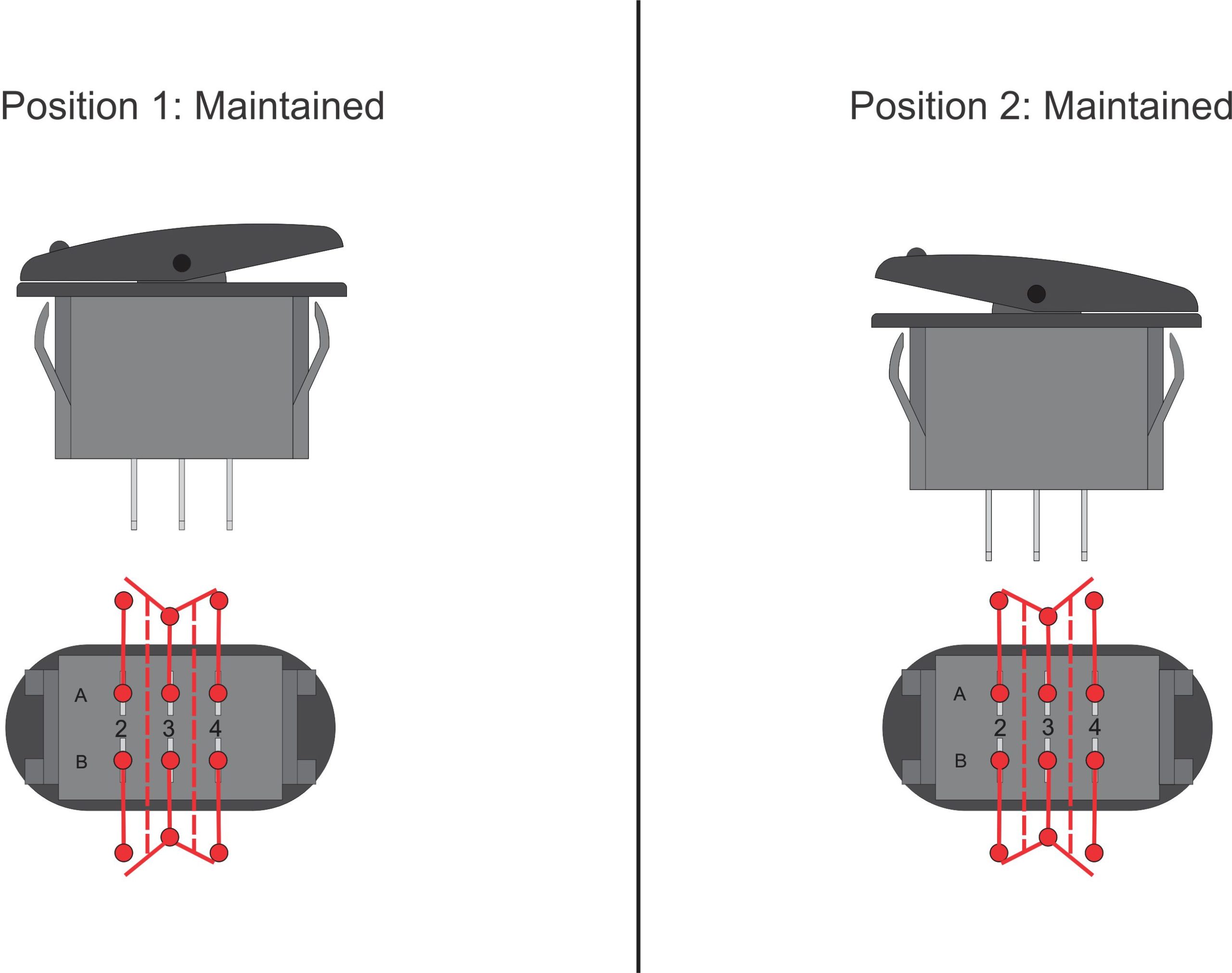

  • DPDT On-On
  • Rated at 30A @ 12VDC.
  • Panel Cutout: .82″ x 1.44″
  • Waterproof to IP66
  • UL,CSA & CE Approved

Downloads

232B2-B/B Drawing PDF (182 KB)
