66A8-02

$7.95$19.95

Waterproof Mini Rocker Switch, SPST Off-On

Clear

Description

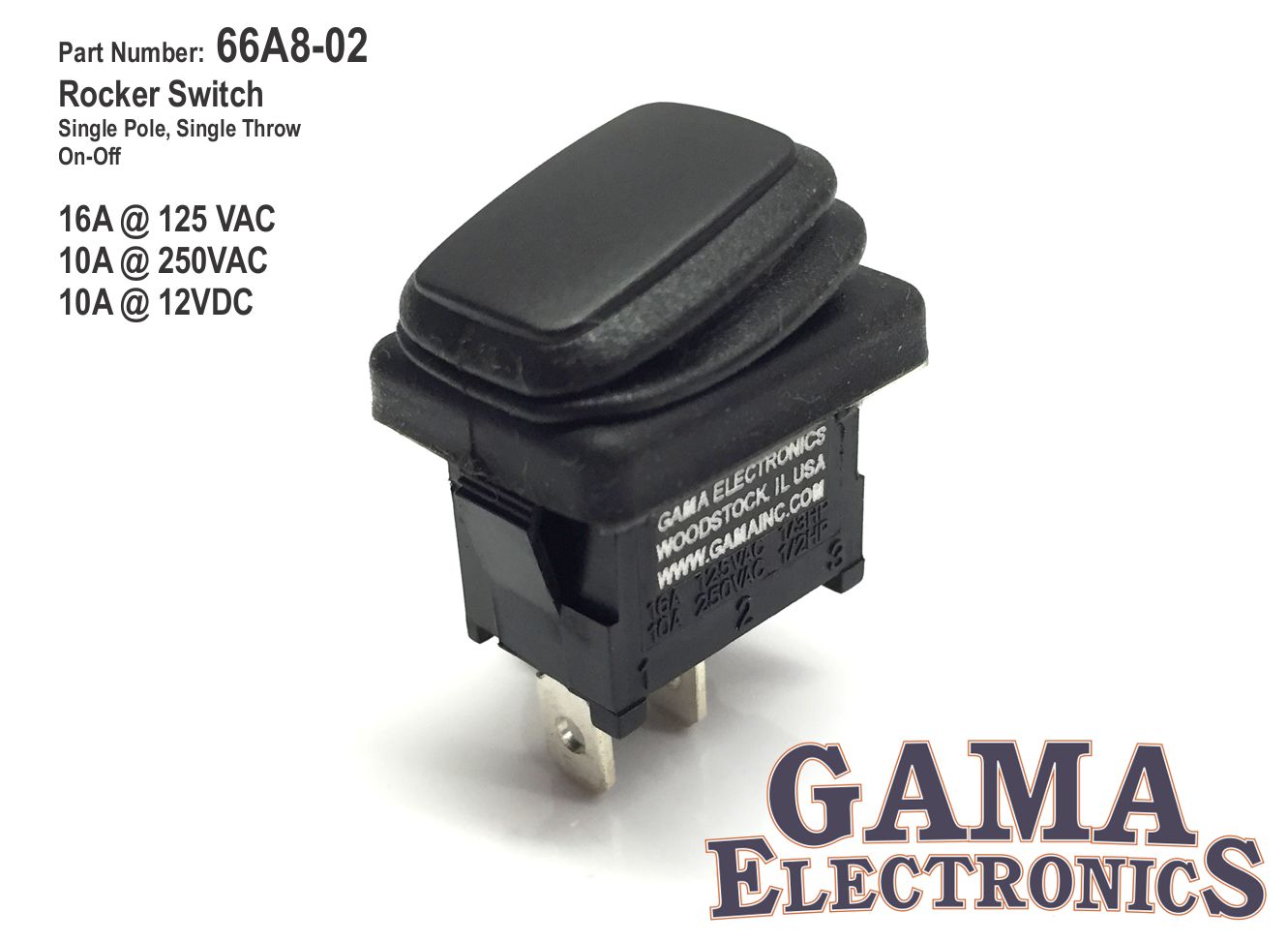

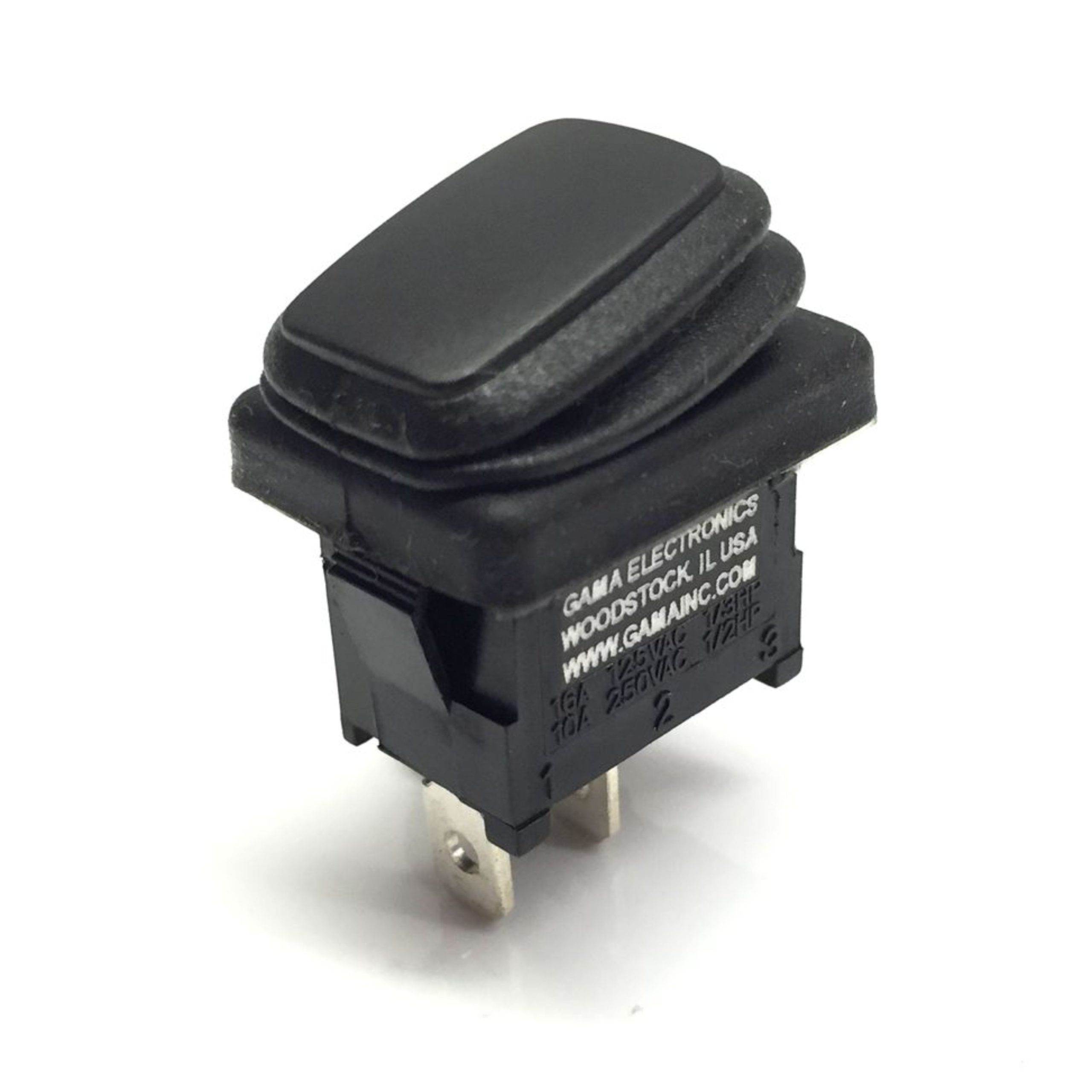

Waterproof Mini Rocker Switch, SPST Off-On

A unique, patented integral boot makes this popular sized mini Rocker Switch waterproof to IP 65. Single Pole, Single Throw, Off-On. Contacts are rated at 16 amp 125 VAC, 10 amp 250 VAC, 10 amp 12 VDC. Black body and black button. 3/16 inch quick connect terminals. Panel cutout is .51 x .77 inches.

Specifications

  • SPST Off-On
  • Rated at 16 amp 125 VAC, 10 amp 250 VAC, 10 amp 12VDC.
  • Waterproof to IP65

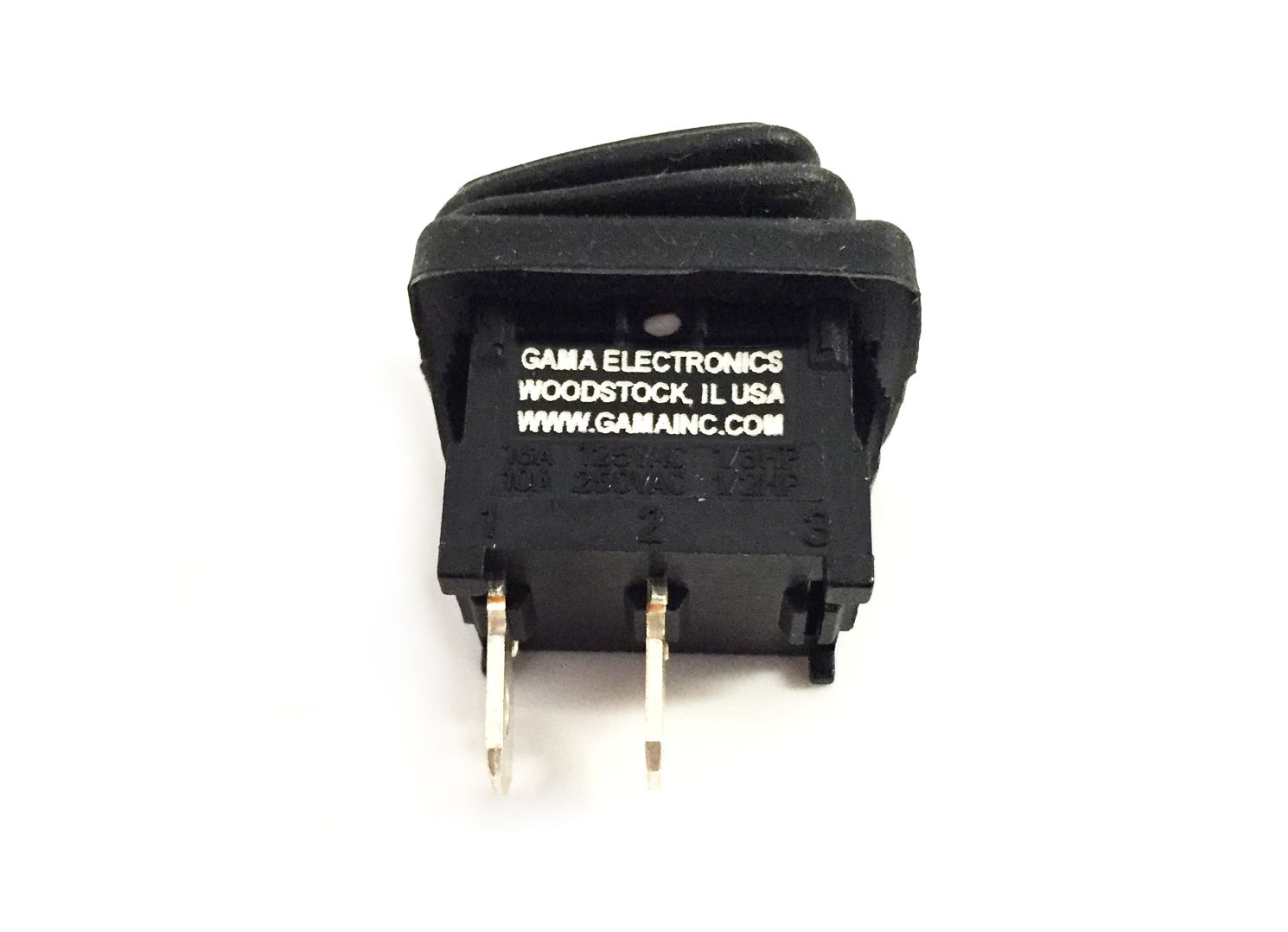

  • 3/16 inch quick connect terminals.
  • Panel cutout is .51 x .77 inches.
  • UL,CSA & CE Approved

Additional information

Switch Type

Standard, Waterproof Enclosure With Wire Leads

Downloads

66A8-02 Drawing PDF (171 KB)

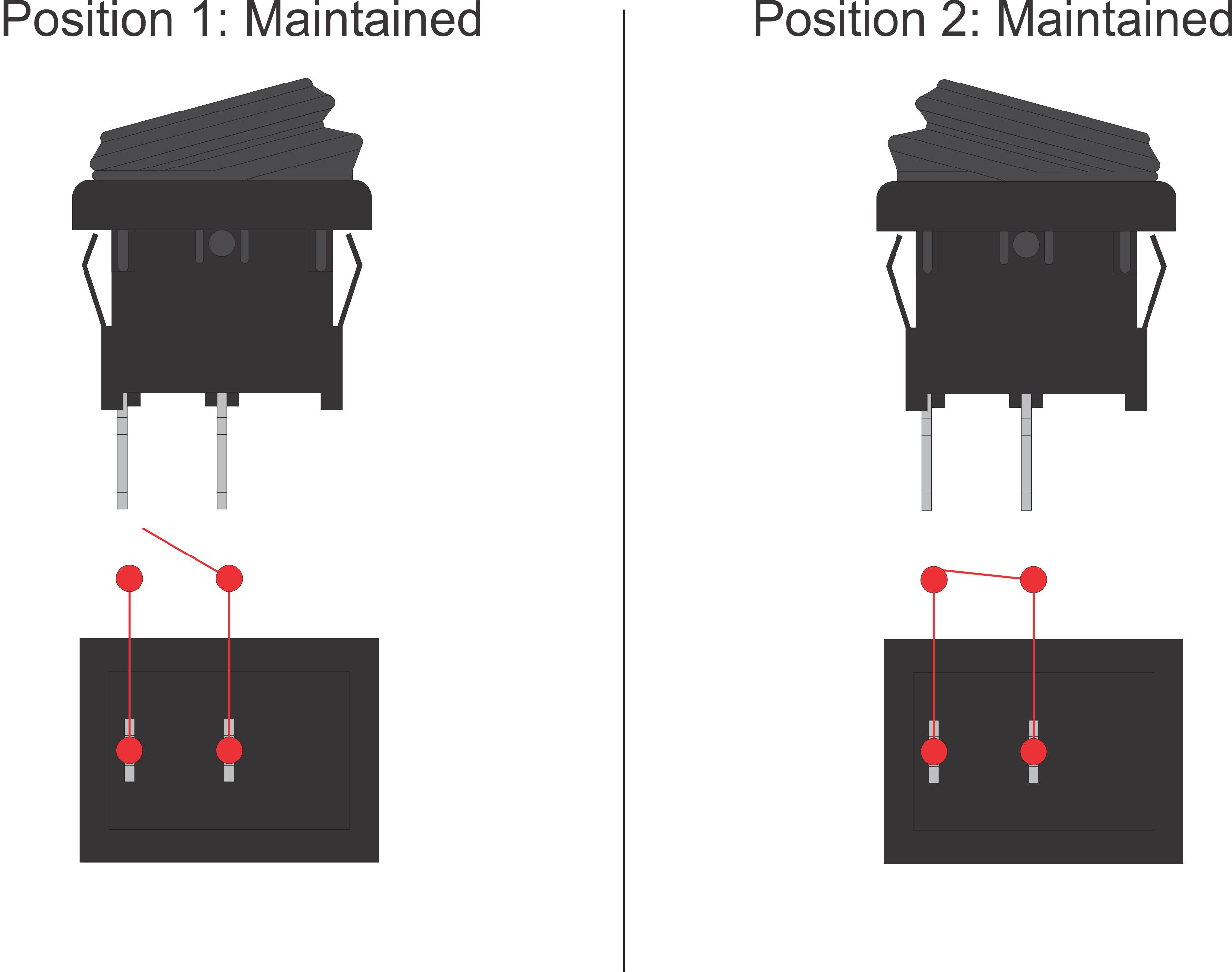

66A8-02 Wiring Diagram PDF (662 KB)
