66F8-02

$8.95$24.95

Waterproof Mini Rocker Switch, SPST Off-Momentary On

Clear

Description

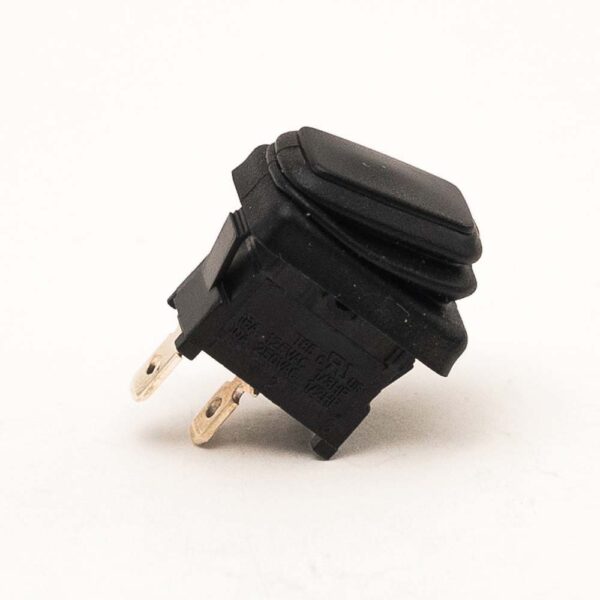

Waterproof Mini Rocker Switch, SPST Off-Momentary On

A unique, patented integral boot makes this popular sized mini Rocker Switch waterproof to IP 65. Single Pole, Single Throw, Off-Momentary On. Contacts are rated at 16A 125VAC, 10A 250VAC, 10A 12VDC. Black body and black button. 3/16 inch quick connect terminals. Panel cutout is .51 x .77 inches.

Specifications

  • SPST Off-Momentary On
  • Rated at 16A 125VAC, 10A 250VAC, 10A 12VDC.
  • Waterproof to IP65
  • 3/16 inch quick connect terminals.
  • Panel cutout is .51 x .77 inches.
  • UL,CSA & CE Approved

Additional information

Switch Type

Standard, Waterproof Enclosure With Wire Leads

Downloads

66F8-02 (Standard Model) Drawing PDF (667 KB)
WP66-02 (Waterproof Model) Drawing PDF (656 KB)
66F8-02 Wiring Diagram PDF (661 KB)
