80APRC

$39.95

80 Amp Reverse Polarity DC Motor Control

SKU: 80APRC Categories: ,

Description

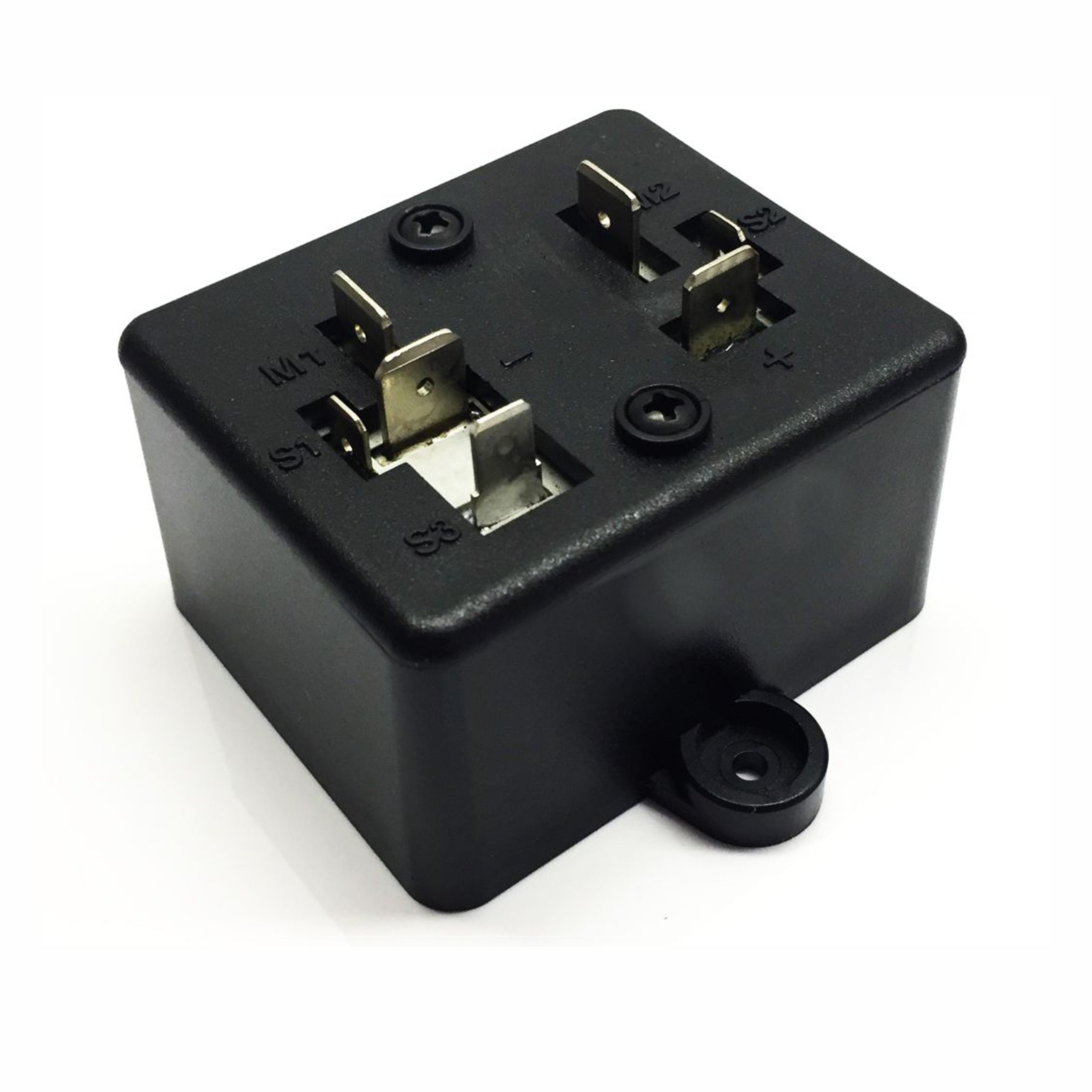

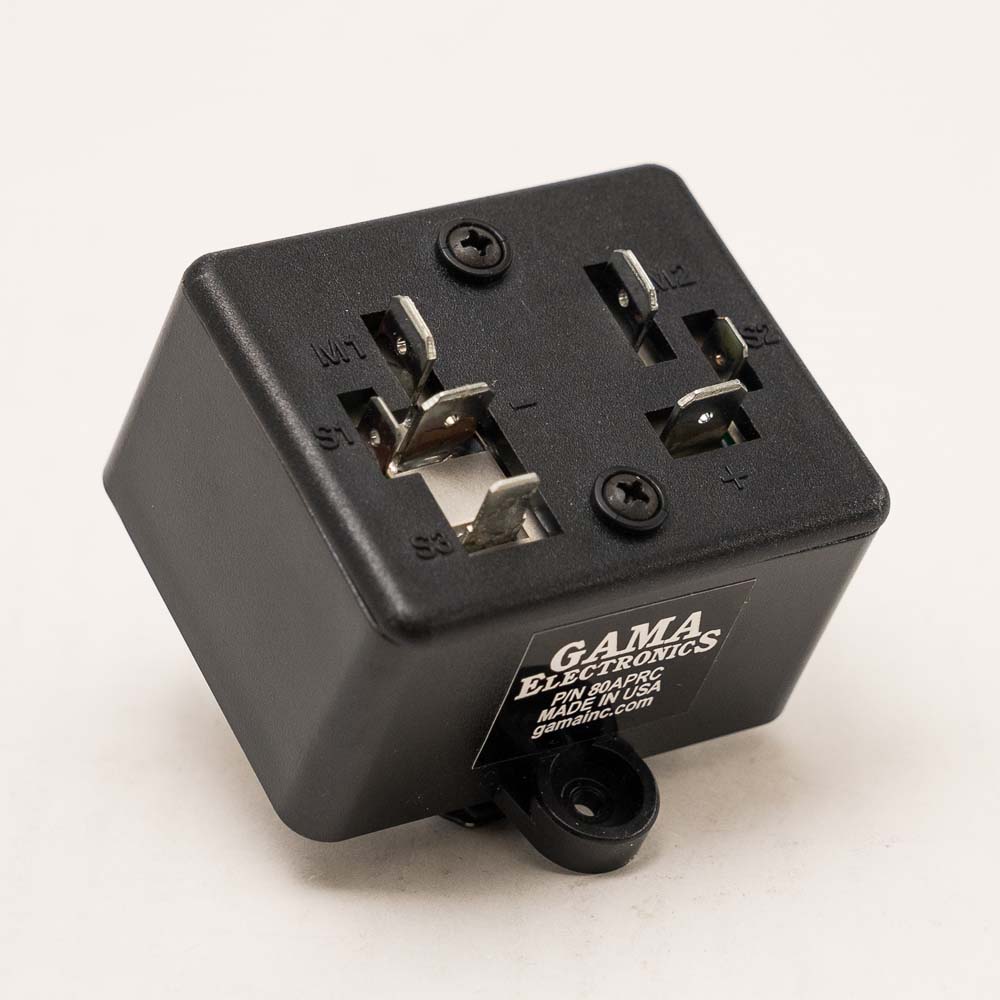

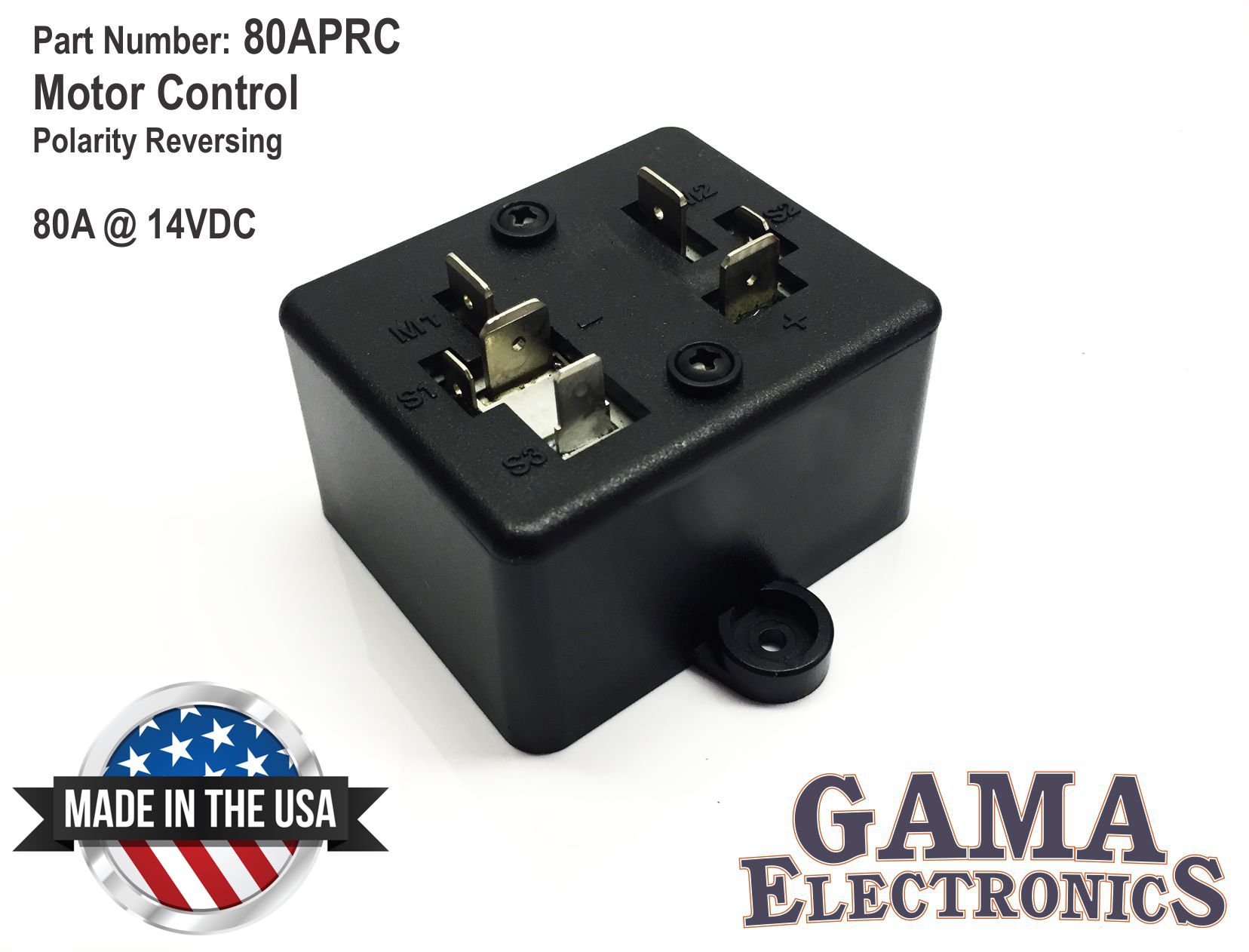

80 Amp Reverse Polarity DC Motor Control

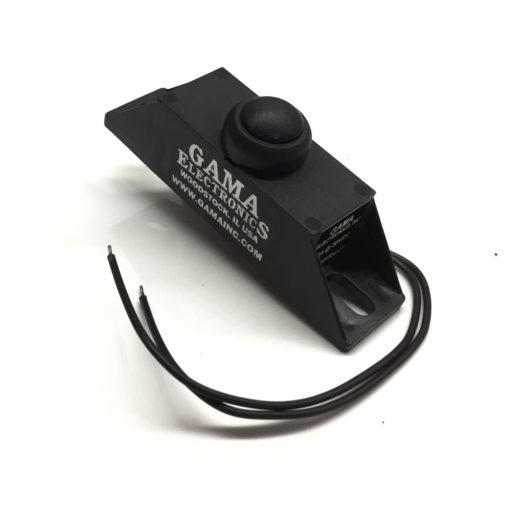

This is a high power control used for bi-directional control of a DC motor. The control incorporates 80 amp 14 VDC relays and is designed for controlling winches, jacks and lifts that use bi-directional DC motors. We have successfully tested the control at 80 amps, 14VDC. A single pole, double throw On-Off-On switch is required to activate the relays.

Specifications

  • Polarity Reversing
  • Rated at 80 amp @ 14VDC
  • Enclosure is polycarbonate
  • Size is approximately 2.9″L x 2.3″W x 1.6″H.

Downloads

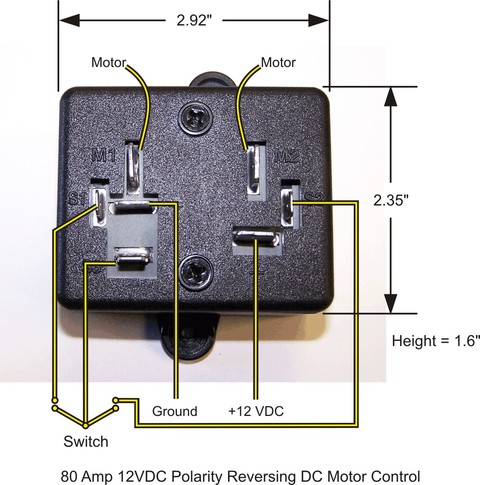

80APRC Wiring Diagram PDF (679 KB)
80APRC Drawing PDF (129 KB)
