Hand-held pendant for use with RF340-4PR-ASL.

SKU: HP4PR-ASL Categories: ,

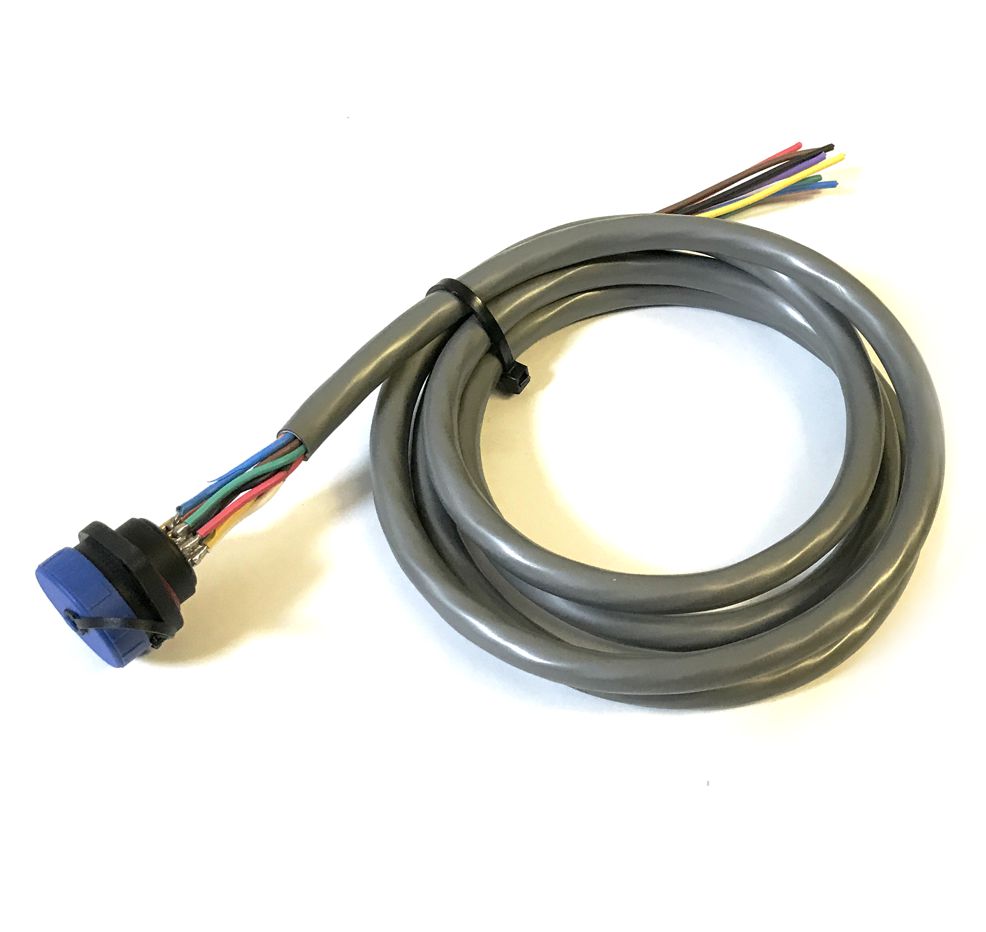

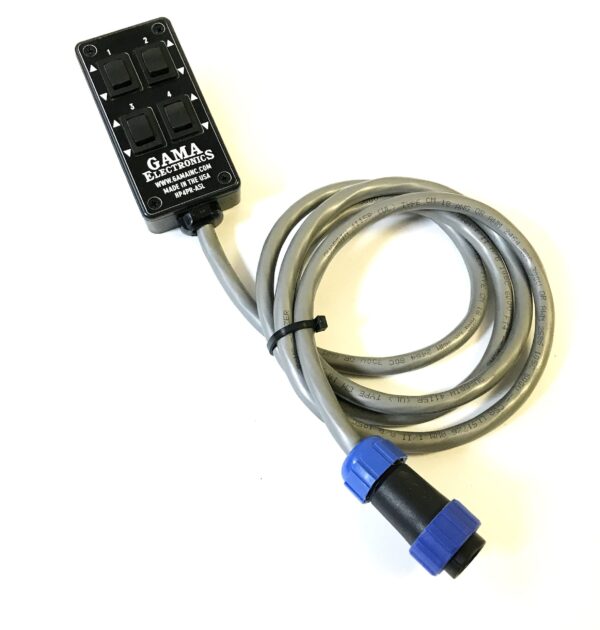

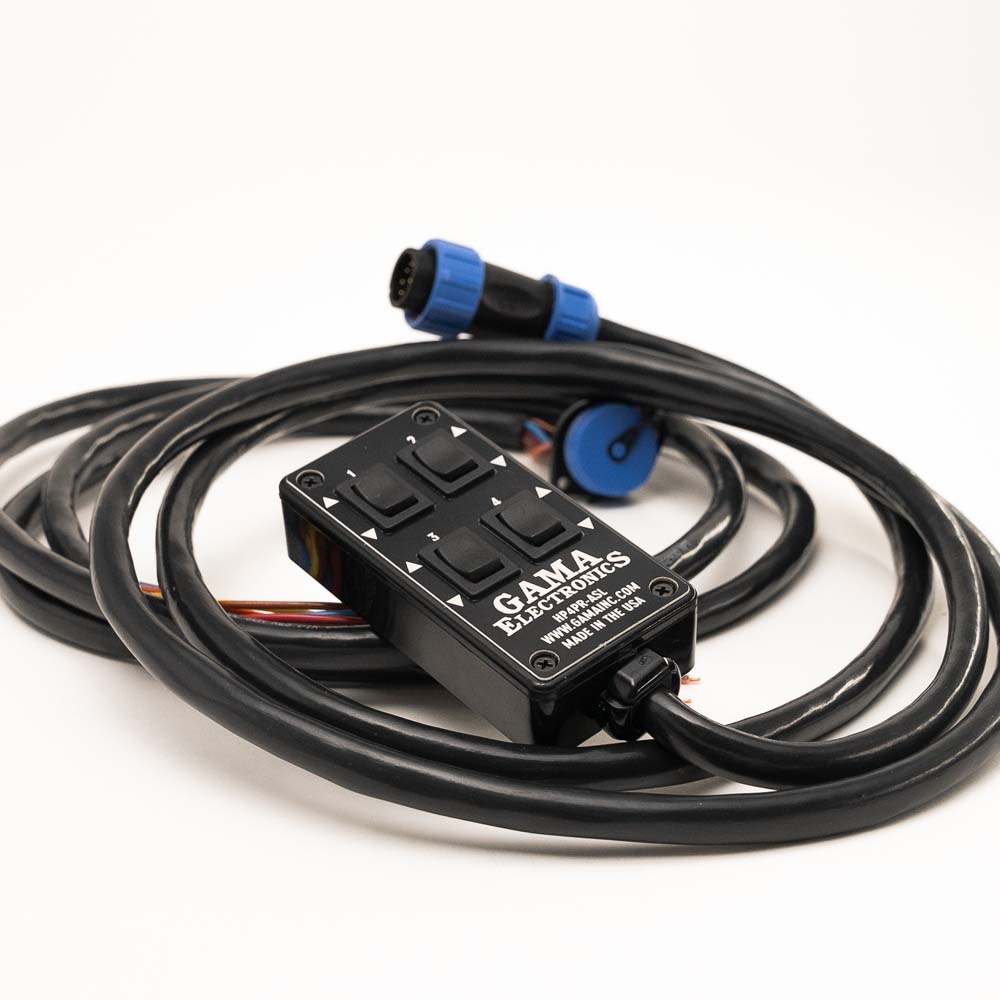

The HP4PR-ASL is a hand-held pendant for use with RF340-4PR-ASL. The pendant is supplied with a six foot harness that directly connects to the manual switch connections on the RF340-4PR-ASL receiver. The harness has a circular connector that can be mounted in a 7/8″ diameter hole and secured with two screws. The pendant has the mating connector to the harness and also includes six feet of cable. The pendant utilizes four momentary rocker switches that allow bidirectional control of each of the four polarity reversing outputs.


  • For use with RF340-4PR-ASL

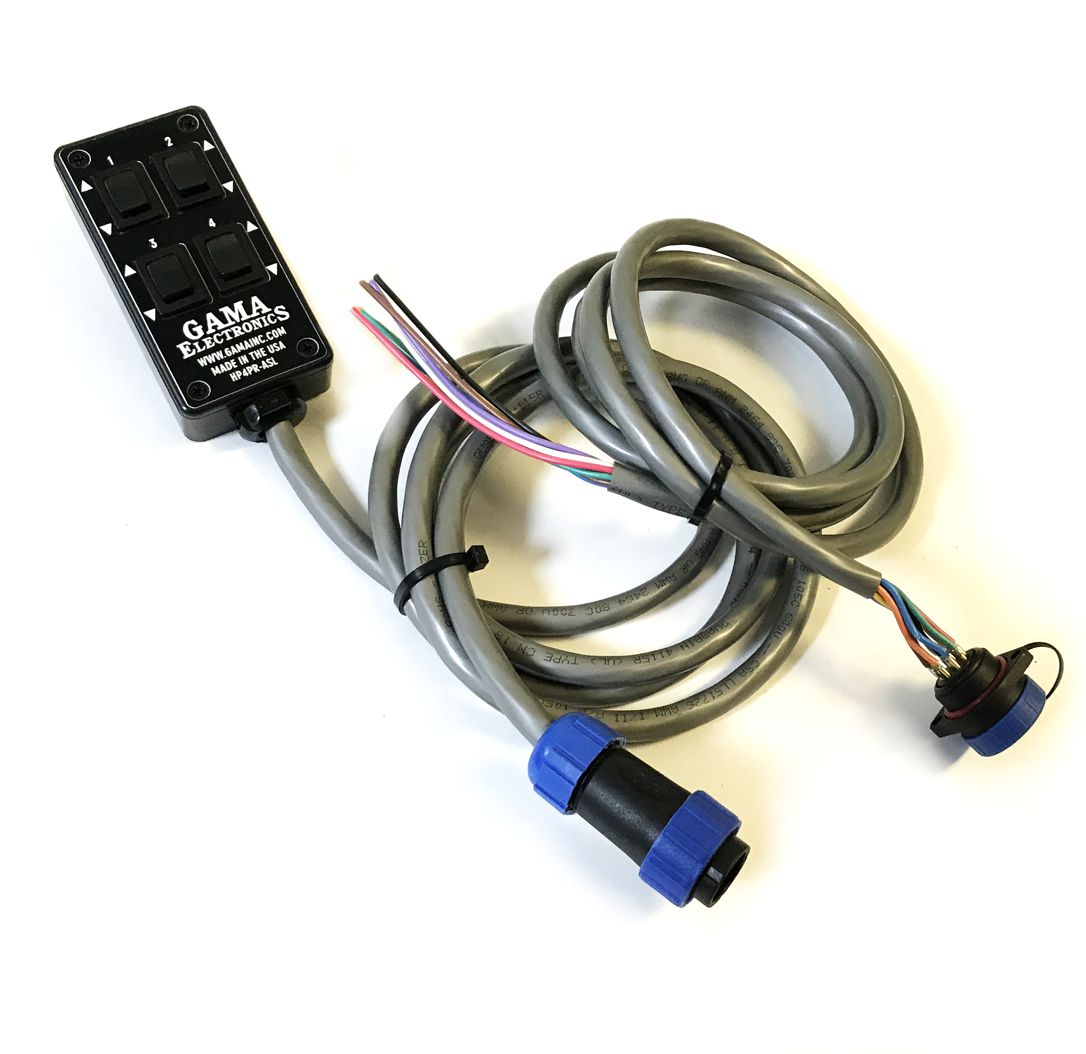

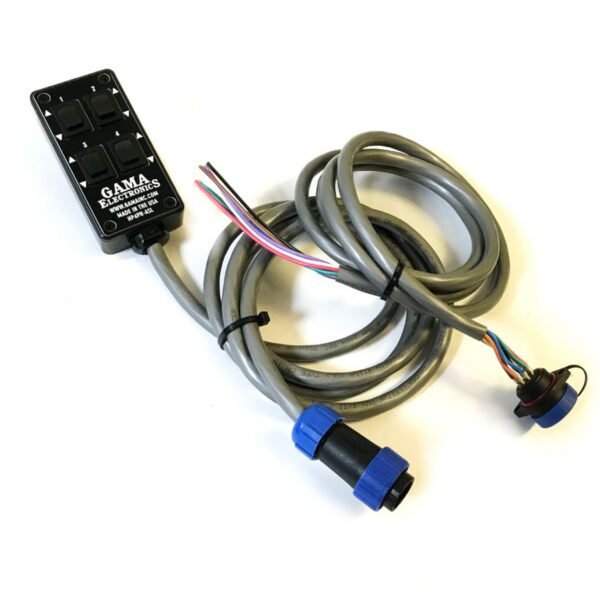

  • Assembly includes pendant and harness
  • Pendant and harness each supplied with six feet of cable
  • Pendant dimensions are approximately 4″ L x 2″ W x 1″ H.

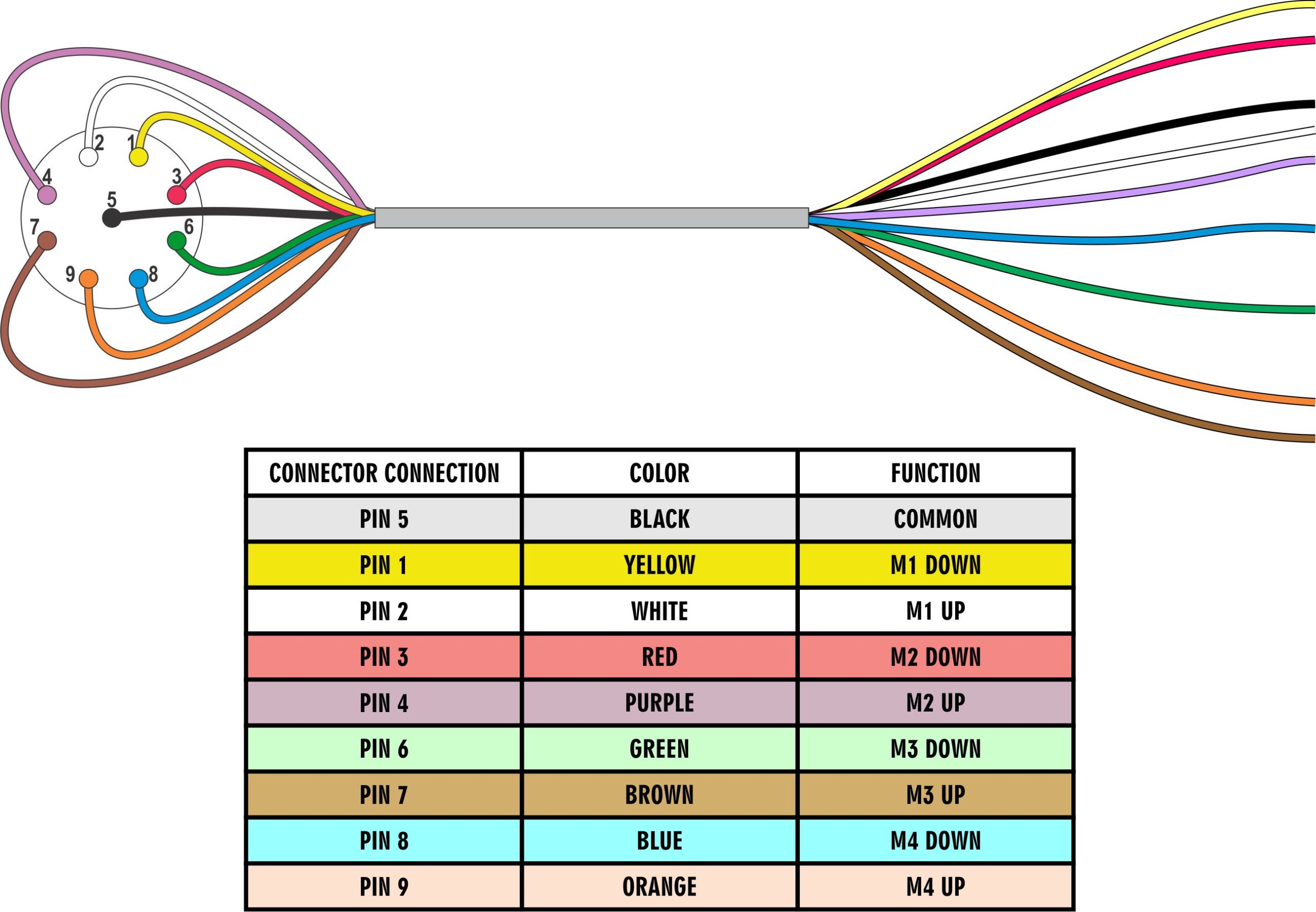

  • Refer to the wiring diagram for hook-up instructions.

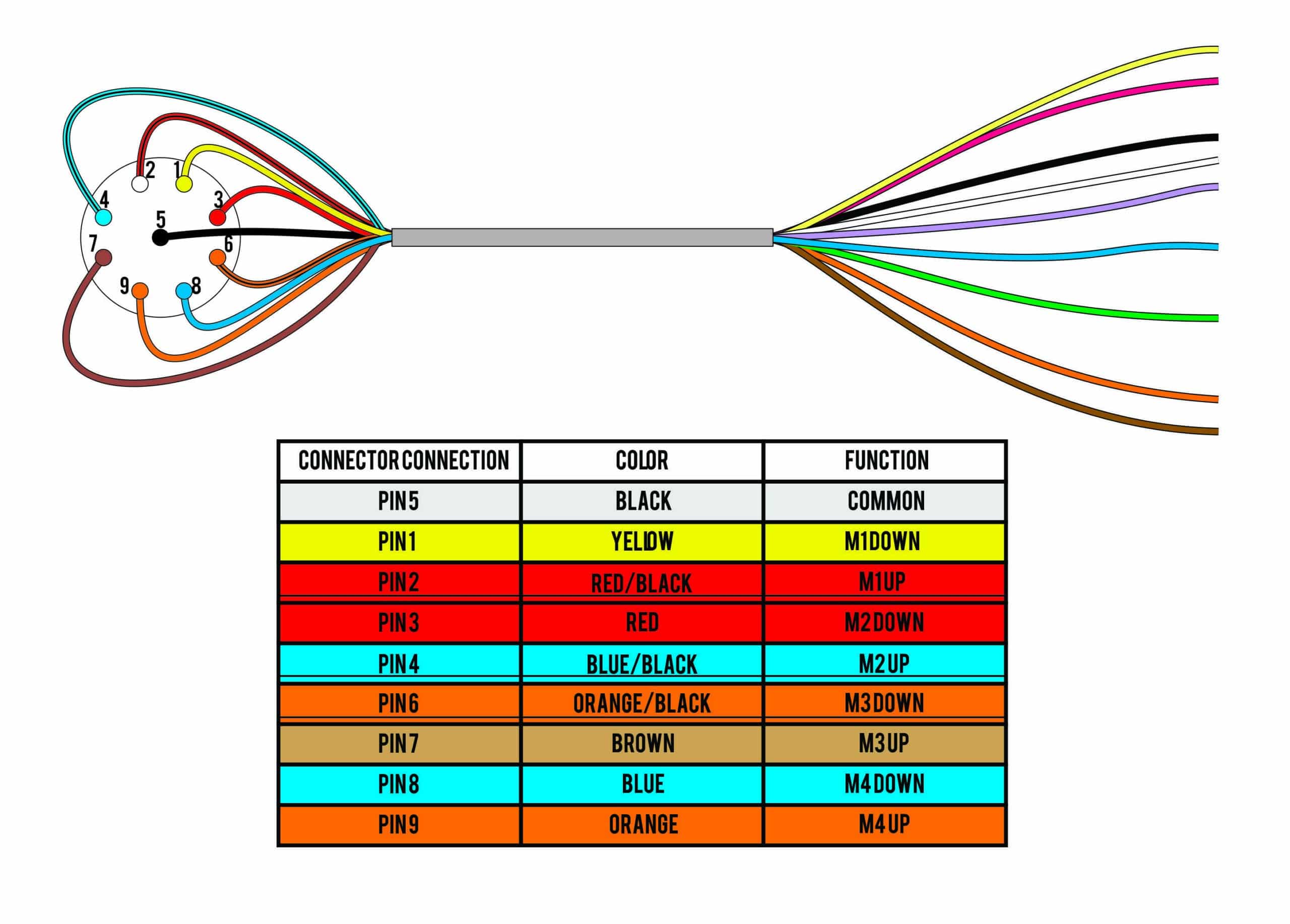

HP4PR-ASL Wiring Diagram (393 KB)
HP4PR-ASL Drawing PDF (1 MB)
