RF021-901C

$104.95$169.95

RF Remote Control System, (9) Contact Closures

Clear
SKU: N/A Categories: ,

Description

RF Remote Control System, (9) Contact Closures

This transmitter receiver pair provides 9 contact closures tied to one common. It operates from a 12VDC input. The outputs are isolated from the DC inputs and can be configured to be either momentary or latching. Output relays rated at 10A @12VDC. The receiver electronics are encapsulated for waterproofing. Suitable for use in harsh environments. Operating temperature range – 0° F to 160° F. Transmit range is greater than 100 feet under normal operating conditions. Proudly made in the U.S.A.

Specifications

  • Frequency: 340 MHz.
  • Input voltage: 12VDC with reverse polarity protection.
  • The output relays are rated at 10A @ 12VDC.
  • Momentary or latching operation.
  • Operating temperature range: 0° F to 160° F.
  • Receiver dimensions are approximately 6″ L x 6″ W x 1″ H.
  • Transmit range is greater than 100 feet under normal operating conditions.
  • Proudly made in the U.S.A.

Additional information

Communication Range

Long Range, Standard

Enclosure Type

Standard, Waterproof

Downloads

User Manual PDF (96 KB)
RF021-901C Drawing PDF (250 KB)
RF021-901C Wiring Diagram PDF (715 KB)

Accessories

  • A23-6

    A23-6

    6-Pack of A23 12V Alkaline Batteries

    $5.95
  • EPS120050

    EPS120050

    12V Wall Mount Power Supply

    $15.00

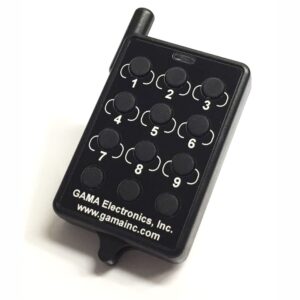

  • RFT340-901C
