RF120V-4-ASL

$124.95$139.95

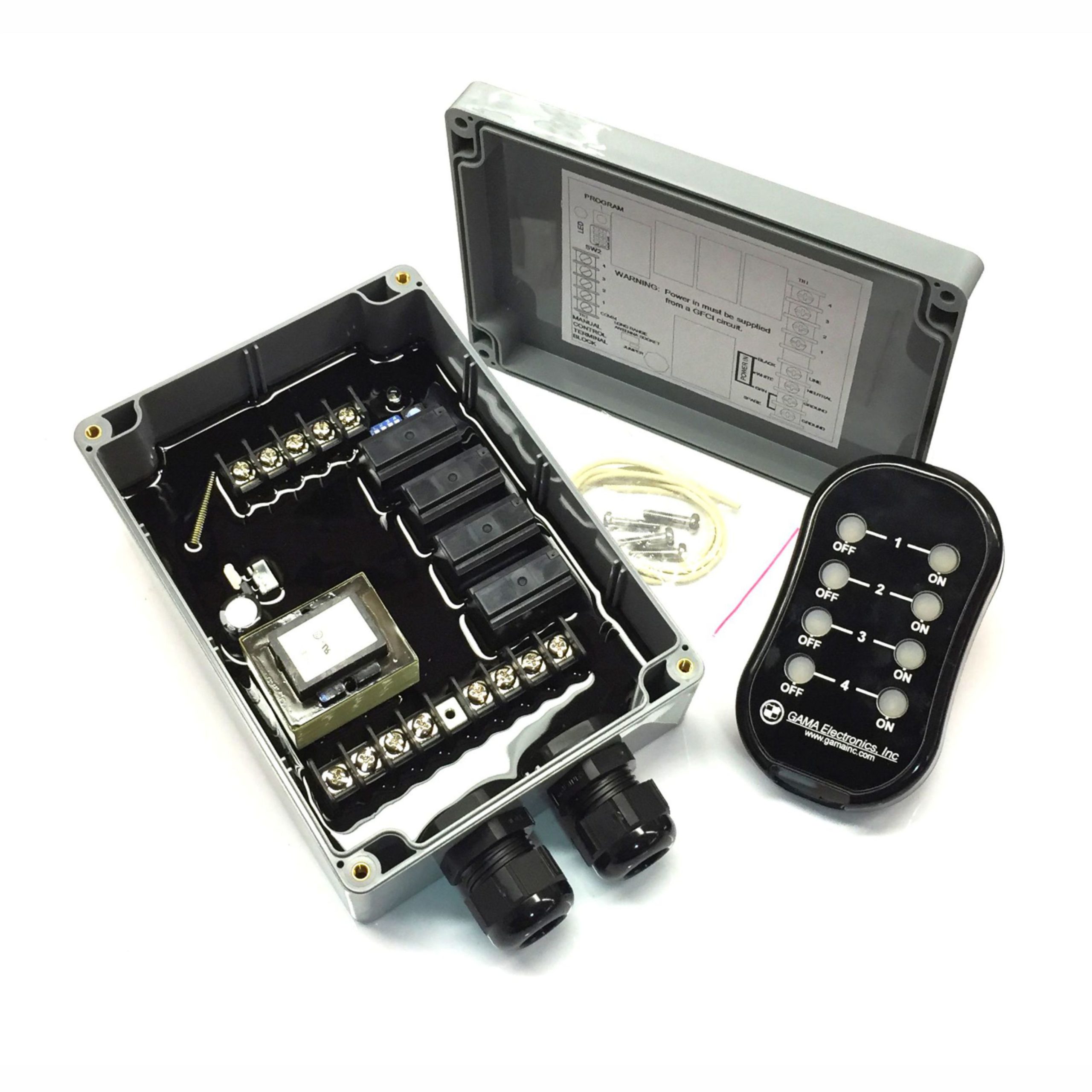

RF Remote Control System, (4) 120VAC outputs with Auxiliary Switch Leads

Clear
SKU: N/A Categories: ,

Description

RF Remote Control System, (4) 120VAC outputs with Auxiliary Switch Leads

The remote control provides four independent 120 VAC outputs. Input power to the receiver is 120 VAC, single-phase 60Hz. The 4 switched outputs provide LINE voltage to the loads and the neutral should be connected to the other side of the loads. The maximum current rating of all 4-outputs is 20-amperes.

Specifications

  • Frequency: 340MHz.
  • Input voltage: 120VAC.
  • The output relays are rated at 20A @120 VAC, 1HP 120 VAC.
  • Operating temperature range: 0°F to 160°F.
  • Transmit range is 100 feet under normal operating conditions.
  • Up to 12 keyfob transmitters can be used with each receiver.

Additional information

Communication Range

Long Range, Standard

Downloads

RF120V-4-ASL Instructions PDF (80 KB)
RF120V-4-ASL Wiring Diagram PDF (334 KB)
RF120V-4-ASL Drawing PDF (479 KB)
