24V DC RF Remote Polarity Reverse Control with auxiliary switch leads


RF Remote Polarity Reverse Control w/aux. switch leads – 24 VDC

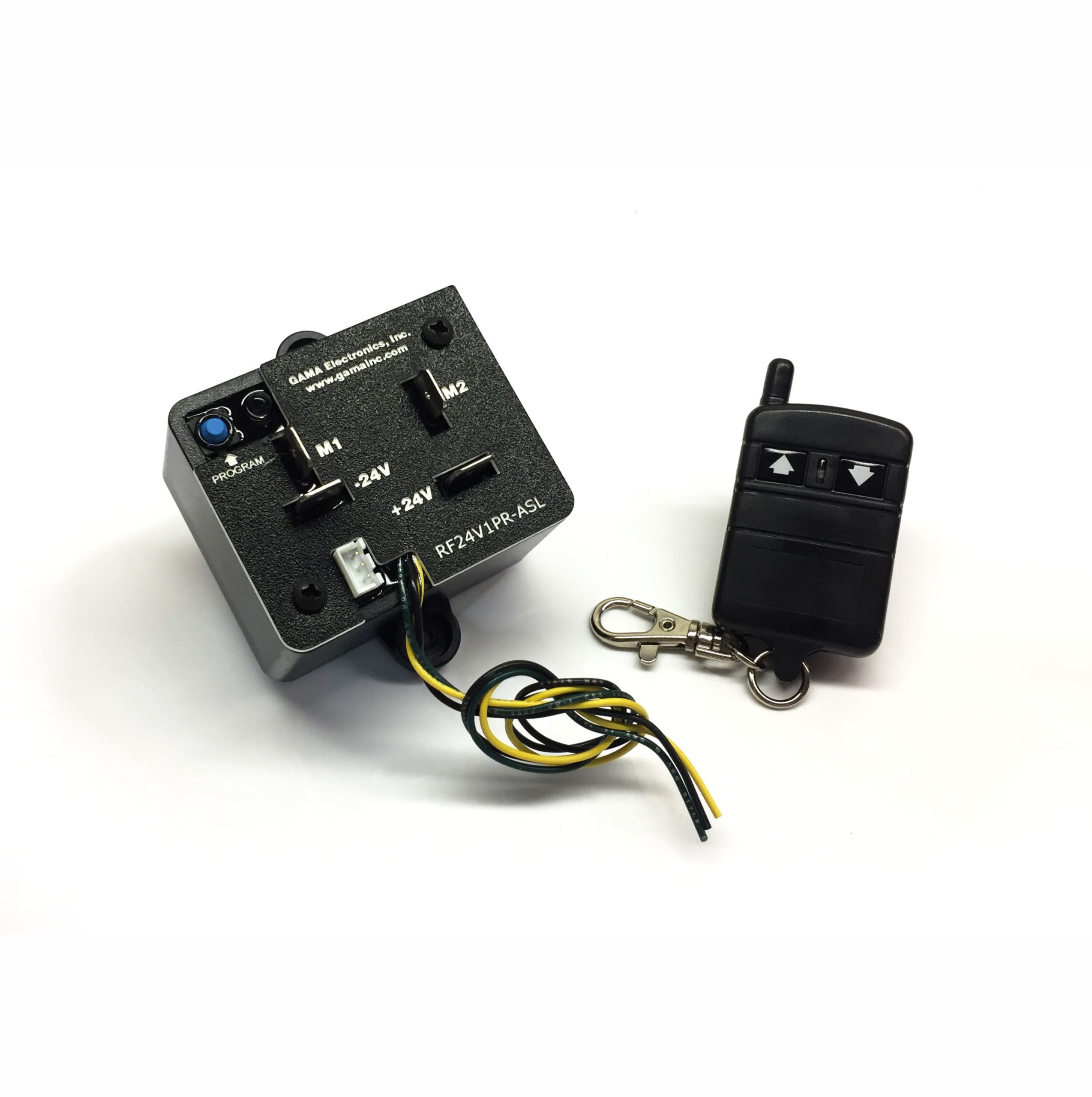

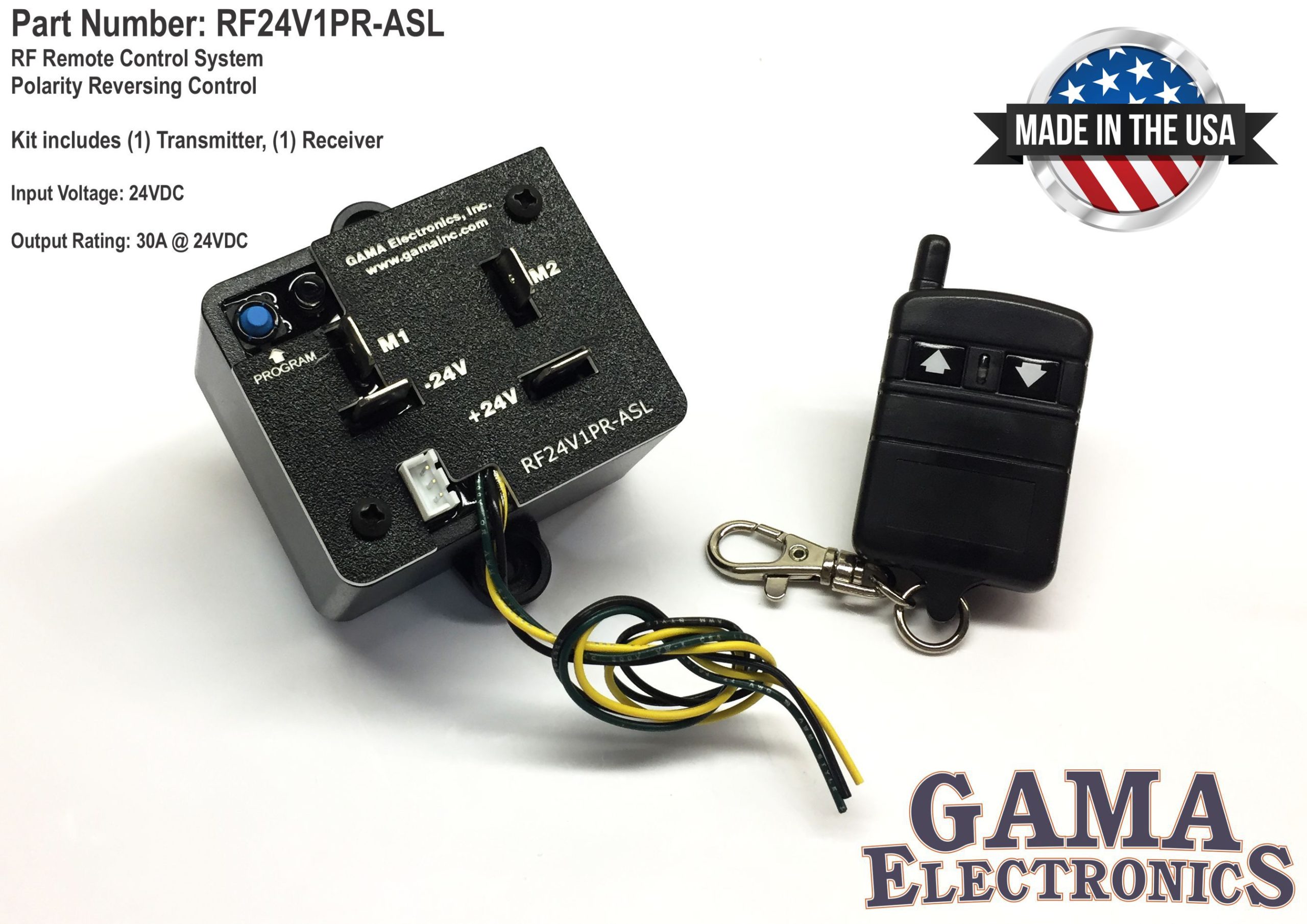

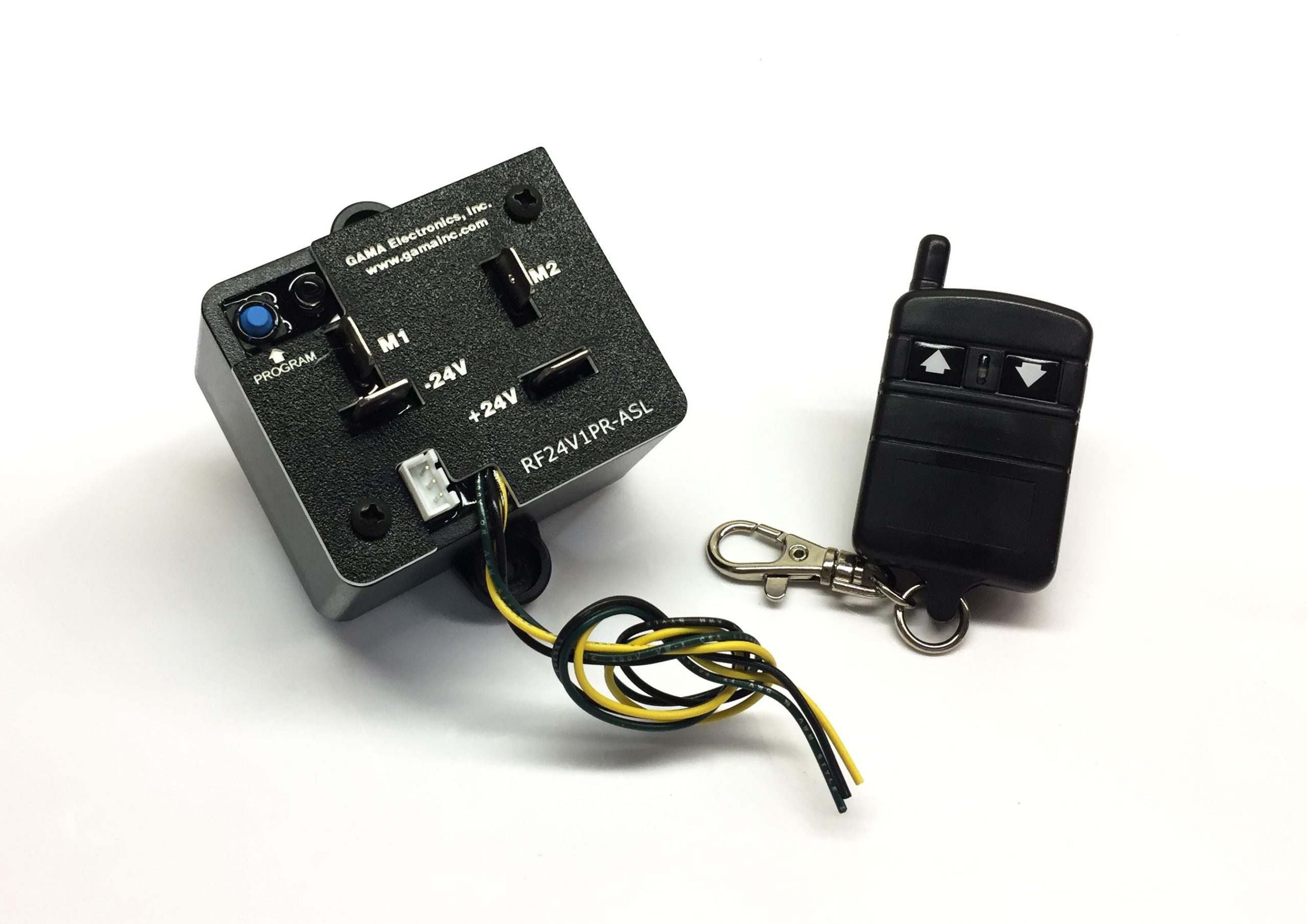

Compact 24VDC Polarity Reversing R.F. Remote Control transmitter & receiver are designed for bi-directional control of DC motors. The output relays are rated at 30A @24VDC.

This system is ideal for controlling lifts, jacks, winches, slide-outs, awnings and agricultural applications where 24 VDC polarity reversing DC motors are used.  The keyfob transmitter has two buttons . The left button runs the motor in one direction and right button runs the motor in the opposite direction.  There are also three lead wires that allow for an auxiliary On-Off-On switch to be connected. This permits operation of the control without using a transmitter.

Momentary or Latching Output:  The transmitter and receiver can be configured for momentary or latching operation.  For momentary operation, the output of the receiver will be active for as long as the transmitter switch is depressed, and will turn off when the switch is released.  In the latching configuration, the receiver output will turn on as soon as the transmitter switch is depressed and released.  To turn off the latching output, the transmitter switch must be depressed and released again.
The receiver electronics are encapsulated for waterproofing and it is suitable for use in harsh environments. Operating temperature range – 0° F to 160° F.  The robust ABS  enclosure dimensions are approximately 3″ L x 3″ W x 1.5″ H.  The receiver has two mounting tabs.

There are four 1/4″ terminals for the connections.

Transmit range is greater than 100 feet under normal operating conditions. FCC Approved. Proudly made in the U.S.A.

This item is now available with our rechargeable transmitter. This transmitter lasts 12 times longer than our standard transmitter with a single charge. When the battery gets low it can be recharged with a USB connector. It is an ideal option for applications that utilize momentary operation.

Additional information

Communication Range

Long Range, Standard

Enclosure Type

Standard, Waterproof

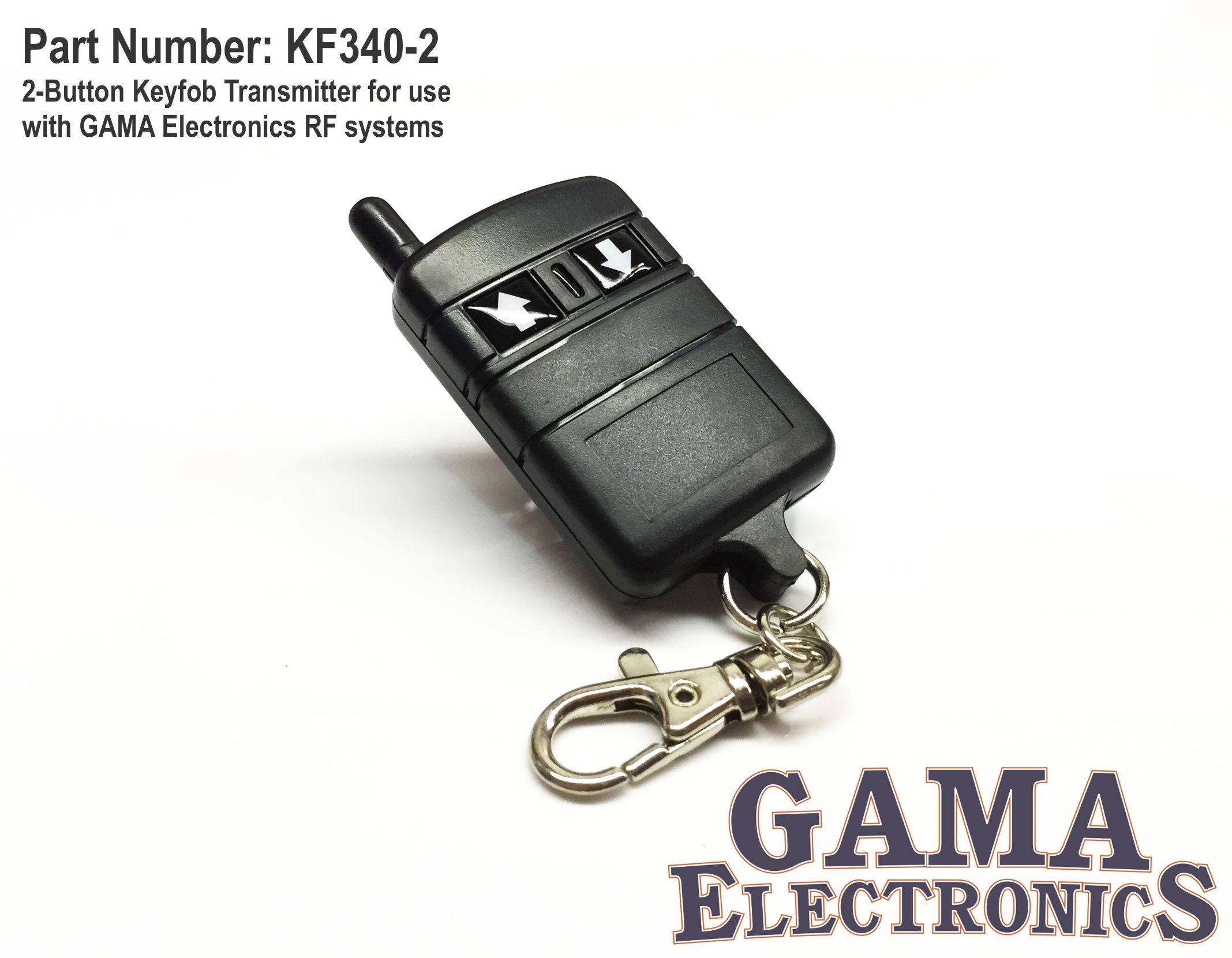

Transmitter Type

Extended Battery Life, Rechargeable (2-Button), Standard, Waterproof

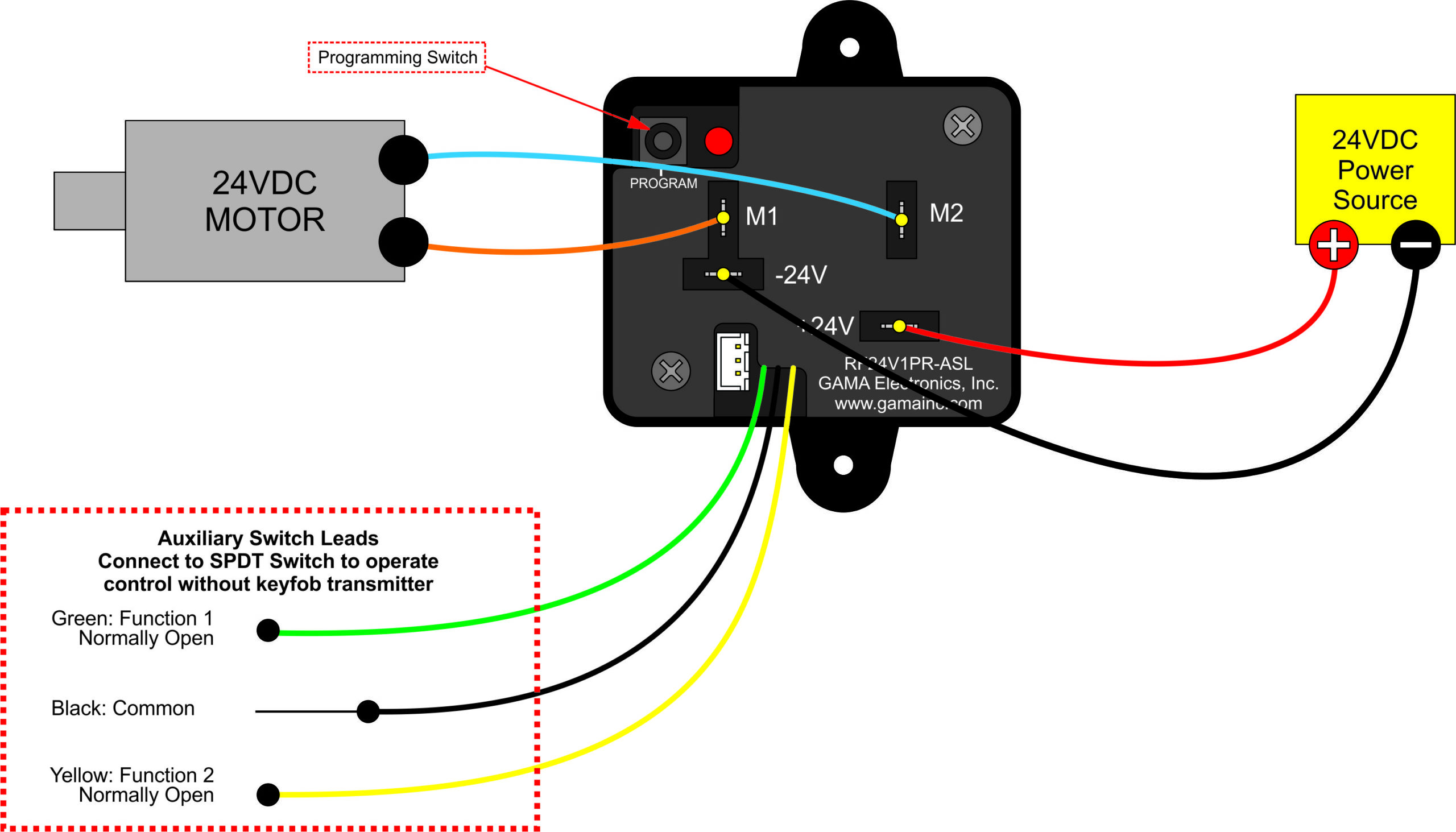

RF24V1PR-ASL Wiring Diagram PDF (663 KB)
RF24V1PR-ASL Drawing PDF (2 MB)
RF24V-1PR-ASL Instruction Manual PDF (2 MB)
