RF Remote Control System, 4-Motor Polarity Reversing 12VDC Control


Versatile four motor 12VDC Polarity Reversing R.F. Remote Control transmitter & receiver are designed for bi-directional control of up to four DC motors. The output relays are rated at 30A  @ 12VDC.

This system is ideal for controlling lifts, jacks, winches, slide outs, awnings and agricultural applications where 12VDC polarity reversing DC motors are used. The receiver electronics are encapsulated for waterproofing and it is suitable for use in harsh environments. The input has reverse polarity protection. Operating temperature range – 0° F to 160° F. Receiver dimensions are approximately 5″ L x 5″ W x 2″ H. Transmit range is greater than 100 feet under normal operating conditions. FCC Approved.

The transmitter has two buttons assigned to each of the four outputs. The up ( ^ ) button runs the motor in one direction and down ( v ) button runs the motor in the opposite direction. There are two “all” buttons which apply 12VDC to all outputs to run the four motors simultaneously. The outputs are energized for as long as the buttons are depressed.



Additional information

Communication Range

Long Range, Standard

Enclosure Type

Standard, Waterproof

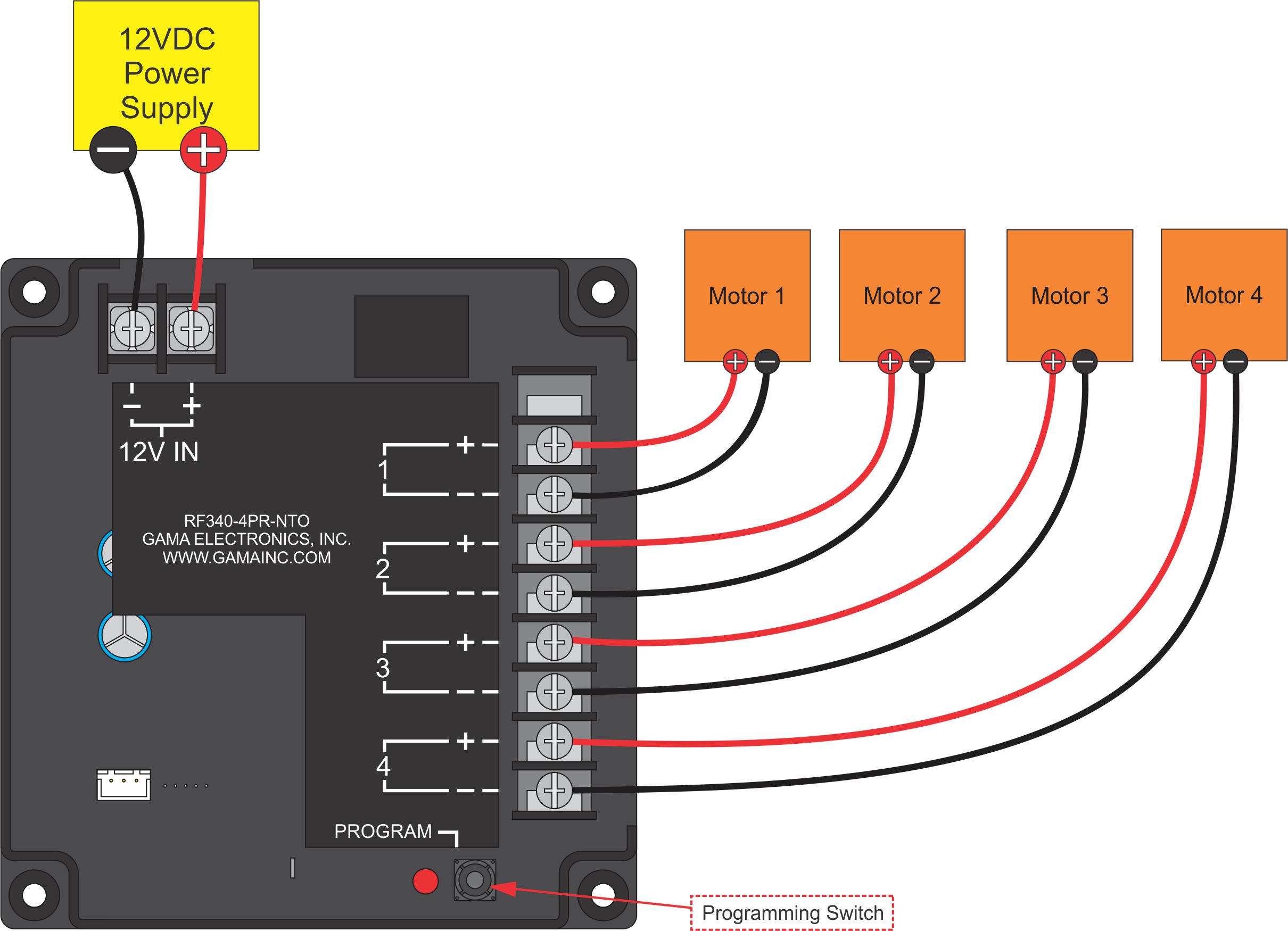

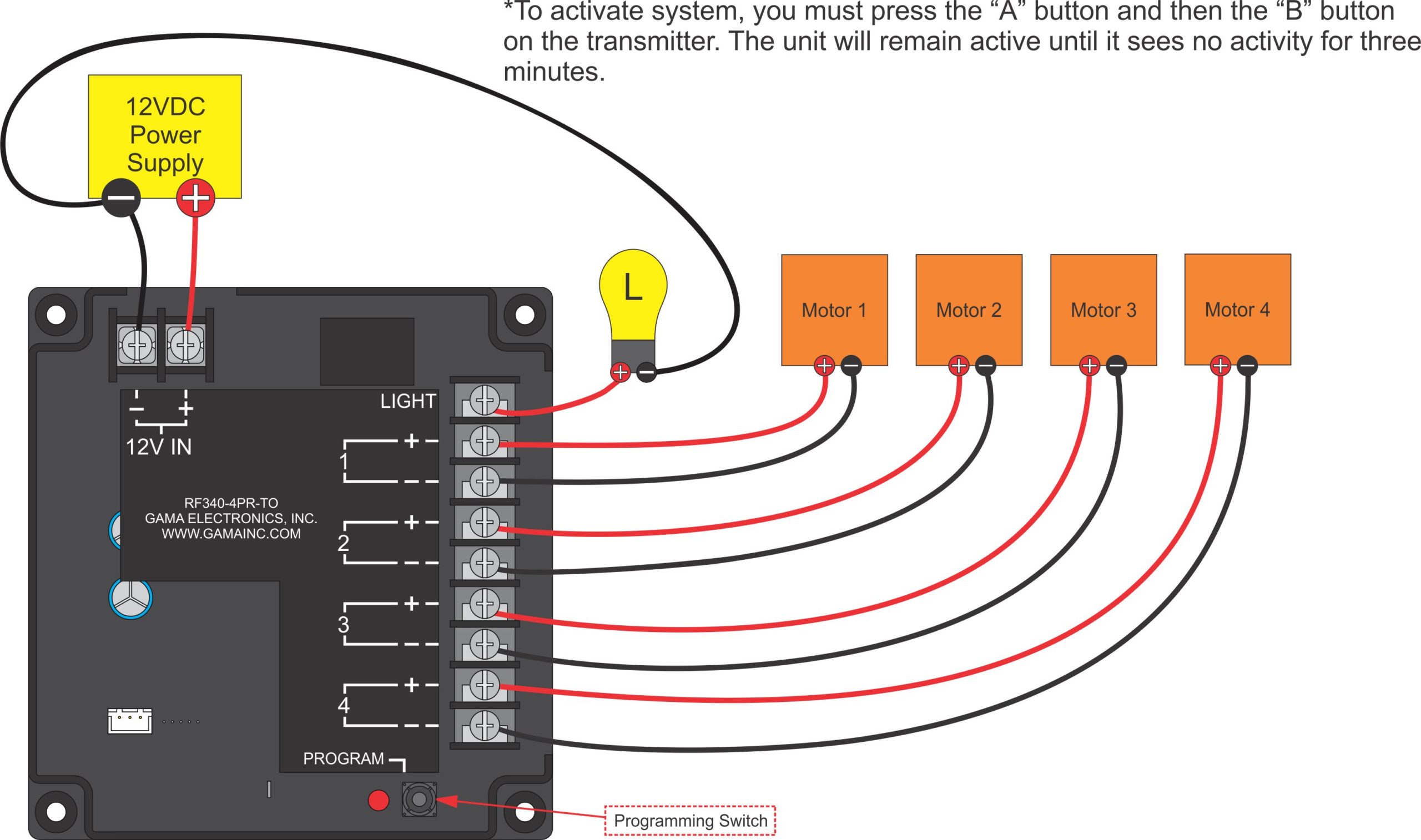

RF340-4PR Wiring Diagram for No Timeout Receiver (660 KB)
RF340-4PR Instruction Sheet for No Timeout Receiver (27 KB)
