RFR12V1C

$49.95$124.95

RF Remote Control System Single Pole Double Throw – 12VDC

Clear

Description

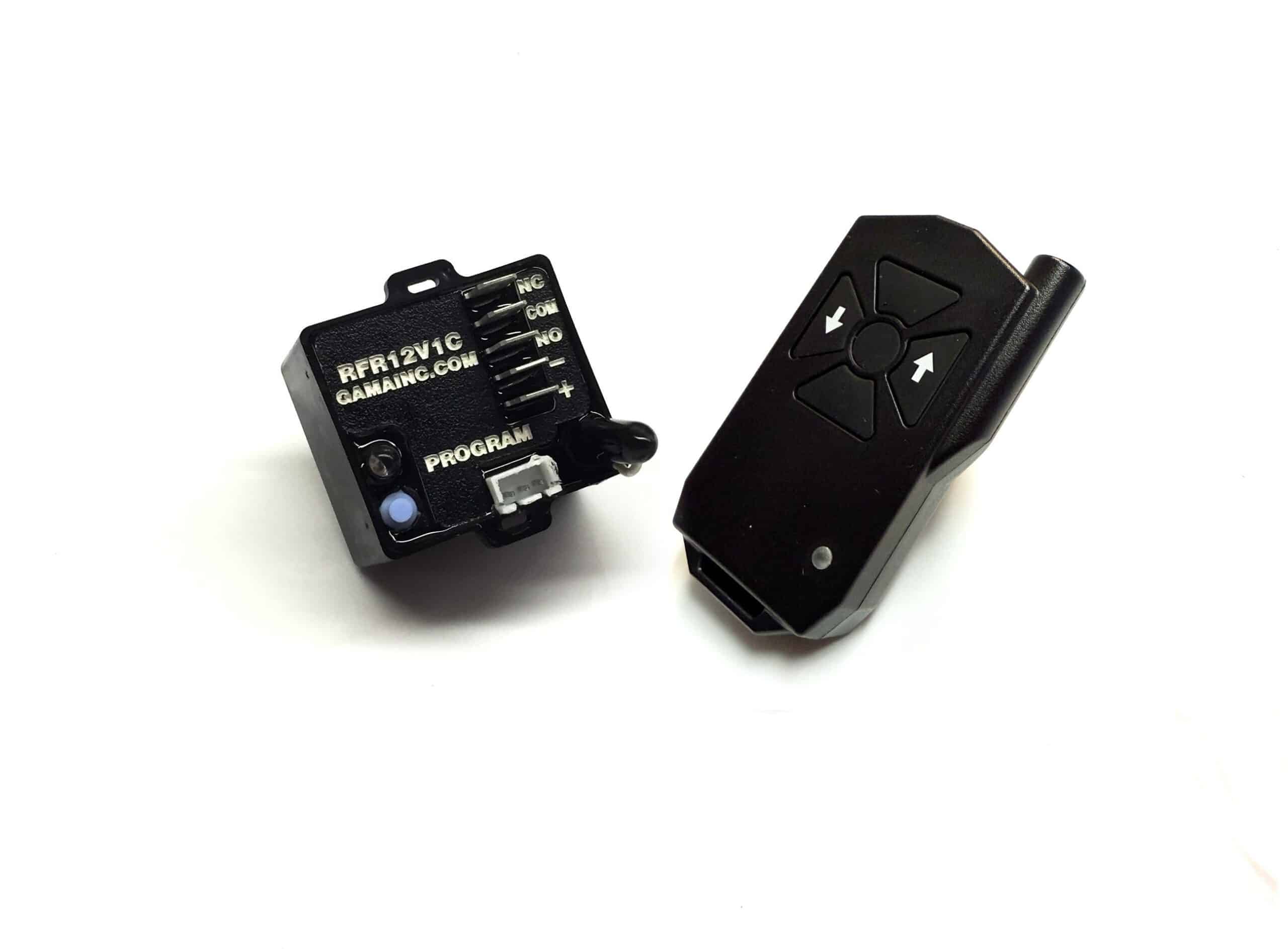

RF Remote Control System Single Pole Double Throw – 12VDC

Compact and versatile R.F. Remote Control can be configured for either momentary or latching operation.

This control provides both a normally open and a normally closed relay contacts. The keyfob transmitter has two buttons . The left button is used for momentary operation. Both buttons are used if the latching function is enabled.

The input voltage is 10-15 VDC and is reverse polarity protected. The relay contacts are electrically isolated from the DC inputs. The relay contacts are rated at 10 amps @ 30VDC or 120/240VAC.

The receiver electronics are encapsulated for waterproofing and it is suitable for use in harsh environments. Operating temperature range – 0° F to 160° F. Receiver dimensions are approximately 1.5″ L x 1.5″ W x 1″ H.

There are five 1/4″ terminals for the connections.

Transmit range is greater than 100 feet under normal operating conditions. Up to 12 keyfob transmitters can be used with each receiver. FCC Approved. Proudly made in the U.S.A.

This item is now available with our rechargeable transmitter. This transmitter lasts 12 times longer than our standard transmitter with a single charge. When the battery gets low it can be recharged with a USB connector. It is an ideal option for applications that utilize momentary operation.

Specifications

  • Frequency: 340 MHz.
  • Input voltage is 12VDC and is polarity protected.
  • The output relays are rated at 10 amps @ 30VDC or 120/240VAC.
  • Operating temperature range – 0° F to 160° F.
  • Receiver dimensions are approximately 1.5″ L x 1.5″ W x 1″ H.
  • Transmit range is greater than 100 feet under normal operating conditions.
  • Up to 12 keyfob transmitters can be used with each receiver.

Additional information

Communication Range

Long Range, Standard

Transmitter Type

Extended Battery Life, Rechargeable (2-Button), Standard, Waterproof

Downloads

RFR12V1C Wiring Diagram PDF (701 KB)
RFR12V1C Drawing PDF (297 KB)
RFR12V1C Instruction Sheet (28 KB)
