WP28-3P-MOM

$29.95

Waterproof Toggle Switch, 30A Momentary On-Off-Momentary On

Description

Waterproof Toggle Switch, 30A Momentary On-Off-Momentary On

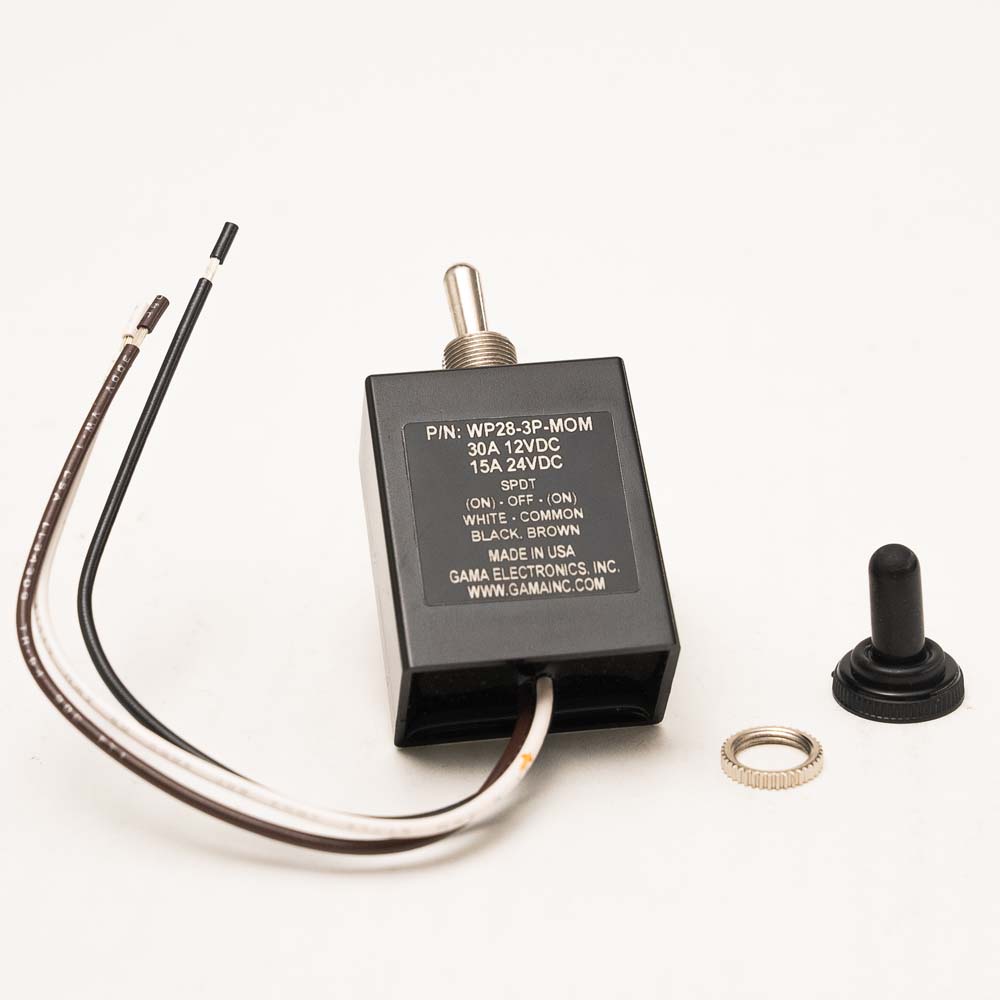

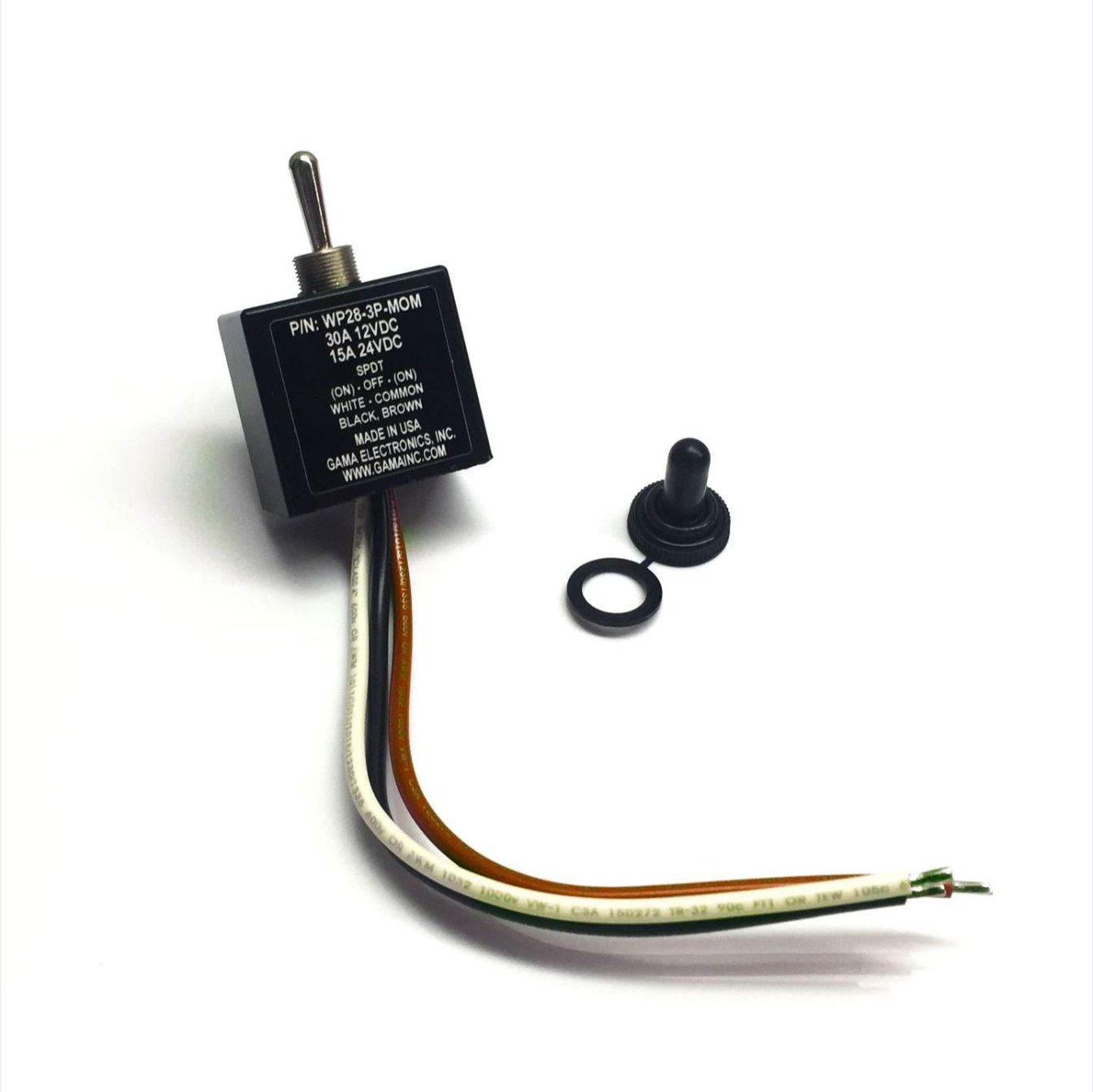

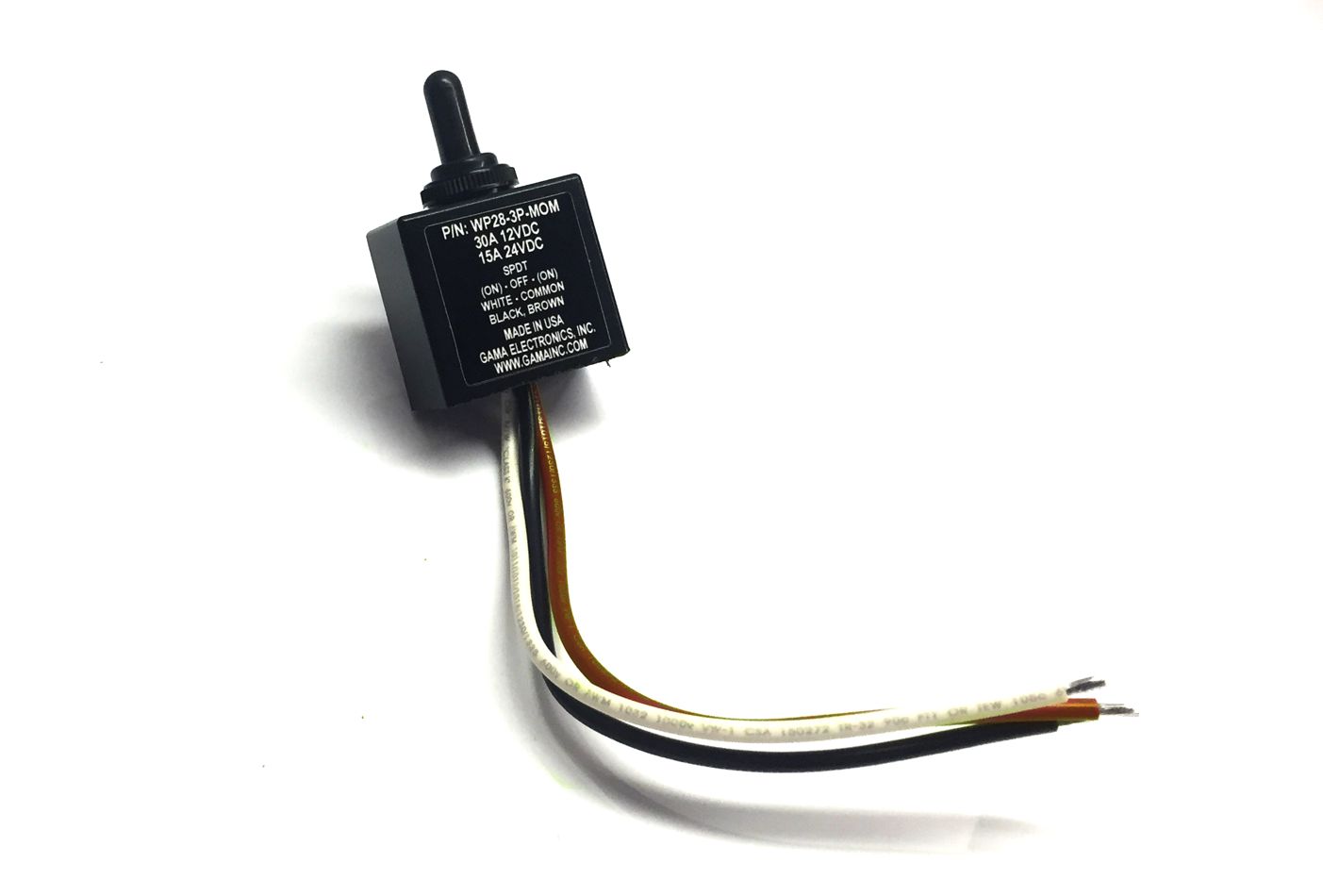

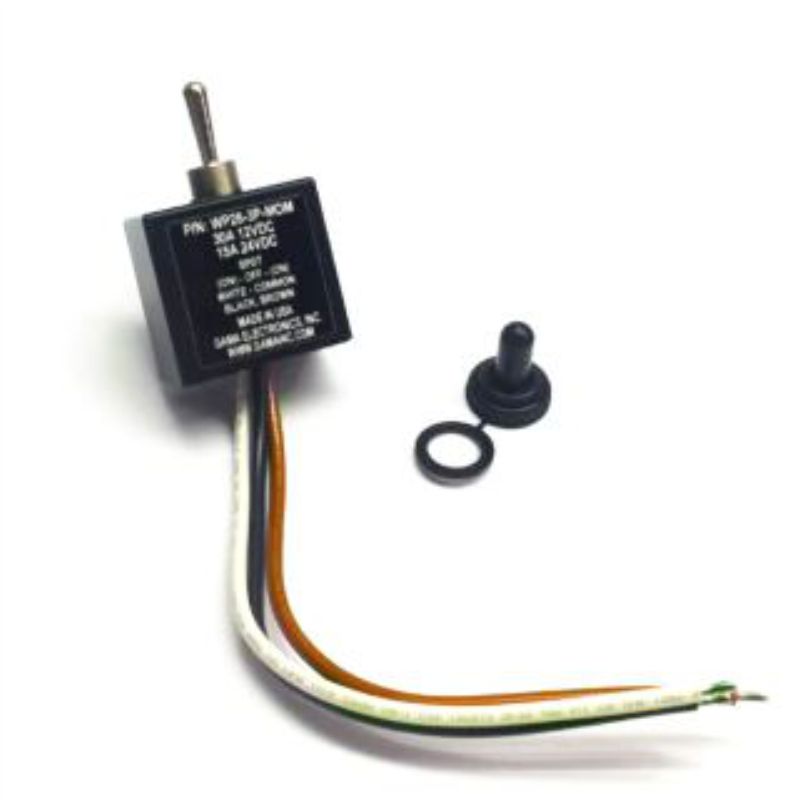

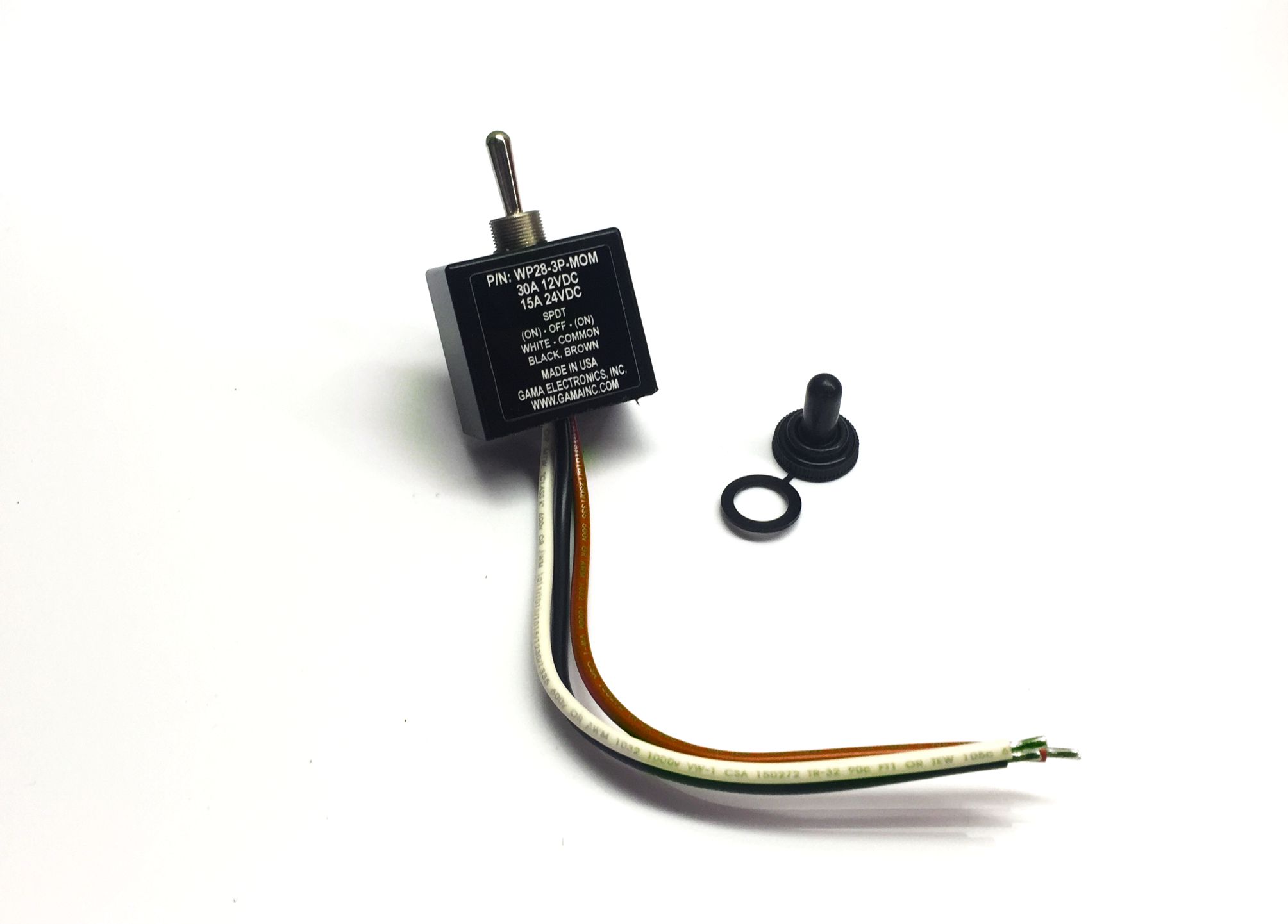

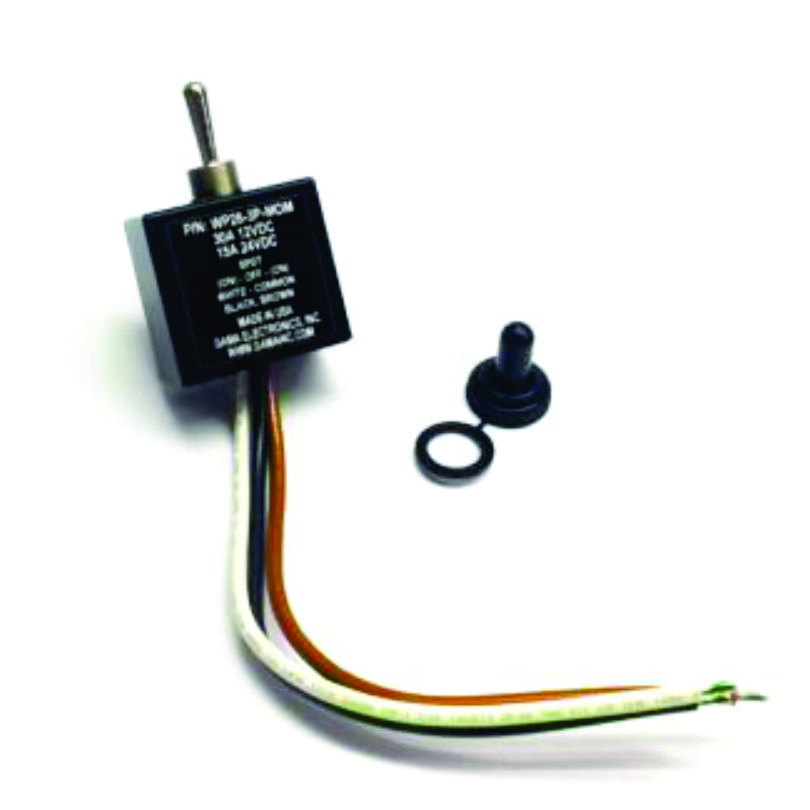

Waterproof, Single Pole Double Throw Momentary On-Off-Momentary On Toggle Switch. This is a 3 position, momentary switch meaning it stays locked in the selected position. The switch body and contacts are embedded in urethane to make them waterproof. There are wire leads for the connections. A rubber boot protects the toggle and front surface of the switch from dirt and moisture. This heavy duty switch mounts in a .48” diameter hole and has 6 inch long wire leads. Note: When installing the switch, we recommend a bead of silicone around the base of the boot to ensure a watertight seal between the switch boot and your mounting surface.

Specifications

  • SPDT Momentary On-Off-Momentary On
  • 30A @ 12VDC
  • 15A @ 125VAC
  • 10A @ 250VAC
  • 1 ½ HP
  • Mounts in a .48” diameter hole and has 6 inch long wire leads
  • Dimensions are 1.5” L x 1” W x 1.5” D
  • UL & CSA Approved

Downloads

WP28-3P-MOM Drawing PDF (656 KB)
