28PR-MTD

$10.95$19.95

Toggle Switch, 30A Polarity Reversing DC Motor Control – Maintained

Clear

Description

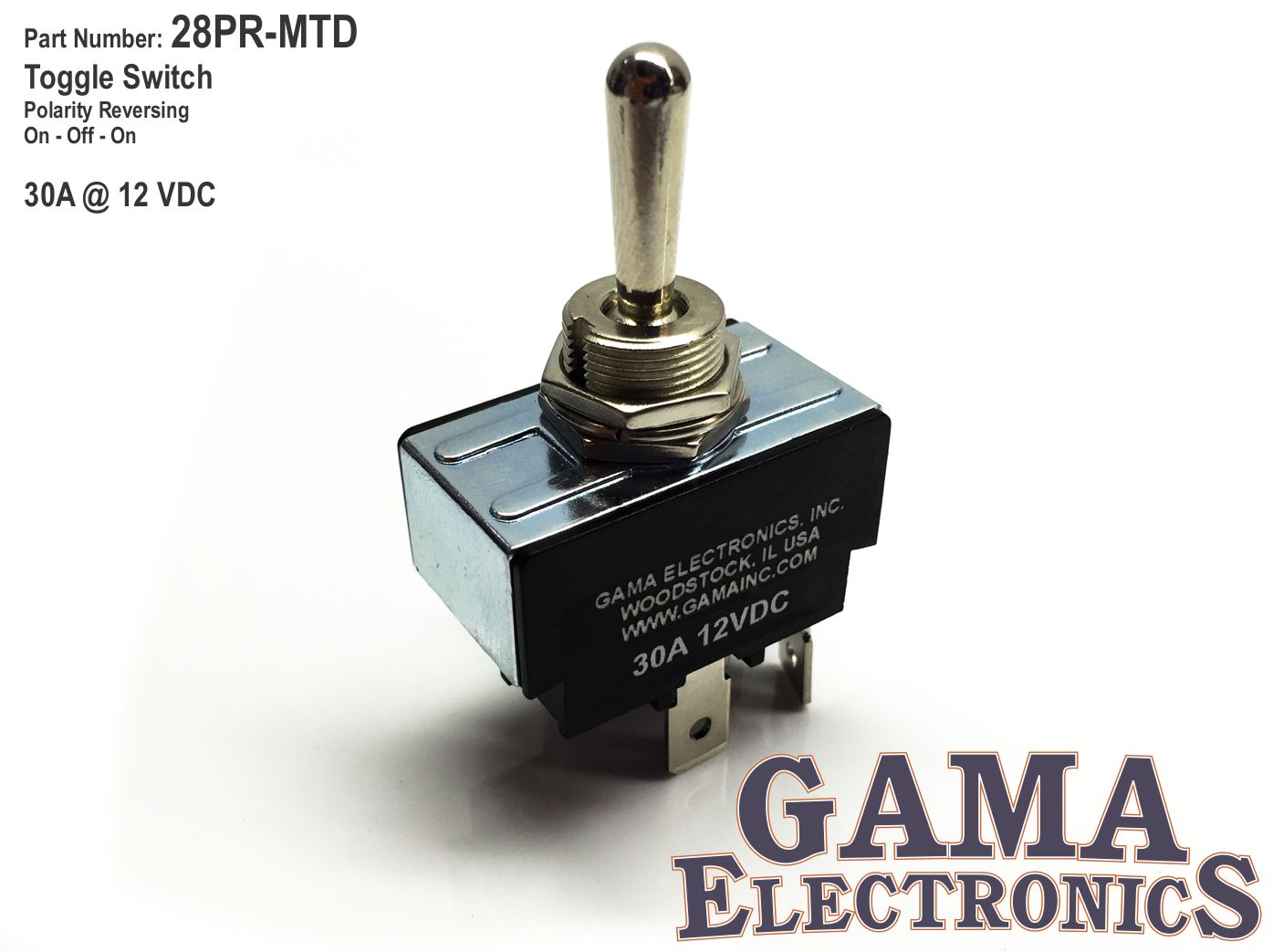

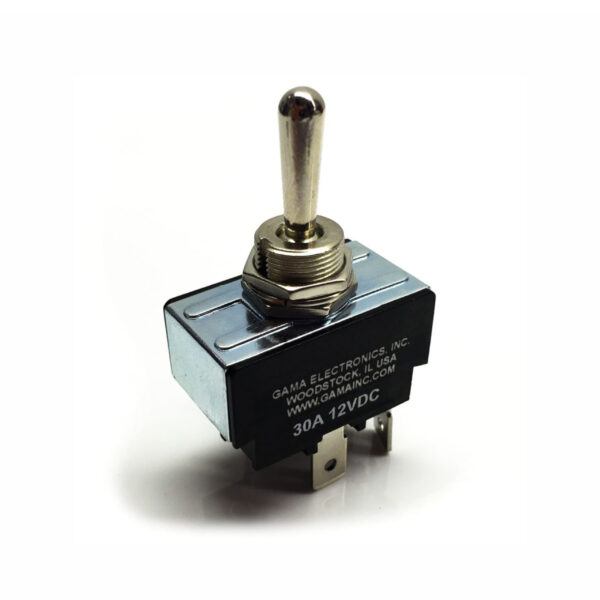

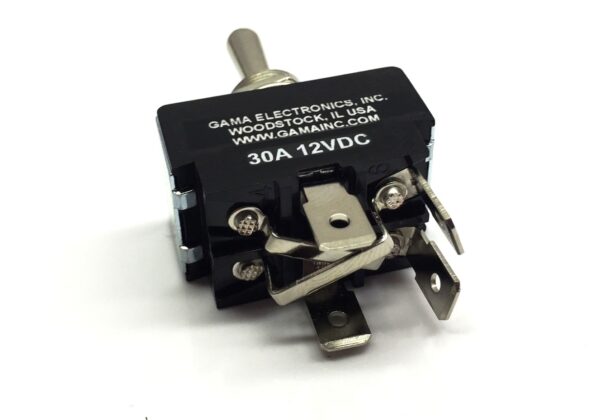

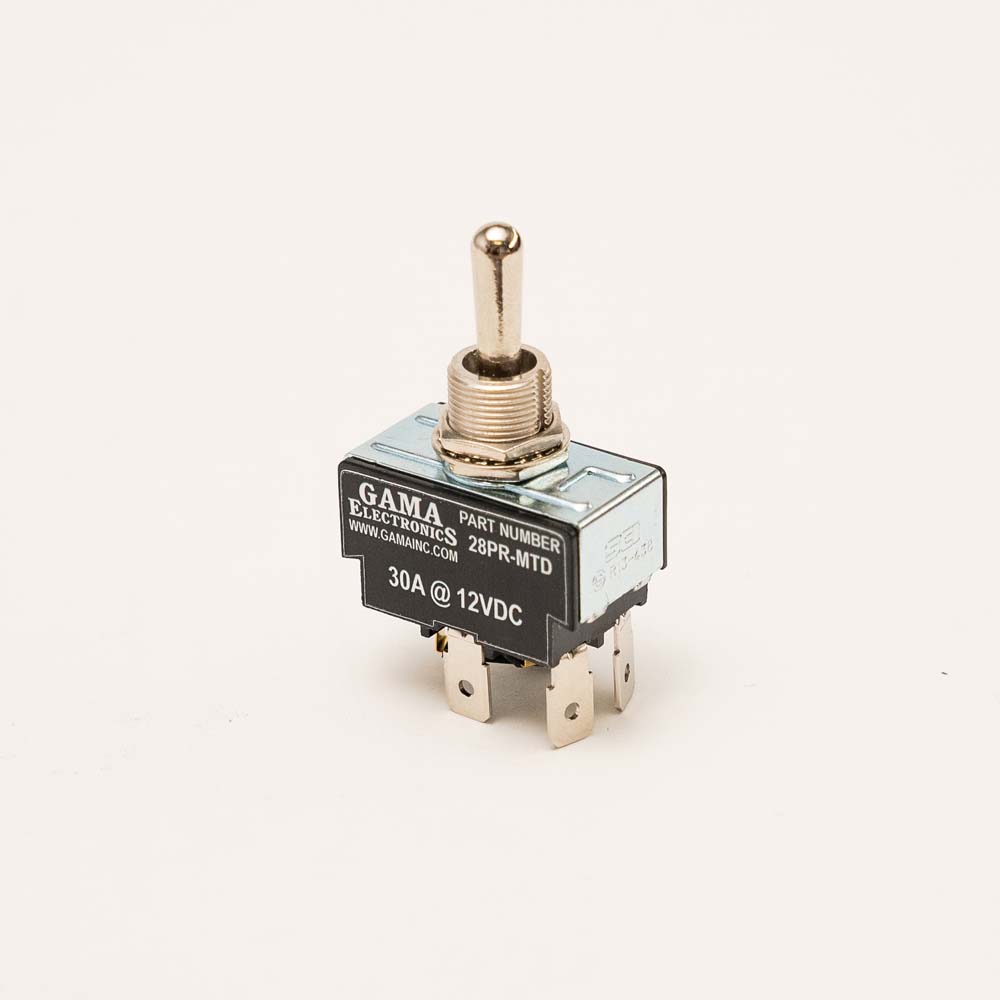

Toggle Switch, 30A Polarity Reversing DC Motor Control – Maintained

30 amp, On-Off-On Toggle Switch. This is a maintained switch meaning it stays locked in the position selected. It comes with built-In jumper bars for polarity reversing. Simply connect power and ground and two DC motor leads and the switch will reverse the motor direction. This heavy duty switch mounts in a .48 diameter hole and it has 1/4 quick connect terminals.

Specifications

  • On-Off-On Polarity Reversing
  • 30A @ 14VDC
  • Mounts in a .48 diameter hole and it has 1/4 quick connect terminals.

Additional information

Switch Type

Standard, Waterproof

Downloads

28PR-MTD Drawing PDF (199 KB)
28PR-MTD Wiring Diagram PDF (665 KB)
